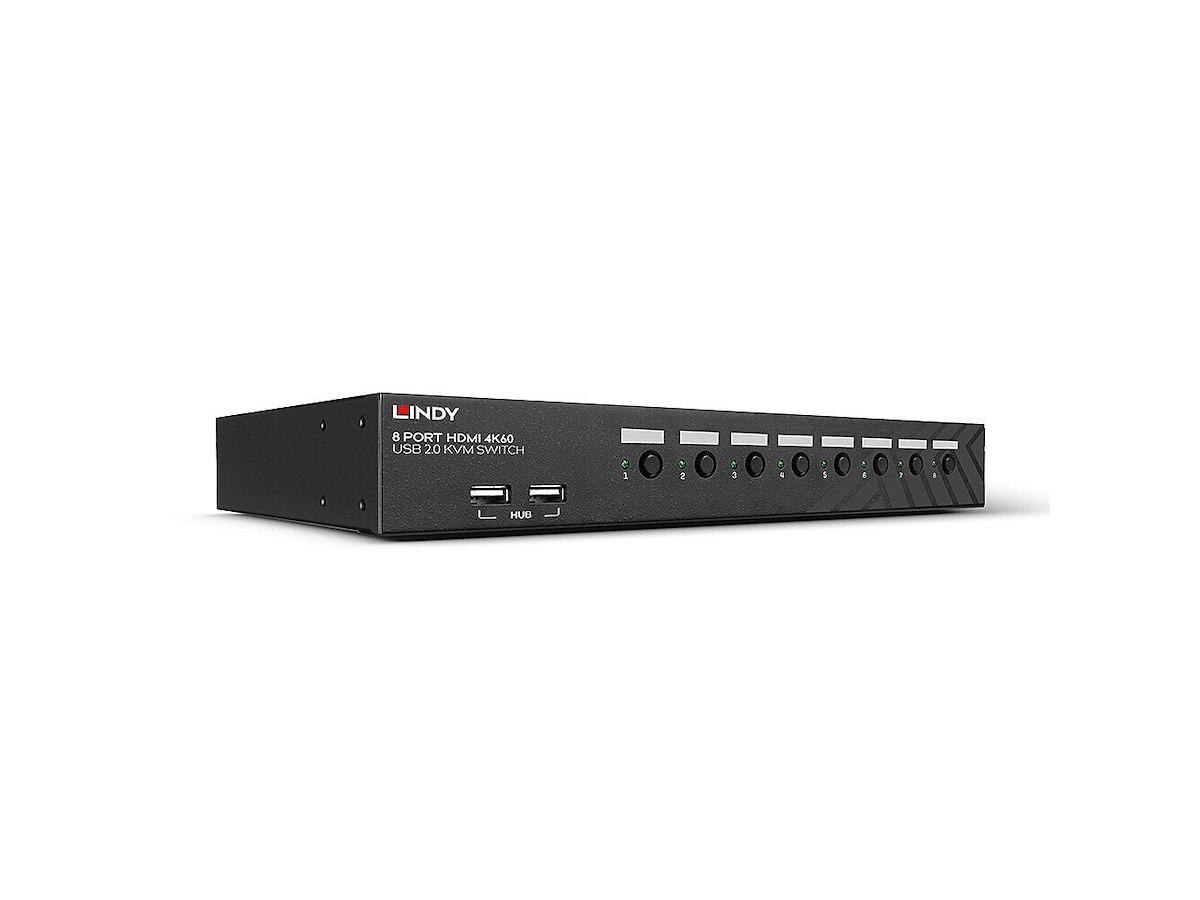

This advanced KVM Switch has been designed for use with PCs and Macs. It features HDMI® video ports and a two port USB 2.0 hub for connecting and sharing peripherals. With audio support, you can also connect speakers or headsets.
The switch occupies only a single 1U space in a 19 rack and supports screen resolutions of up to 4K Ultra HD 60Hz, great for graphical content in gaming setups, video editing or controlling multiple workstations. It provides 3 switching modes, via keyboard hotkeys, front panel buttons and RS-232 commands.
A local console can be connected to the 2 USB and HDMI® ports on the rear panel while the built-in 2 port USB 2.0 hub saves money on requiring additional devices by sharing peripherals between the connected computers. The unique switching arrangement allows the USB hub to be switched independently of the PCs for uninterrupted printing, scanning or external drive access. Options can be accessed only via keyboard hotkeys or RS-232 commands.
LED indicators show the status of the selected channel.
Please Note: connection cables are not included. HDMI®, USB A to B, and 3.5mm audio cables are required for each connected computer. -
Porte & Grænseflader Antal kontrollerede computere 8 Tastatur porttype USB Mus porttype USB Video porttype HDMI Konsol porte HDMI, USB A, 3ˌ5 mm hovedtelefon Antal konsol USB porte 2 Antal HDMI-porte konsol 1 Serie porttype DE-9 (DB-9) Lydforbindelse Ja Præstation HD-type 4K Ultra HD Maksimal opløsning 3840 x 2160 pixel HDCP Ja HDCP-version 2.2 Design Stativ-montering Ja Produktfarve Sort Rackkapacitet 1U Husmateriale Metal Cascadable Ingen Display Indbygget skærm Ja Skærm LED Strømstyring Strømkilde DC Udgangsspænding 9 V Udgangsstrøm 2 A Bæredygtighed Compliance-certifikater CE, Federal Communications Commission (FCC), UKCA, Lov om handelsaftaler (TAA), REACH, RoHS Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 90% Vægt & størrelser Bredde 300 mm Dybde 164 mm Højde 44 mm Vægt 1,79 kg Emballeringsdata Pakkebredde 566 mm Pakkedybde 104 mm Pakkehøjde 245 mm Pakkevægt 2,06 kg Pakketype Kasse Emballage indhold Kabler inkluderet RS-232 Brugervejledning Ja AC-adapter inkluderet Ja Rack monteringskit Ja
