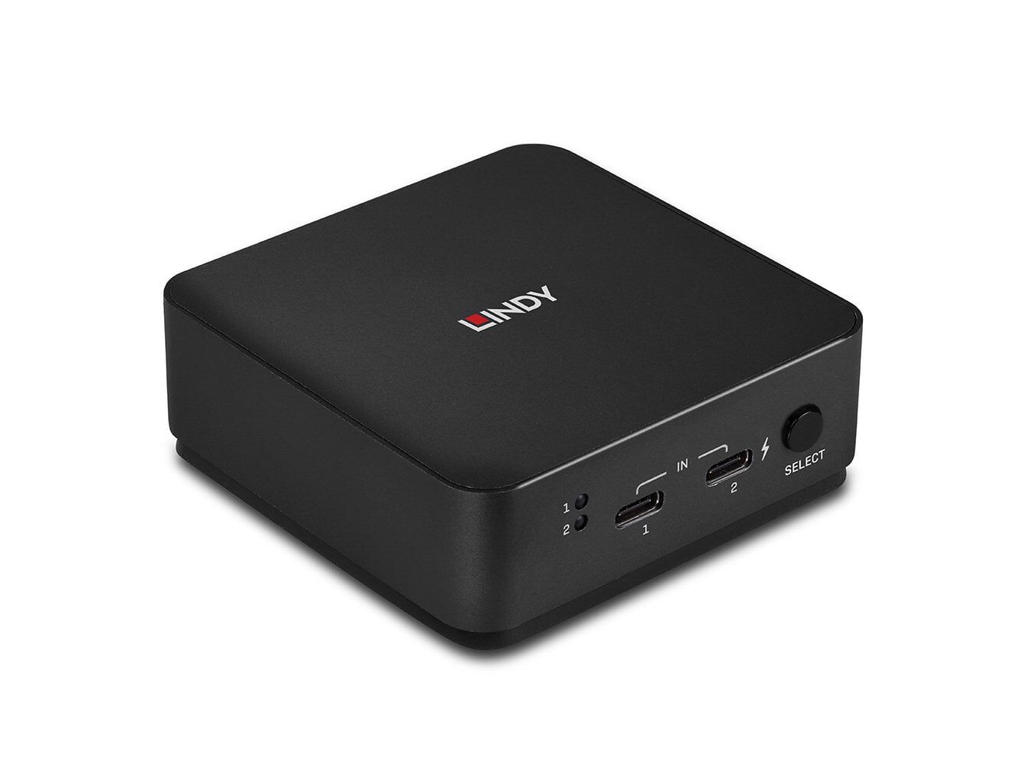

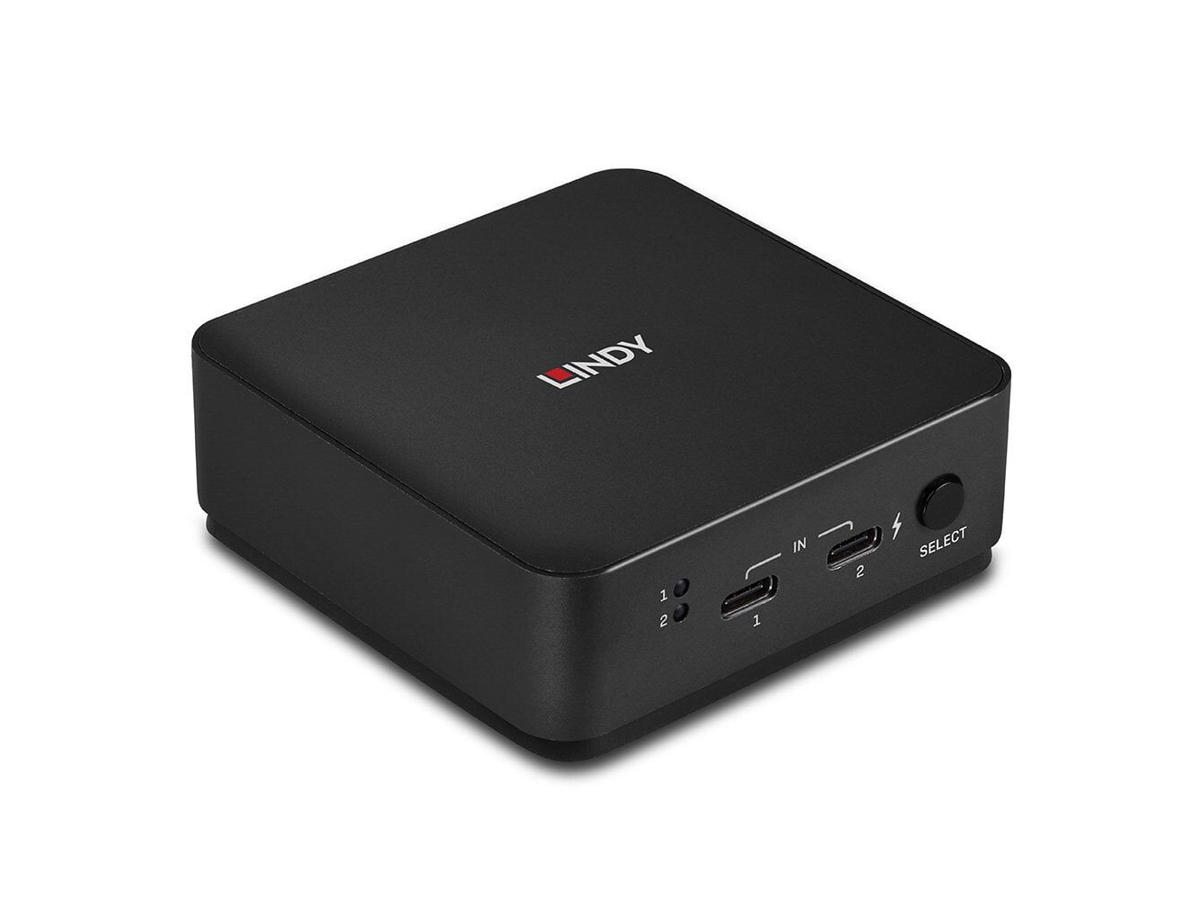

The Lindy 2 Port Type C, Dual HDMI 4K60 KVM Switch is a compact solution for providing access and control over two Type C equipped devices with from a console with keyboard, mouse and two displays. It's an Ideal solution for flexible, plug and play workstations, allowing users to control multiple laptops, or a single laptop and another Type C device such as a mobile phone or tablets with Type C DisplayPort Alt Mode interface.
Support for Ultra HD resolutions up to 4K30Hz connecting both outputs, and 4K60Hz connecting one to ensure optimum image quality, perfect for high fidelity graphics in gaming setups, video editing or dual system control workstations. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts, and a much wider colour gamut. MST and SST functions allow the connection of two displays with extended desktop or in mirror mode while additional USB peripherals can be connected via the 2 ports USB 2.0.
Connecting an additional Type C power supply (optional, not included) ensures host device on port 2 can be powered and charged through the 100W Type C Power Delivery 3.0 input port. Perfect when mains power outlets are in short supply, and improves cable management for minimalist installations.
This device switches automatically when only one active source is connected, while when multiple devices are connected, switching is also possible by pushing the select button on the front panel for simple and reliable control, great for both professional and first-time users.
Please Note: Type C sources must support DisplayPort Alternate mode for video output, smartphones and tablets can only display a mirror image. Fast Role Swap feature is not supported. -
Porte & Grænseflader Antal kontrollerede computere 2 Tastatur porttype USB Mus porttype USB Video porttype HDMI Konsol porte USB C Antal HDMI-porte 2 HDMI-version 2.0 Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte 2 Antal USB 2.0 type-A hub porte 2 USB-stik type USB Type-A, USB Type-C Præstation HD-type 4K Ultra HD Maksimal opløsning 3840 x 2160 pixel Automatisk skift Ja HDCP Ja HDCP-version 2.2 Design Stativ-montering Ingen Produktfarve Grå Husmateriale Metal LED-indikatorer Ja Trykknap Ja Display Indbygget skærm Ingen Strømstyring Strømkilde USB Indgangsspænding 7.5 V USB strømforsyning Ja USB strømforsyning revision 3.0 USB strømforsyning op til 100 W Bæredygtighed Compliance-certifikater CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA Overholdelse af bæredygtighed Ja Driftsbetingelser Driftstemperatur (T-T) 5 - 40 °C Opbevaringstemperatur (T-T) -15 - 60 °C Relativ luftfugtighed ved drift (H-H) 5 - 85% Relativ luftfugtighed ved opbevaring (H-H) 5 - 85% Vægt & størrelser Bredde 78 mm Dybde 78 mm Højde 26,8 mm Vægt 230 g Emballeringsdata Pakkebredde 183 mm Pakkedybde 53 mm Pakkehøjde 138 mm Pakkevægt 330 g Pakketype Kasse Emballage indhold Kabler inkluderet USB Type-C Brugervejledning Ja
