Controls four DVI equipped PCs from a single keyboard, mouse and monitor
Switch via the unit’s push buttons or keyboard hot keys
Supports DVI-I single link signals, up to 1920x1200
Independent audio switching and 2 ports USB 2.0 Hub for sharing additional USB peripherials
2 year warranty
A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.

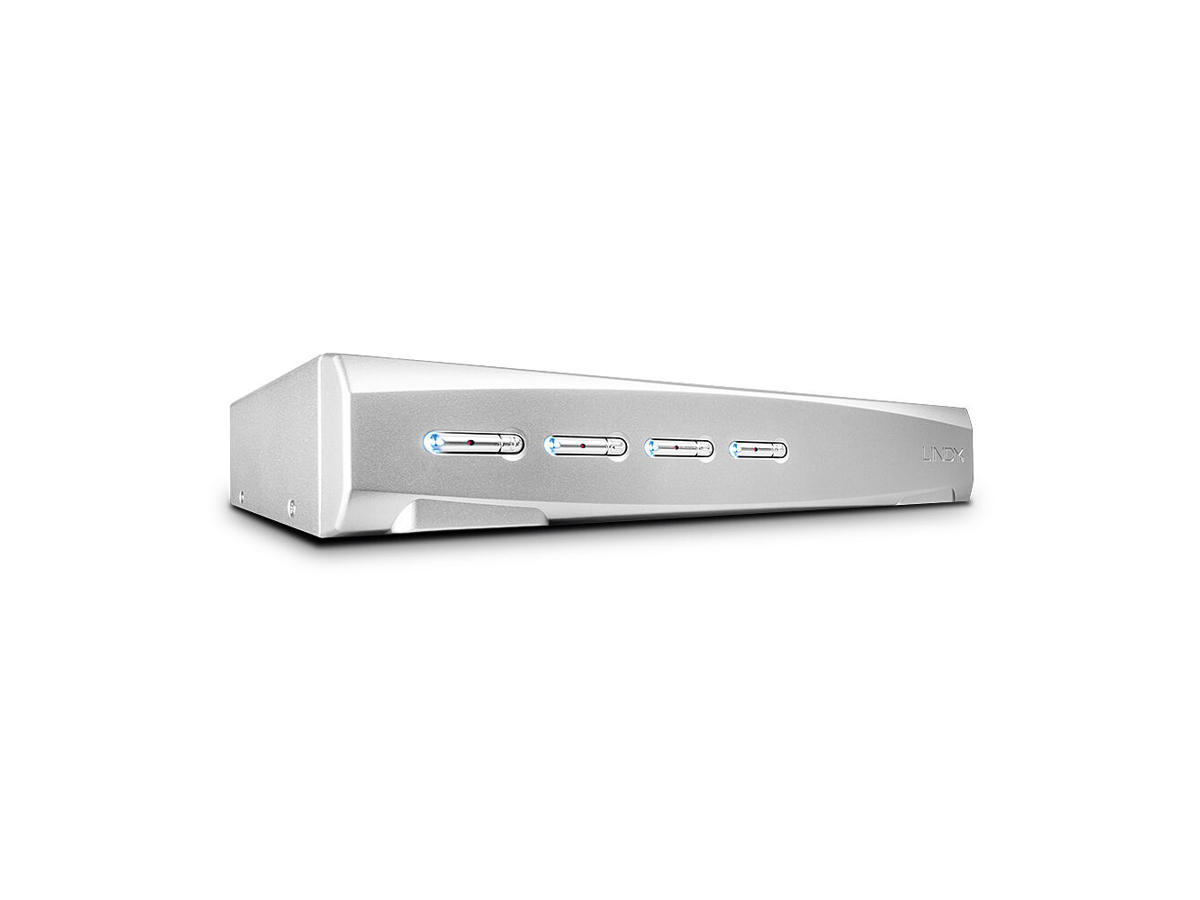

The Lindy 4 Port DVI-I Single Link, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over four DVI equipped PCs from a single keyboard, mouse and monitor.
Supports single link resolutions up to 1920x1200, it can also be used with analogue VGA PCs using adapter cables with support for analogue resolutions up to 2048x1536. The audio output ports on the main unit also allow users to connect headphones or speaker to add immersive 2CH audio and a microphone, while additional USB peripherals can be integrated with the 2 ports USB 2.0 hub. Both audio and USB hubs can be switched independently of the computers allowing you to print from one PC whilst working on another for example.
It supports True Transparent USB switching, an advanced USB emulation technology that allows the KVM to recognise specific keyboard & mouse models and emulate any of their associated special key and function information. This also provides enhanced support for combined use with KVM extenders.
The KVM switch features multiple switching options including push buttons on the unit and configurable hotkeys that provide simple, reliable control for the user, great for both professional and first time users.
Please Note: connection cables are not included. -
Porte & Grænseflader Antal kontrollerede computere 4 Tastatur porttype USB Mus porttype USB Video porttype DVI-I Konsol porte 3ˌ5 mm hovedtelefon, 3.5mm mic, DVI-I, USB A Antal DVI-I-porte 5 Antal USB 2.0 Type-B porte 4 Antal konsol USB porte 2 USB stik Ja Antal USB 2.0 type-A hub porte 2 USB-stik type USB Type-A, USB Type-B Lydforbindelse Ja Udgange til hovedtelefoner 5 Antal mikrofon-indgange 5 DC-in-stik Ja Præstation HD-type Full HD+ Maksimal opløsning 2048 x 1536 pixel Design Produktfarve Sølv Husmateriale Metal, Plast Cascadable Ja Displayknap kontakt Ja Genvejstaster Ja Certificering CE, FCC, REACH Display Indbygget skærm Ingen Strømstyring Strømkilde DC Indgangsspænding 9 V Indgangsstrøm 1.1 A Bæredygtighed Compliance-certifikater RoHS Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 90% Vægt & størrelser Bredde 255 mm Dybde 120 mm Højde 46 mm Vægt 1,25 kg Emballeringsdata Pakkebredde 310 mm Pakkedybde 215 mm Pakkehøjde 65 mm Pakkevægt 1,64 kg Emballage indhold Brugervejledning Ja AC-adapter inkluderet Ja Logistik data Harmoniseret systemkode (HS) 85176200
