A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.

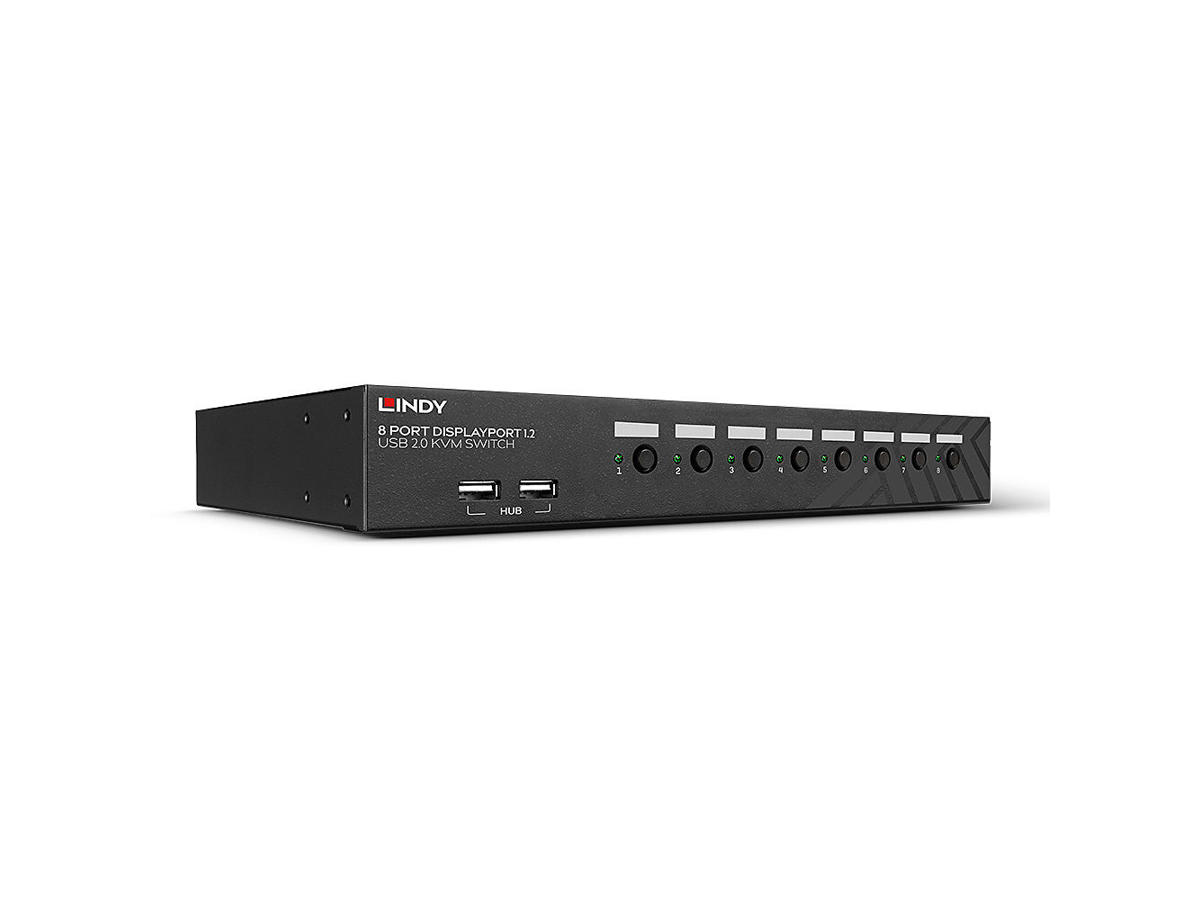

This advanced KVM Switch has been designed for use with PCs and Macs. It features DisplayPort video ports and a two port USB 2.0 hub for connecting and sharing peripherals. With audio support, you can also connect speakers or headsets.
The switch occupies only a single 1U space in a 19andrdquo; rack and supports screen resolutions of up to 4K Ultra HD 60Hz, great for graphical content in gaming setups, video editing or controlling multiple workstations. It provides 2 simple switching modes, via keyboard hotkeys and front panel buttons.
A local console can be connected to the 2 USB and DP ports on the rear panel while the built-in 2 port USB 2.0 hub saves money on requiring additional devices by sharing peripherals between the connected computers. The unique switching arrangement allows the USB hub to be switched independently of the PCs for uninterrupted printing, scanning or external drive access. Options can be accessed only via keyboard hotkeys.
LED indicators show the status of the selected channel.
Please Note: connection cables are not included. DisplayPort, USB A to B, and 3.5mm audio cables are required for each connected computer. The maximum supported distance for USB, using standard cables, is 5m. For distances over 5m, use a Lindy USB Active Extension Cable. MST hubs are not supported. -
Porte & Grænseflader Antal kontrollerede computere 8 Tastatur porttype USB Mus porttype USB Video porttype DisplayPort Konsol porte 3ˌ5 mm hovedtelefon, DisplayPort, USB A Antal DisplayPorts 9 Antal USB 2.0 Type-B porte 8 Antal konsol USB porte 2 Lydforbindelse Ja DC-in-stik Ja Præstation HD-type 4K Ultra HD Maksimal opløsning 3840 x 2160 pixel Video båndbredde 60 Hz Design Stativ-montering Ja Produktfarve Sort Rackkapacitet 1U Strømstyring Udgangsspænding 9 V Udgangsstrøm 2 A Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 5 - 90% Vægt & størrelser Bredde 300 mm Dybde 164 mm Højde 44 mm Vægt 1,53 kg Logistik data Harmoniseret systemkode (HS) 85176200
