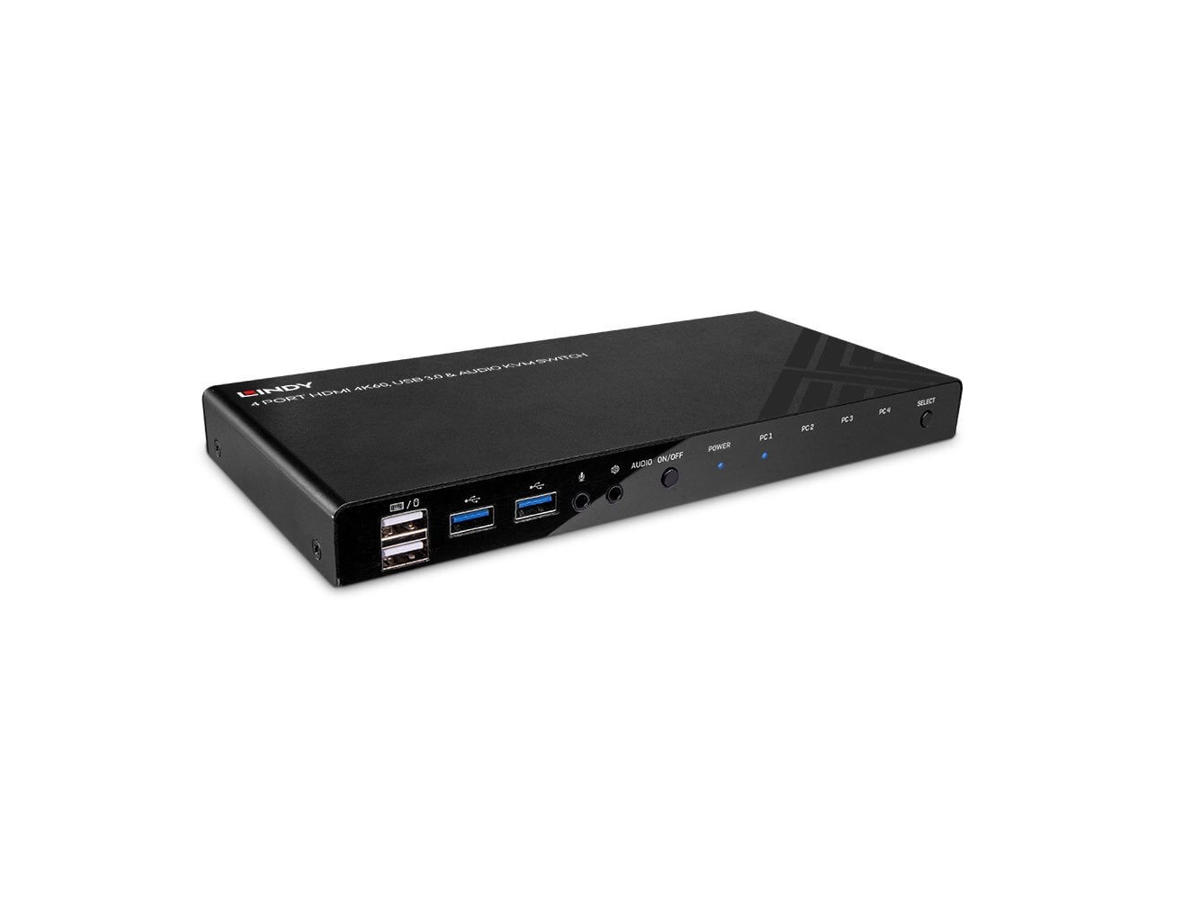

The Lindy 4 Port HDMI 4K60, USB 3.0 and Audio KVM Switch is a compact solution for providing access and control over four HDMI equipped PCs from a single keyboard, mouse and monitor setup.
Support for resolutions up to 4K Ultra HD 60Hz ensures the highest image quality, perfect for demanding graphical content in gaming setups, video editing or quad system control workstations. The additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut. The audio output ports on the main unit also allow users to connect headphones or speakers to add immersive 2CH audio and a microphone, pressing the Audio On/Off button on the front panel mutes these devices. These ports are not connected to the HDMI signal but to a built-in USB converter while two additional USB devices such as printer, scanner or hard drive can be connected to the USB 3.0 ports on the front panel.
The KVM switch features two switching options including push buttons on the unit and keyboard hotkeys provide simple, reliable control for the user, great for both professional and first time users.
| Porte & Grænseflader | |
| Antal kontrollerede computere | 4 |
| Tastatur porttype | USB |
| Mus porttype | USB |
| Video porttype | HDMI |
| Konsol porte | 3ˌ5 mm hovedtelefon, 3.5mm mic, HDMI, USB A |
| Antal HDMI-porte | 5 |
| HDMI-version | 2.0 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-B porte | 4 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 2 |
| Antal konsol USB porte | 4 |
| Antal HDMI-porte konsol | 1 |
| USB-stik type | USB Type-A, USB Type-B |
| Lydforbindelse | Ja |
| Udgange til hovedtelefoner | 1 |
| Antal mikrofon-indgange | 1 |
| DC-in-stik | Ja |
| Præstation | |
| HD-type | 4K Ultra HD |
| Maksimal opløsning | 4096 x 2160 pixel |
| Video båndbredde | 60 Hz |
| HDCP | Ja |
| Lyd kanaler | 2.0 |
| HDCP-version | 2.2 |
| Design | |
| Stativ-montering | Ingen |
| Produktfarve | Sort |
| Husmateriale | Metal |
| LED-indikatorer | Ja |
| Trykknap | Ja |
| Genvejstaster | Ja |
| Display | |
| Indbygget skærm | Ingen |
| Strømstyring | |
| Strømkilde | DC |
| Indgangsspænding | 5 V |
| Indgangsstrøm | 3 A |
| Bæredygtighed | |
| Compliance-certifikater | Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS |
| Overholdelse af bæredygtighed | Ja |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 50 °C |
| Opbevaringstemperatur (T-T) | -10 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 - 80% |
| Relativ luftfugtighed ved opbevaring (H-H) | 5 - 80% |
| Vægt & størrelser | |
| Bredde | 231 mm |
| Dybde | 108 mm |
| Højde | 23 mm |
| Vægt | 710 g |
| Emballeringsdata | |
| Pakkebredde | 292 mm |
| Pakkedybde | 248 mm |
| Pakkehøjde | 55 mm |
| Pakkevægt | 980 g |
| Pakketype | Kasse |
| Emballage indhold | |
| Brugervejledning | Ja |
| AC-adapter inkluderet | Ja |
