Product Overview

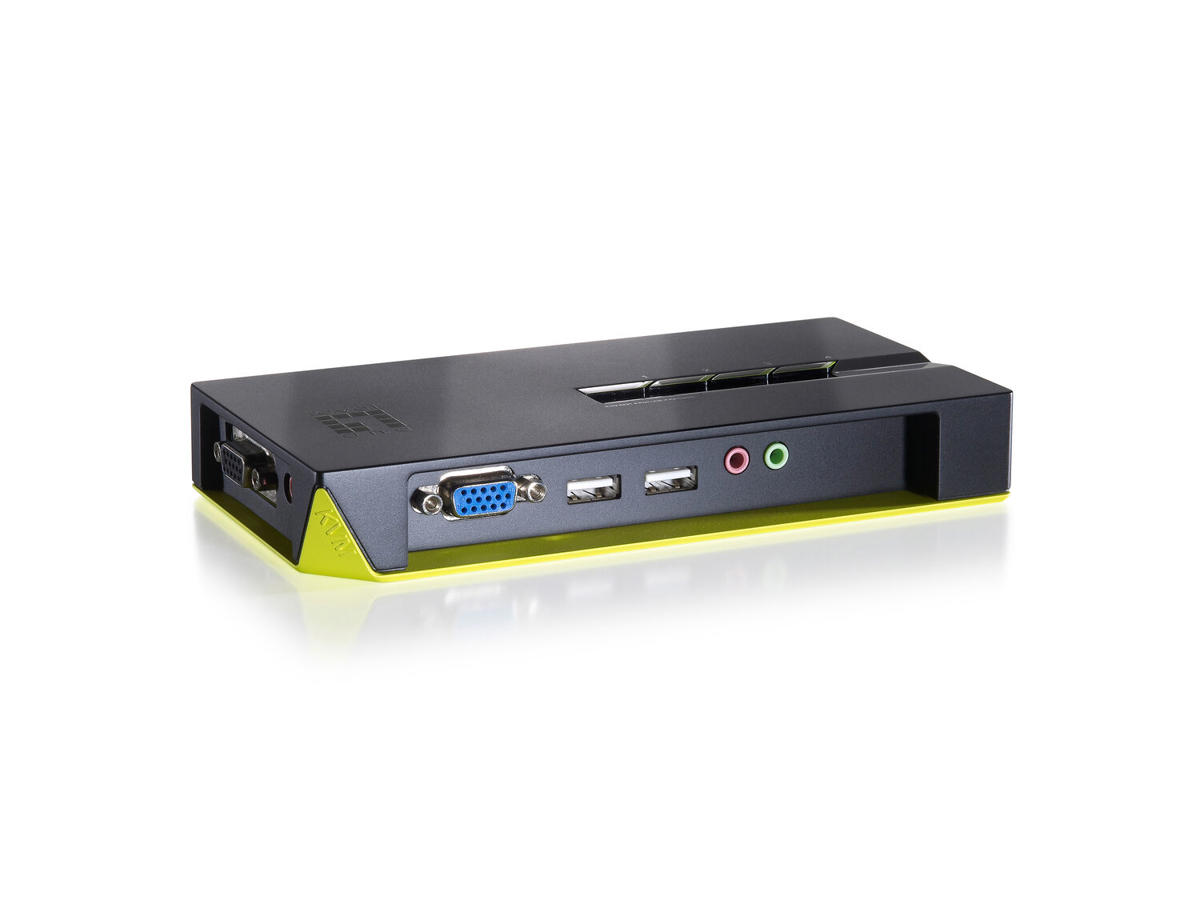

The KVM-0421 4-Port USB KVM Switch with Audio from LevelOne offers users with an easy to install KVM switch that can manage four computers from a single monitor, keyboard and mouse. With audio support, users can connect a single set of speakers directly to the KVM switch and enjoy listening to music and watching movies from whichever computer without switching cables.
It allows users to access, control, boot and reboot four USB-enabled multimedia computers using a single USB keyboard, mouse and monitor and a speaker set and microphone.
Flexible Multimedia Feature
Users are now offered with flexible multimedia support. The KVM-0421 offers users with user-programmable simultaneous or independent PC and audio switching. This enables users to listen to music from one computer while simultaneously using the other computers for work or fun.
The KVM-0421 supports PC and Macintosh (MAC G3, G4, iMAC) platforms.
One Keyboard, Mouse and Monitor controlling Two Computers
The LevelOne KVM-0421 connects four computer systems to a single USB keyboard, USB mouse and monitor. The 4-Port USB KVM Switch also provides audio support allowing users to connect the audio ports of each computer to the KVM switch.
The KVM-0421 is a Plug-and-Play KVM switch that requires no power supply and no additional software installation. Users simply connect the KVM switch to the USB mouse and keyboard and screen ports on each computer as well as the audio ports by using the included cables.
Easy to Switch between Computers
The KVM-0421 switches between computers either through the pushbuttons located on the switch or by using keyboard hot keys. The KVM switch includes a Windows® and Mac based utility allowing users to select and monitor active PCs from their desktop as well as to configure the keyboard hotkeys for easy switching between computers.
The KVM-0421 further supports hot-plugging for easy maintenance of computers without shutting down the KVM switch or the computer. The LED display offers an “at-a-glance” status display for easy computer activity assessment.
- Flexible switching for an uninterrupted multi-media experience across multi-platforms
- Control and manage four computers using a single USB keyboard and mouse and monitor
- Simultaneous and independent PC and Audio user-programmable switching
- High 2048 x 1536 pixels VGA resolution
- USB interface power supply
- Easy switching between computers with keyboard hotkeys push button and software selection
- At-a-glance LED display for easy monitoring of PC activity
- True Plug-and-Play operation without any software installation or power supply
- Windows-based switching software utility included -
Porte & Grænseflader Antal kontrollerede computere 4 Tastatur porttype USB Mus porttype USB Video porttype VGA Konsol porte 3ˌ5 mm hovedtelefon, 3.5mm mic, USB A, VGA (D-Sub) Antal VGA-porte (D-sub) 4 Antal konsol USB porte 2 Antal USB 2.0-porte 4 USB-stik type USB Type-A Lydforbindelse Ja Udgange til hovedtelefoner 8 Antal mikrofon-indgange 8 Præstation Maksimal opløsning 2048 x 1536 pixel Skanningsinterval 25,35,45,55,50,40,10,15,20,30,60 sek./side Design Produktfarve Sort, Grøn LED-indikatorer Ja Display Indbygget skærm Ingen Strømstyring USB-drevet Ja Systemkrav Understøttede Windows-operativsystemer Ja Understøttede Mac-operativsystemer Ja Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 72 mm Dybde 164 mm Højde 26 mm Vægt 116 g Emballeringsdata Pakkebredde 195 mm Pakkedybde 85 mm Pakkehøjde 370 mm Pakkevægt 1,84 kg Emballage indhold Kabler inkluderet Lyd (3ˌ5 mm), KVM Hurtig installationsvejledning Ja Brugervejledning Ja Logistik data Harmoniseret systemkode (HS) 85176200 Oprindelsesland Kina
