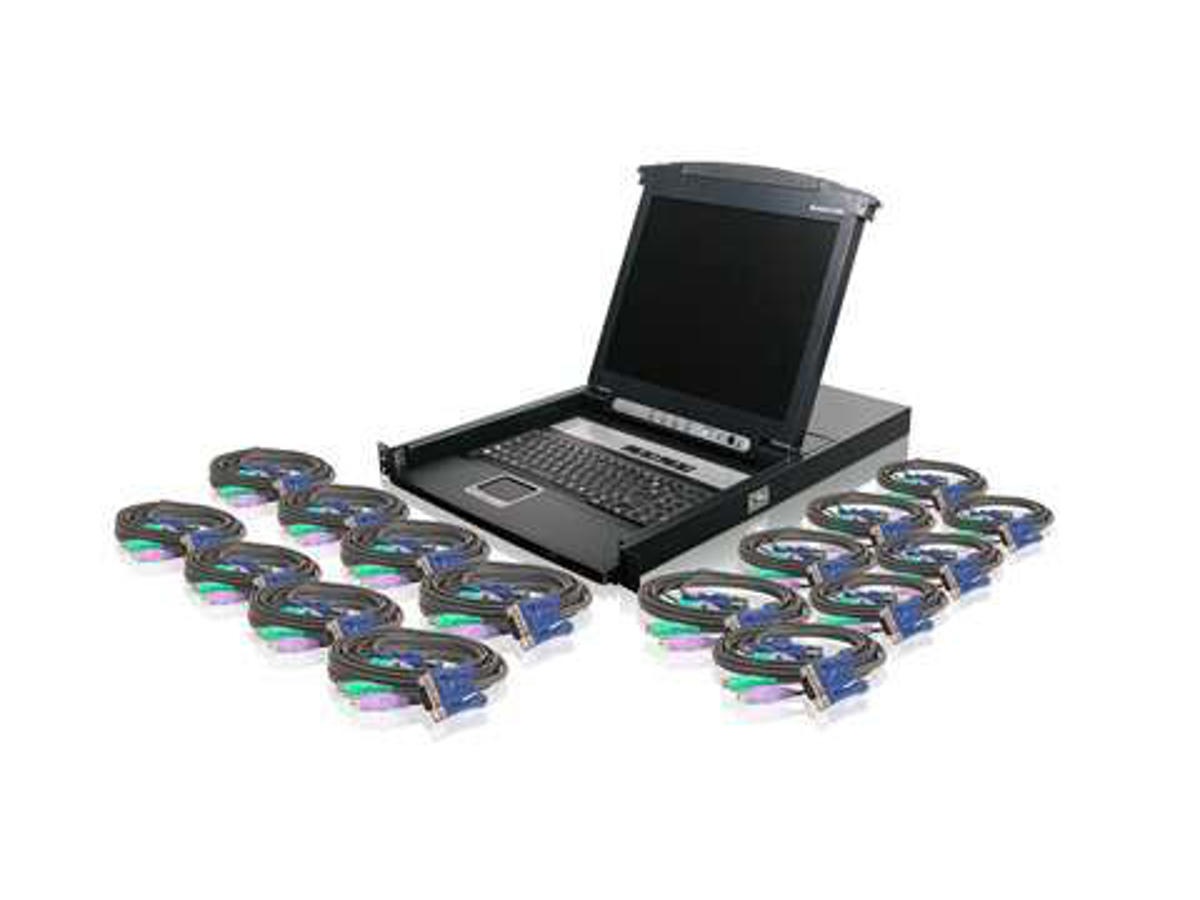

IOGEAR’s GCL1816KITP is an integrated LCD console and 16 port KVM (keyboard, video, and mouse) switch with bundled PS/2 KVM cables that offers secure access to 16 VGA, PS/2 computers. It features a convenient rack mountable sliding / retractable 17" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. For added convenience it also supports an external USB mouse. An extra USB / PS/2 console port is provided on the rear panel to manage the LCD KVM switch from an external console (monitor, keyboard, and mouse). All this in a universal 1U rack mount space.
The GCL1816KITP supports both PS/2 and USB keyboards and mice for the connected computers, and the GCL1816KITP supports USB** peripheral devices to be used for system upgrades with the attached computers. A single GCL1816KITP can control up to 16 computers. As many as 16 additional compatible KVM switches can be cascaded to reach up to 256 computers* controlled from a single keyboard, monitor, and mouse console with easy computer switching via front LED pushbuttons, OSD, and hotkeys.
| Porte & Grænseflader | |
| Antal kontrollerede computere | 16 |
| Tastatur porttype | USB, PS/2 |
| Mus porttype | USB, PS/2 |
| Video porttype | VGA |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte | 0 |
| Netværk | |
| Ethernet LAN | Ingen |
| Ethernet LAN-porte (RJ-45) | 0 |
| Præstation | |
| Maksimal opløsning | 1280 x 1024 pixel |
| Skanningsinterval | 255 sek./side |
| Design | |
| Produktfarve | Sort |
| Husmateriale | Metal, Plast |
| LED-indikatorer | Ja |
| Display | |
| Indbygget skærm | Ja |
| Strømstyring | |
| Indgangsspænding | 100-240 V |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Strømforbrug (typisk) | 28 W |
| Bæredygtighed | |
| Compliance-certifikater | RoHS |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
| Vægt & størrelser | |
| Bredde | 482,6 mm |
| Dybde | 635 mm |
| Højde | 44,5 mm |
| Emballage indhold | |
| Kabler inkluderet | Vekselstrøm, PS/2, USB |
| Andre funktioner | |
| Forbindelsesteknologi | Ledningsført |
| Strømforsyningstype | AC |
