iogear GCL1816 KVM Switch Stativ-montering Grå
Varenummer: GCL1816
.
DKK 14.675,00 / Stk
DKK 11.740,00 ekskl. moms
  •
iogear GCL1816. Tastatur porttype: USB, PS/2, Mus porttype: USB, PS/2, Video porttype: VGA. Maksimal opløsning: 1280 x 1024 pixel, Skanningsinterval: 255 sek./side. Produktfarve: Grå, Rackkapacitet: 1U. Skærm: LCD. Strømforbrug (typisk): 28 W


Mere information

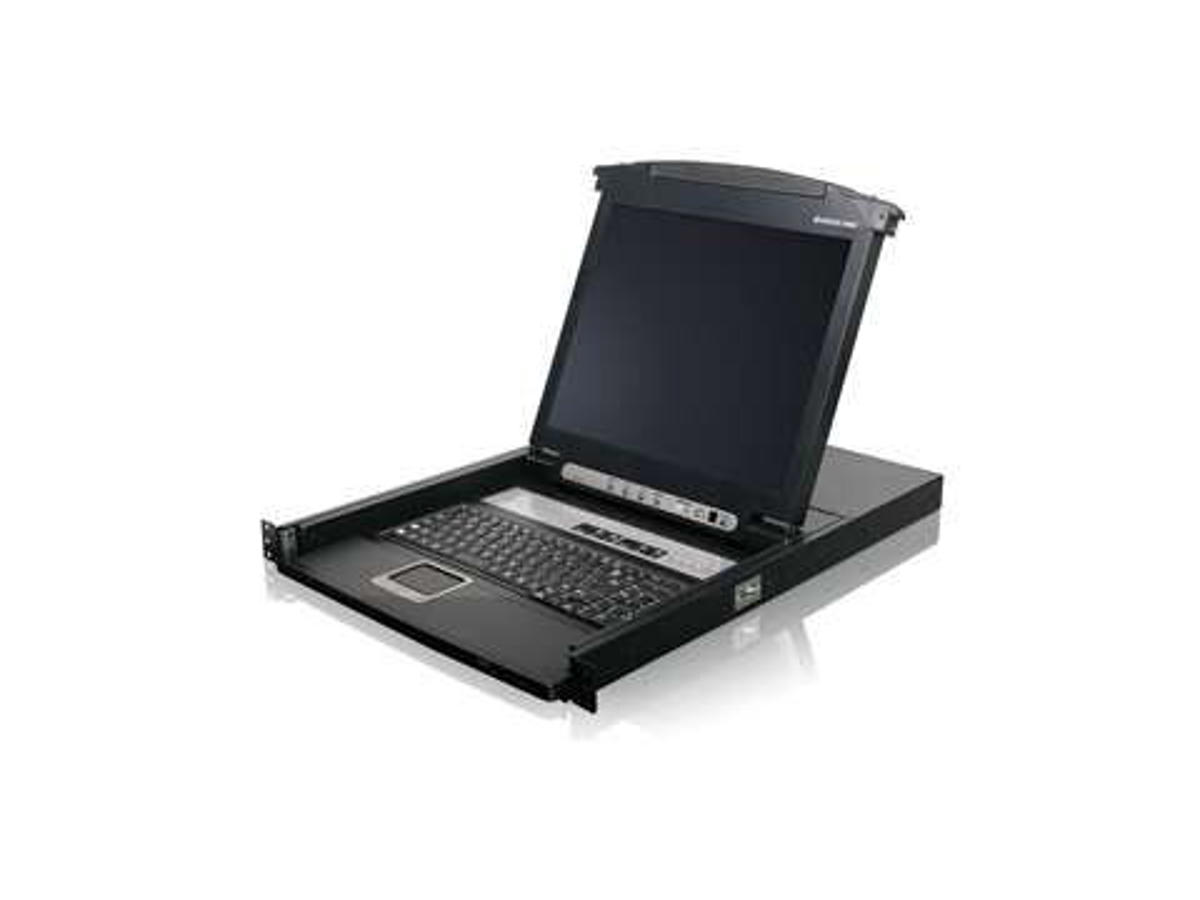

  • IOGEAR’s GCL1816 is an integrated LCD console with 16 port KVM (keyboard, video, and mouse) switch that offers secure access to 16 VGA, USB or PS/2 computers. It features a convenient rack mountable sliding / retractable 17" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. For added convenience it also supports an external USB mouse. An extra USB / PS/2 console port is provided on the rear panel to manage the LCD KVM switch from an external console (monitor, keyboard, and mouse). All this in a universal 1U rack mount space. The GCL1816 supports both PS/2 and USB keyboards and mice for the connected computers, and the GCL1816 supports USB peripheral devices to be used with the attached computers. A single GCL1816 can control up to 16 computers. As many as 16 additional compatible KVM switches can be cascaded to reach up to 256 computers controlled from a single keyboard, monitor, and mouse console. Benefits: - Increases space, productivity, and provides as an energy cost savings solution - It contributes to a greener environment by reducing the amount of waste generated by multiple components - An easy / efficient way to organize and streamline a growing or expanding server operation Features: - Integrated 16-port KVM console featuring a 17" TFT LCD active matrix monitor, keyboard and touchpad - 1280 x 1024 resolution on 17" rack mount LCD provides a sharp video display - Adjustable depth to fit different sizes of racks - Multi platform OS support - Windows, Mac, Sun Solaris, and Linux - Easy to operate - computer selection via front panel pushbutton LED’s, intuitive OSD (on screen display), and hotkeys - External USB mouse port for convenience - External USB or PS/2 with VGA Console port - USB media port support for attached USB computers (system upgrades, etc) - Cascade up to 2 levels - control up to 256 computers from a single console - Security - 2 level password protection for OSD - DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor - Rack mountable in a 19" (1U) system rack - Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation - Fully Supports DDC2B

  • Porte & Grænseflader
    Antal kontrollerede computere 16
    Tastatur porttype USB, PS/2
    Mus porttype USB, PS/2
    Video porttype VGA
    DC-in-stik Ja
    Præstation
    Maksimal opløsning 1280 x 1024 pixel
    Skanningsinterval 255 sek./side
    Design
    Stativ-montering Ja
    Produktfarve Grå
    Rackkapacitet 1U
    LED-indikatorer Ja
    Display
    Skærm LCD
    Strømstyring
    Strømforbrug (typisk) 28 W
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 40 °C
    Opbevaringstemperatur (T-T) -20 - 60 °C
    Relativ luftfugtighed ved drift (H-H) 0 - 80%
    Vægt & størrelser
    Vægt 13,2 kg
    Emballeringsdata
    Pakkebredde 679,5 mm
    Pakkedybde 723,9 mm
    Pakkehøjde 139,7 mm
    Pakkevægt 20,1 kg
    Emballage indhold
    Kabler inkluderet USB
    Andre funktioner
    Forbindelsesteknologi Ledningsført
    Dimensioner (BxDxH) 482,6 x 635 x 44,45 mm
    Porte, antal 16
    Kompatible operativsystemer Windows, Mac, Sun Solaris, Linux
    Effektkrav 1A
    I/O-porte 1 x SPHD-18 (M) 1 x HDB-15 (F) 1 x USB Type A (F) 1 x RJ-11 (F) 16 x SPHD-15 (F)
