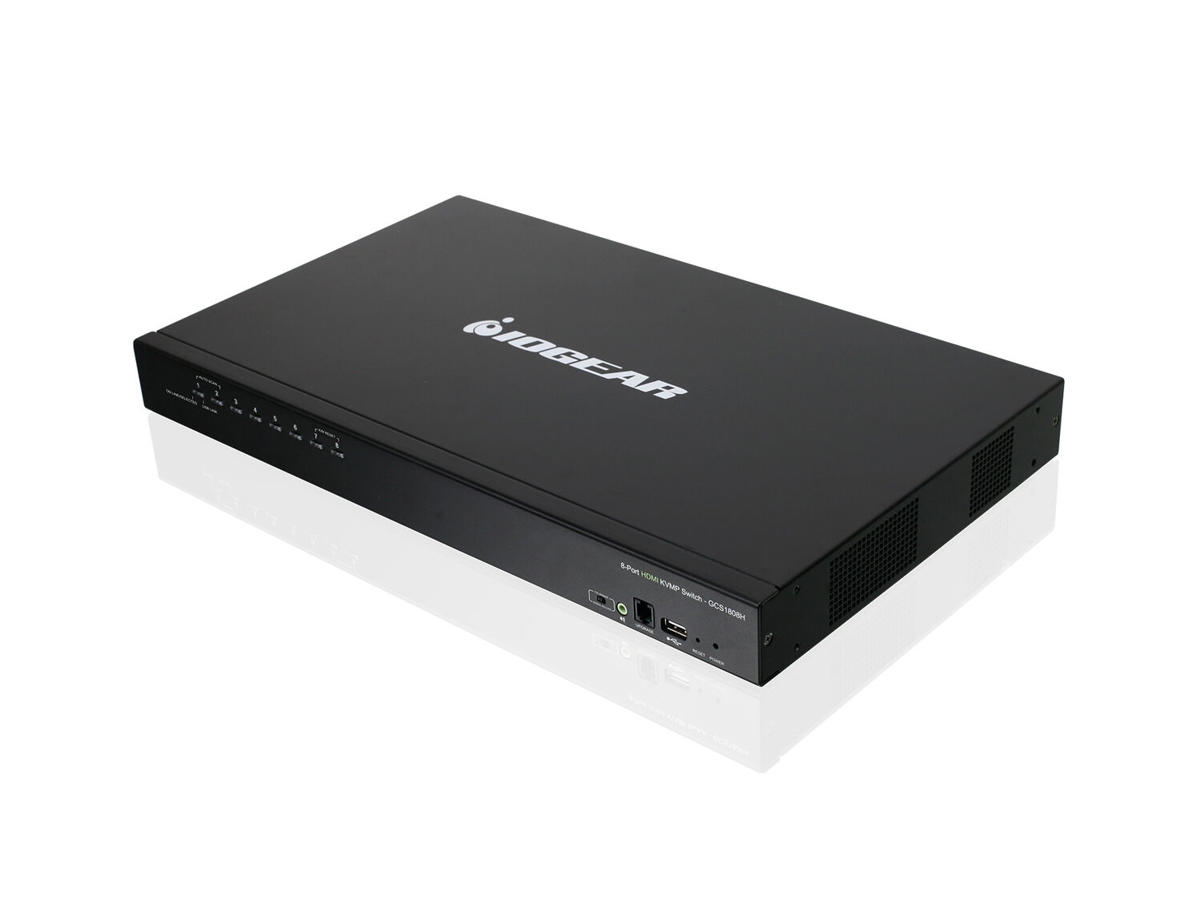

iogear GCS1808H KVM Switch Stativ-montering Sort
Varenummer: GCS1808H
.
DKK 7.275,00 / Stk
DKK 5.820,00 ekskl. moms
  •
iogear GCS1808H. Tastatur porttype: USB, Mus porttype: USB, Video porttype: HDMI. HD-type: Fuld HD, Maksimal opløsning: 1920 x 1200 pixel, Video båndbredde: 60 Hz. Produktfarve: Sort, Rackkapacitet: 1U, Husmateriale: Metal. Strømkilde: DC, DC indgangsspænding: 5 V, Strømforbrug (typisk): 12,2 W. Understøttede Windows-operativsystemer: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Understøttede Mac-operativsystemer: Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10...


Mere information

  • 8-Port HDMI KVMP Switch IOGEAR's 8-port USB HDMI KVMP Switch allows you to control and access up to 8 computers from a single USB keyboard, USB mouse, and an HDMI monitor console. Experience high definition video resolution to 1080p (1920 x 1200) while sharing USB 2.0 peripherals and listening to 2.1 stereo surround sound. Expanded Connectivity IOGEAR's 8-Port USB HDMI KVMP Switch is designed to control up to 512 computers by cascading three levels of the GCS1808H. The built-in USB 2.0 hub allows peripheral sharing between the connected system and is backwards compatible with USB 1.1. Administrators can easily broadcast messages, announcements, firmware updates, or notifications to all connected sources. EDID Support IOGEAR's Video DynaSync™ technology optimizes the display resolution by reading and remembering the monitor's parameters (EDID) so there is no delay or change in video resolution when switching between, or booting computers. Simple Switching Methods Easily switch between connected computers by either manually pressing the front panel push-buttons, entering hotkey combinations from the keyboard, or via the On-Screen Display (OSD) system. The KVM's convenient Auto-Scan feature permits automatic scanning and monitoring of activities on all connected devices. 2.1 Surround Sound This 8-port HDMI KVMP switch provides 2.1 audio support allowing you to enjoy stereo surround sound through connected speakers. Multi-Display Setup Enhance productivity and view all connected sources on up to eight displays by stacking eight (8) IOGEAR GCS1808H together.

  • Porte & Grænseflader
    Antal kontrollerede computere 8
    Tastatur porttype USB
    Mus porttype USB
    Video porttype HDMI
    Konsol porte 3,5 mm hovedtelefon, HDMI, USB A
    Antal HDMI-porte 9
    Antal USB 2.0 Type-B porte 8
    Antal konsol USB porte 2
    Antal USB 2.0 type-A hub porte 2
    USB-stik type USB Type-A
    Lydforbindelse Ja
    Udgange til hovedtelefoner 10
    DC-in-stik Ja
    Præstation
    HD-type Fuld HD
    Maksimal opløsning 1920 x 1200 pixel
    Video båndbredde 60 Hz
    Skanningsinterval 1,255 sek./side
    HDCP Ja
    Daisy kæde Ja
    Design
    Stativ-montering Ja
    Produktfarve Sort
    Rackkapacitet 1U
    Husmateriale Metal
    Cascadable Ja
    LED-indikatorer Ja
    Display
    Indbygget skærm Ingen
    Skærmvisning (OSD) Ja
    Strømstyring
    Strømkilde DC
    DC indgangsspænding 5 V
    Strømforbrug (typisk) 12,2 W
    Systemkrav
    Understøttede Windows-operativsystemer Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista
    Understøttede Linux-operativsystemer Ja
    Understøttede Mac-operativsystemer Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 50 °C
    Opbevaringstemperatur (T-T) -20 - 60 °C
    Relativ luftfugtighed ved drift (H-H) 0 - 80%
    Vægt & størrelser
    Bredde 431,8 mm
    Dybde 254 mm
    Højde 44,5 mm
    Vægt 3,52 kg
    Emballeringsdata
    Pakkebredde 501,7 mm
    Pakkedybde 133 mm
    Pakkehøjde 323,9 mm
    Pakkevægt 5,18 kg
    Emballage indhold
    Kabler inkluderet KVM
    Hurtig installationsvejledning Ja
    AC-adapter inkluderet Ja
    Rack monteringskit Ja
    Logistik data
    Hovedkassens bredde (udvendigt) 520 mm
    Hovedkassens længde (udvendigt) 431,8 mm
    Hovedkassen højde (udvendigt) 355,6 mm
    Hovedkassens bruttovægt (udvendigt) 15,8 kg
    Produkter pr. hovedkasse (udvendigt) 3 stk
