DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio

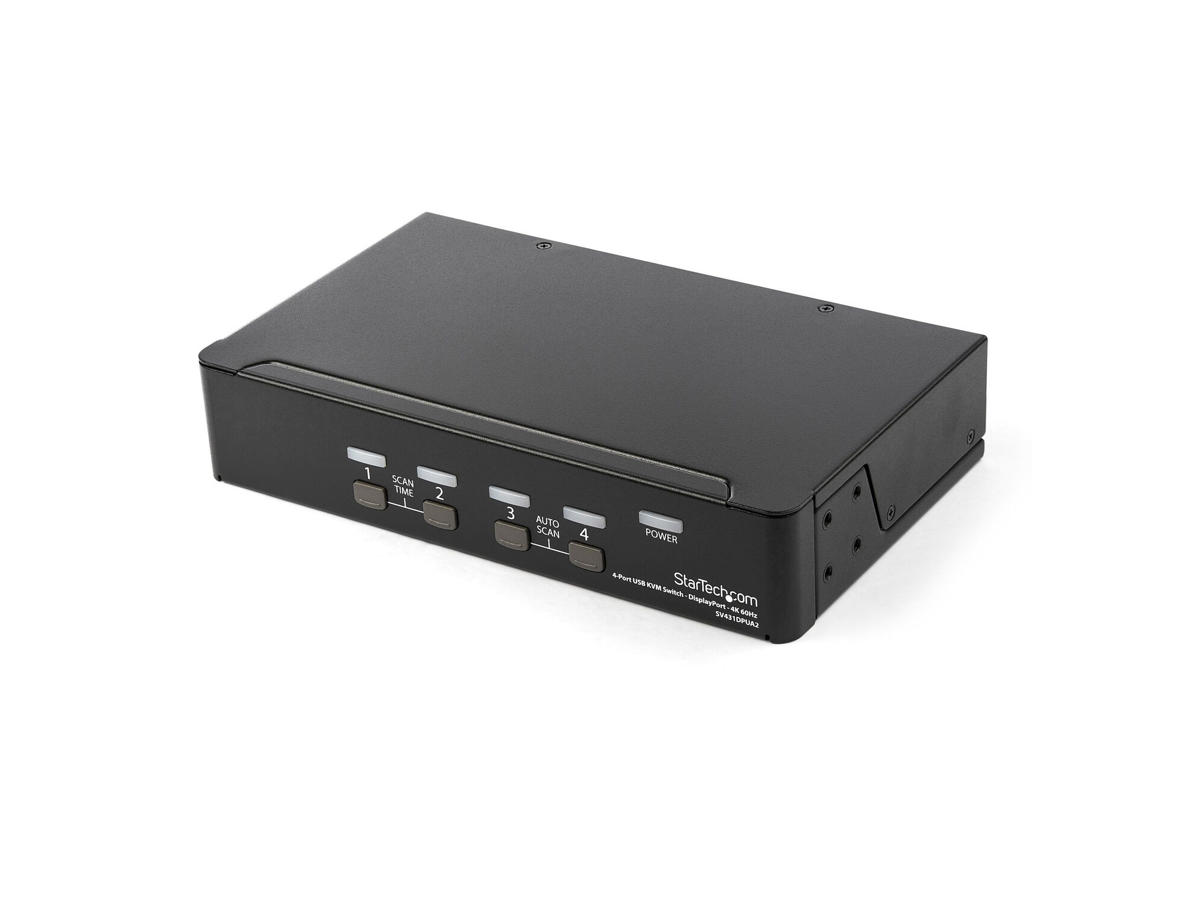

This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.
PC and Mac Compatible
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.
Simple to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Porte & Grænseflader | |
| Antal kontrollerede computere | 4 |
| Tastatur porttype | USB |
| Mus porttype | USB |
| Video porttype | DisplayPort |
| Konsol porte | 3ˌ5 mm hovedtelefon, 3.5mm mic, DisplayPort, USB A |
| Antal DisplayPorts | 5 |
| Antal USB 2.0 Type-B porte | 4 |
| Antal konsol USB porte | 4 |
| Lydforbindelse | Ja |
| Udgange til hovedtelefoner | 5 |
| Antal mikrofon-indgange | 5 |
| DC-in-stik | Ja |
| Netværk | |
| Ethernet LAN | Ingen |
| Præstation | |
| HD-type | 4K Ultra HD |
| Maksimal opløsning | 3840 x 2160 pixel |
| Dataoverførselshastighed (maks.) | 0,48 Gbit/sek. |
| Skanningsinterval | 3,8,15,30 sek./side |
| Plug and play | Ja |
| Daisy kæde | Ingen |
| Antal brugere | 1 bruger(e) |
| Design | |
| Stativ-montering | Ja |
| Produktfarve | Sort |
| Rackkapacitet | 1U |
| Husmateriale | Stål |
| LED-indikatorer | Ja |
| Genvejstaster | Ja |
| Gennemsnitstid mellem fejl (MTBF) | 138327 t |
| Certificering | CE, FCC, TAA, REACH |
| Display | |
| Skærmvisning (OSD) | Ja |
| Strømstyring | |
| Indgangsspænding | 100 - 240 V |
| Indgangsstrøm | 0.6 A |
| Udgangsspænding | 12 V |
| Udgangsstrøm | 1,5 A |
| Strømforbrug (typisk) | 18 W |
| Ekstern strømadapter | Ja |
| Strømstiktype | Type M |
| Kompatible strømplug typer | AU, EU, JP, UK, US |
| Bæredygtighed | |
| Compliance-certifikater | RoHS |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -10 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 40% |
| Vægt & størrelser | |
| Bredde | 131 mm |
| Dybde | 220 mm |
| Højde | 45 mm |
| Vægt | 1 kg |
| Emballeringsdata | |
| Pakkebredde | 212 mm |
| Pakkedybde | 409 mm |
| Pakkehøjde | 87 mm |
| Pakkevægt | 1,6 kg |
| Emballage indhold | |
| Hurtig installationsvejledning | Ja |
| AC-adapter inkluderet | Ja |
| Gummifødder | Ja |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176200 |
| Hovedkassens bredde (udvendigt) | 433 mm |
| Hovedkassens længde (udvendigt) | 545 mm |
| Hovedkassen højde (udvendigt) | 258 mm |
| Produkter pr. hovedkasse (udvendigt) | 6 stk |
| Andre funktioner | |
| Understøttelse af lyd | Ja |
| IP kontrol | Ingen |
