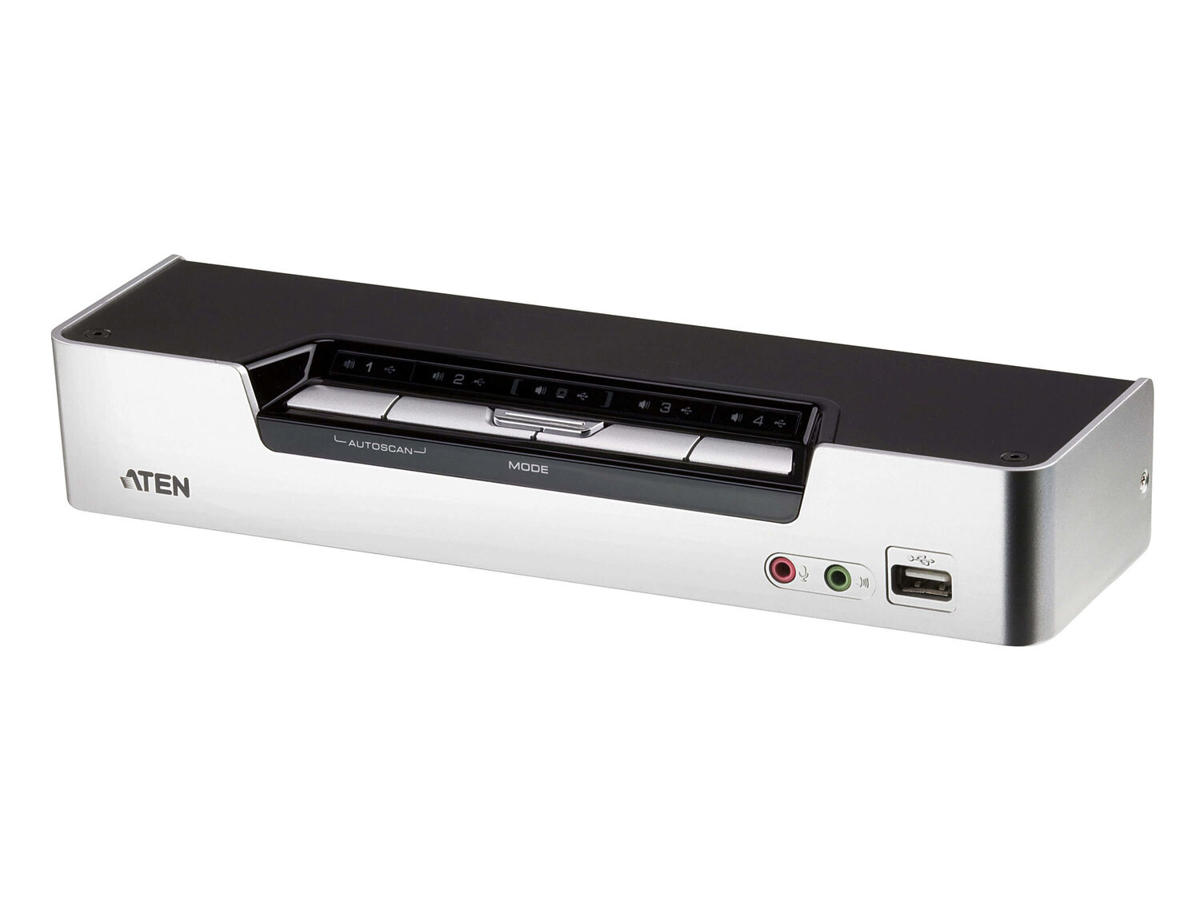

ATEN CS1794 KVM Switch Stativ-montering Sort, Rustfrit stål
Varenummer: CS1794
.
DKK 2.287,50 / Stk
DKK 1.830,00 ekskl. moms
  •
ATEN CS1794. Tastatur porttype: USB, Mus porttype: USB, Video porttype: HDMI. HD-type: WUXGA, Maksimal opløsning: 1920 x 1200 pixel, Skanningsinterval: 1,99 sek./side. Produktfarve: Sort, Rustfrit stål, Rackkapacitet: 1U, Husmateriale: Metal, Plast. Strømkilde: DC, DC indgangsspænding: 5.3 V, Strømforbrug (typisk): 4,8 W. Bæredygtighedscertifikater: RoHS


Mere information

  • With the unique design and innovative features, the CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment.

    Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.

    Ideal for multimedia applications in the office, the CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.

  • Porte & Grænseflader
    Antal kontrollerede computere 4
    Tastatur porttype USB
    Mus porttype USB
    Video porttype HDMI
    Konsol porte 3,5 mm hovedtelefon, 3.5mm mic, HDMI, USB A
    Antal HDMI-porte 5
    Antal konsol USB porte 2
    Antal USB 2.0-porte 4
    USB-stik type USB Type-A, USB Type-B
    Lydforbindelse Ja
    Udgange til hovedtelefoner 6
    Antal mikrofon-indgange 6
    DC-in-stik Ja
    Præstation
    HD-type WUXGA
    Maksimal opløsning 1920 x 1200 pixel
    Skanningsinterval 1,99 sek./side
    HDCP Ja
    Strøm ved registrering Ja
    Firmware kan opgraderes Ja
    Design
    Stativ-montering Ja
    Produktfarve Sort, Rustfrit stål
    Rackkapacitet 1U
    Husmateriale Metal, Plast
    LED-indikatorer Ja
    Trykknap Ja
    Genvejstaster Ja
    Display
    Indbygget skærm Ingen
    Skærmvisning (OSD) Ingen
    Strømstyring
    Strømkilde DC
    DC indgangsspænding 5.3 V
    Strømforbrug (typisk) 4,8 W
    Systemkrav
    Understøttede Windows-operativsystemer Ja
    Understøttede Linux-operativsystemer Ja
    Understøttede Mac-operativsystemer Ja
    Bæredygtighed
    Bæredygtighedscertifikater RoHS
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 50 °C
    Opbevaringstemperatur (T-T) -20 - 60 °C
    Relativ luftfugtighed ved drift (H-H) 0 - 80%
    Vægt & størrelser
    Bredde 262,3 mm
    Dybde 76,8 mm
    Højde 44 mm
    Vægt 530 g
    Logistik data
    Harmoniseret systemkode (HS) 85176200
