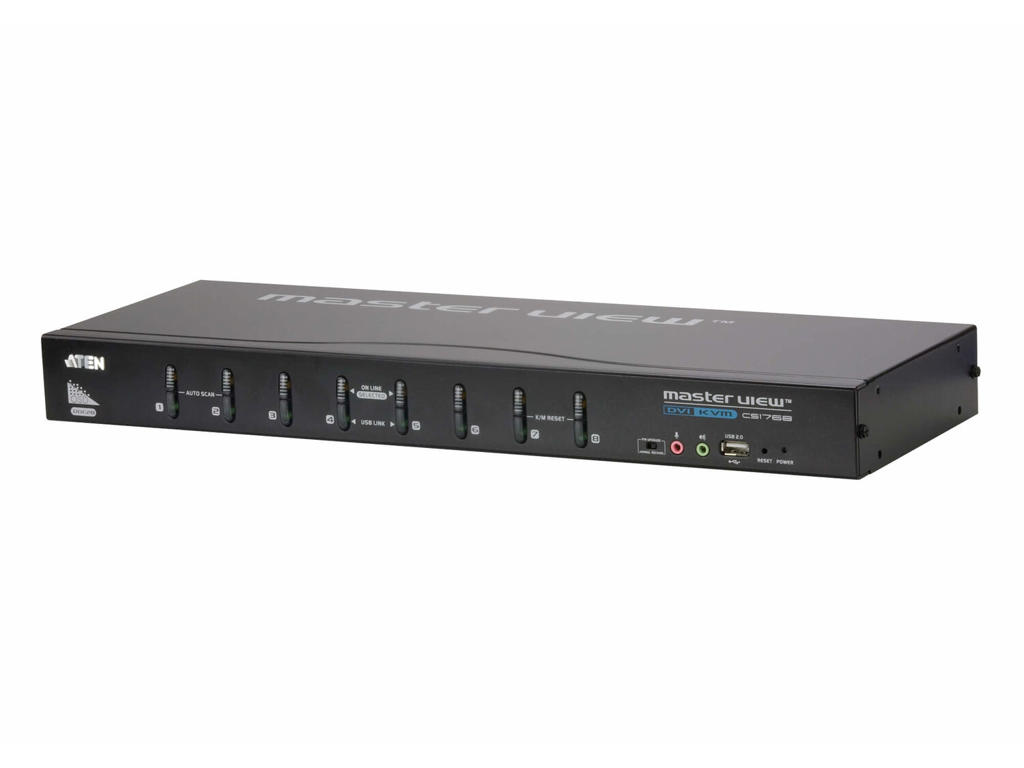

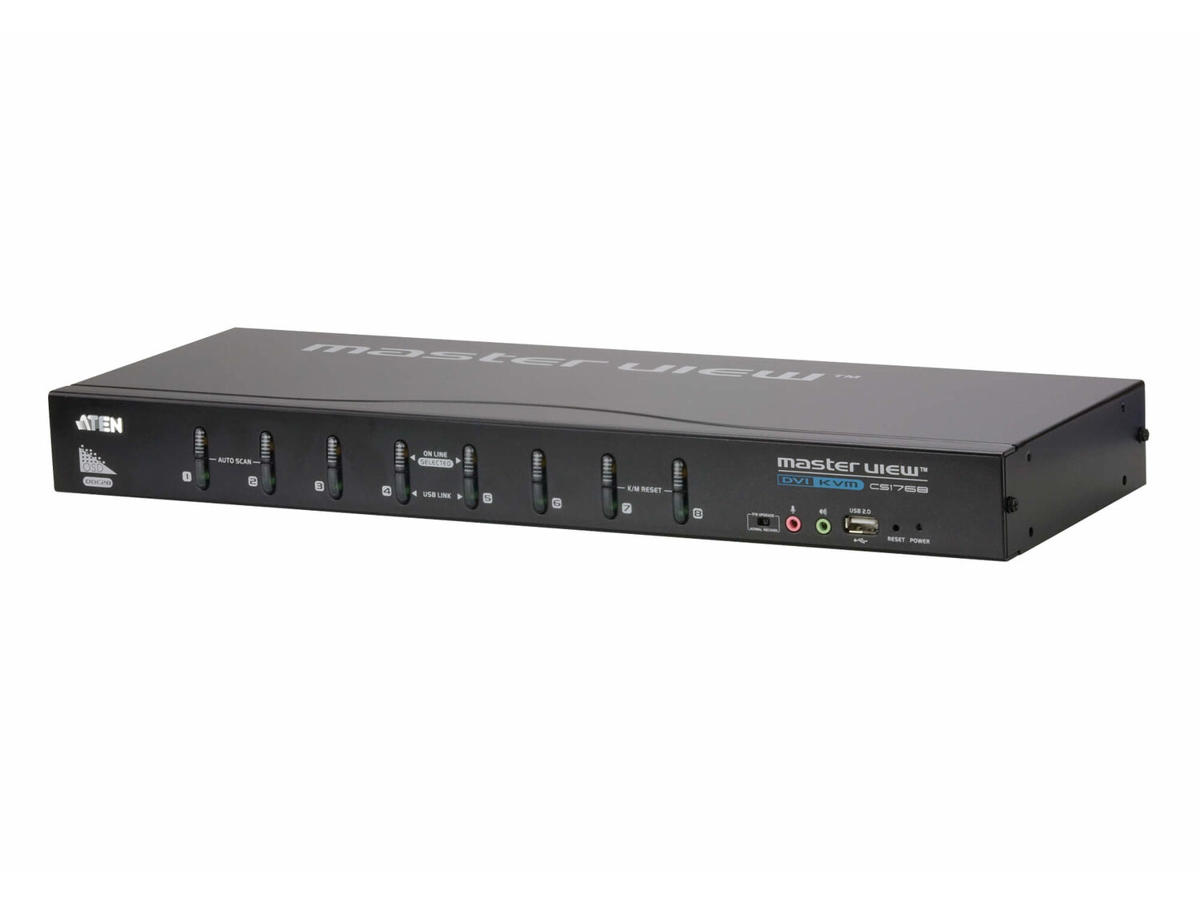

The CS1768 8-port USB DVI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console.
It can be cascaded to three levels – allowing up to 73 CS1768s to control up to 512 computers – all from the original single console, making it ideal for industry-grade IT applications and management.
In addition, the CS1768 features multi-display functionality, which enables the use of standard USB cables to stack up to four switches for quad-displaying in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.
Furthermore, the CS1768 comes with ATEN’s on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD configuration back up/restore to save/ back up the OSD settings and restore them as needed.
The CS1768 provides multimedia keyboard support and is audio enabled. Two microphones can provide audio input to each of the computers, and you can listen to the audio output of each computer on two sets of speakers (on a one-at-a-time basis). -
Porte & Grænseflader Antal kontrollerede computere 8 Tastatur porttype USB Mus porttype USB Video porttype DVI-I Antal HDMI-porte 0 Antal DVI-D-porte 0 Antal DVI-I-porte 8 Antal VGA-porte (D-sub) 1 Antal USB 2.0-porte 10 Udgange til hovedtelefoner 8 Antal mikrofon-indgange 8 Præstation Maksimal opløsning 2048 x 1536 pixel Maksimal digital opløsning 1920 x 1200 pixel Maksimal analog opløsning 2048 x 1536 pixel Skanningsinterval 255 sek./side Design Produktfarve Blå Husmateriale Metal LED-indikatorer Ja Certificering TW I220489, CN ZL 02824593.8, DE 202004004227.4, JP 4558319, JP 4651633, TW 203183, TW I220476, TW I285828, US 6934398, US 6957287, US 7047344, US 7269265, US 7340556, US 7472217 RoHS Strømstyring Strømforbrug (typisk) 3,76 W Bæredygtighed Compliance-certifikater RoHS Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 161,1 mm Dybde 437,2 mm Højde 44 mm Vægt 2,8 kg Emballage indhold Kabler inkluderet KVM Hurtig installationsvejledning Ja Brugervejledning Ja AC-adapter inkluderet Ja Andre funktioner Forbindelsesteknologi Ledningsført Porte, antal 8 Kompatible operativsystemer Windows, Linux, Mac, Sun Logistik data Harmoniseret systemkode (HS) 85176200
