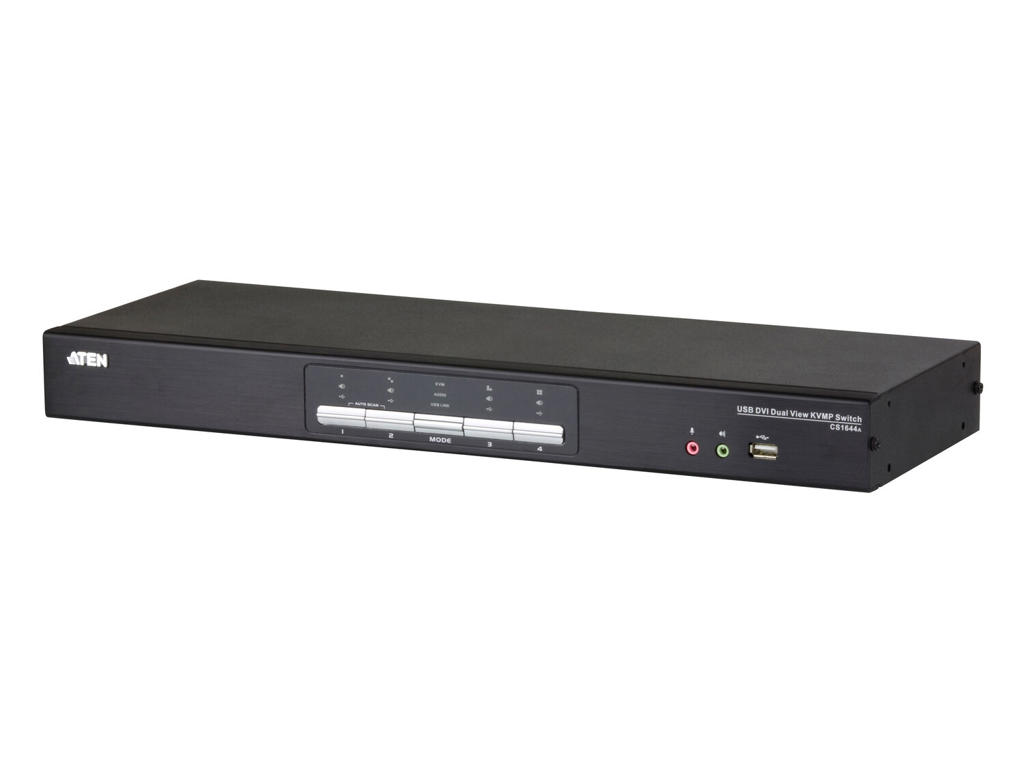

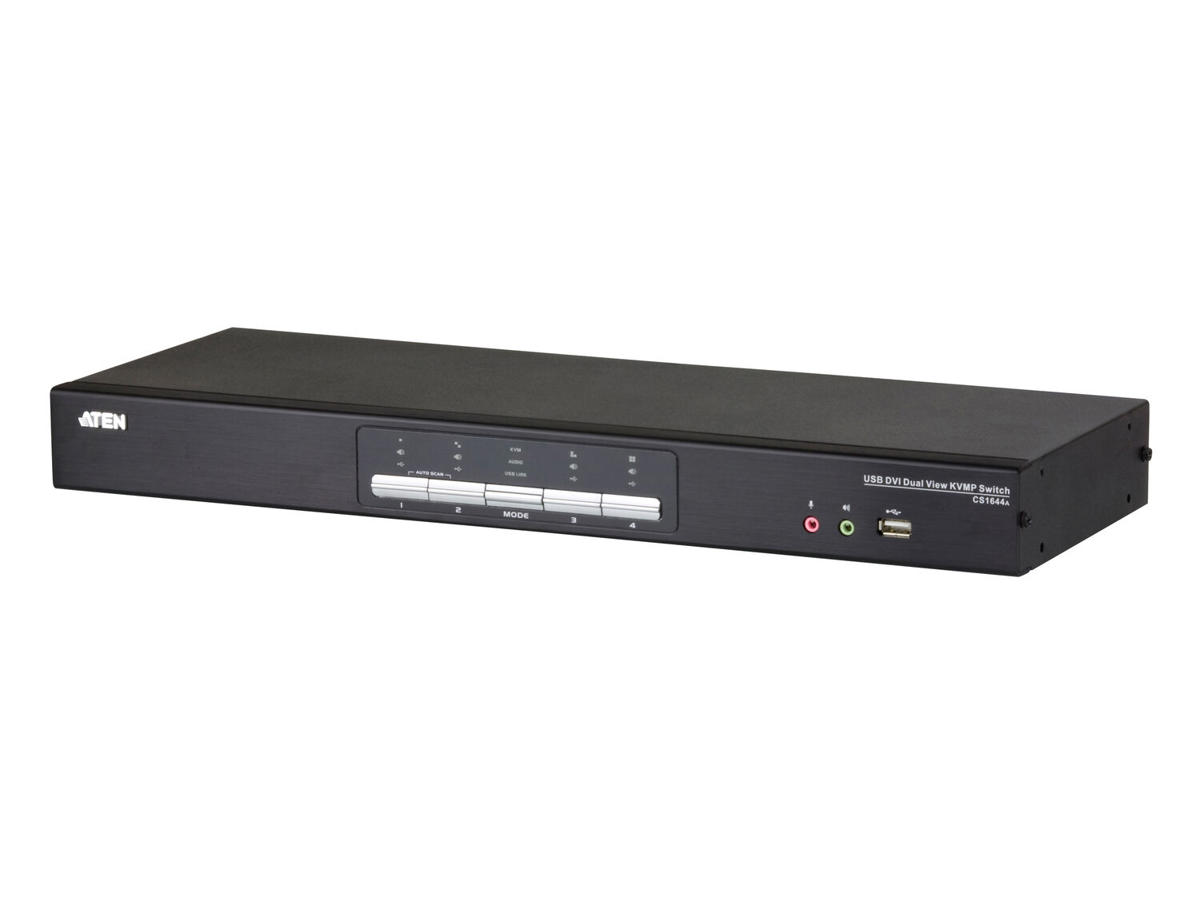

The CS1644A 4-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 4-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.
The new CS1644A features multi-view capabilities, which allow two switches to be daisy chained for a dual, triple, or quadview display across multi-monitor installations. The CS1644A supports advanced nVidia 3D Vision ready 120Hz 3D displaying,allowing you to manage various 3D visual effects. It allows you to manipulate all connected computers from a single console to save resources and work space. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it ideal for users who need delicate visual effects and multi-tasking on several computers. The CS1644A is perfect for graphic designers, banking and financial consultants, gamers and medical professionals- demanding a high quality switch that provides stunning color, clarity and functionality.
| Porte & Grænseflader | |
| Antal kontrollerede computere | 4 |
| Tastatur porttype | USB |
| Mus porttype | USB |
| Video porttype | DVI-I |
| Konsol porte | 3ˌ5 mm hovedtelefon, 3.5mm mic, DVI-I, USB A |
| Antal DVI-I-porte | 10 |
| Antal konsol USB porte | 2 |
| USB-stik type | USB Type-A |
| Lydforbindelse | Ja |
| Udgange til hovedtelefoner | 4 |
| Antal mikrofon-indgange | 4 |
| DC-in-stik | Ja |
| Netværk | |
| Ethernet LAN-porte (RJ-45) | 1 |
| Præstation | |
| Maksimal opløsning | 2560 x 1600 pixel |
| Video båndbredde | 60 Hz |
| Skanningsinterval | 1,99 sek./side |
| HDCP | Ja |
| Design | |
| Stativ-montering | Ja |
| Produktfarve | Sort |
| Rackkapacitet | 1U |
| Husmateriale | Metal, Plast |
| Trykknap | Ja |
| Genvejstaster | Ja |
| Display | |
| Indbygget skærm | Ingen |
| Strømstyring | |
| Strømkilde | DC |
| Indgangsspænding | 5.3 V |
| Strømforbrug (typisk) | 12,19 W |
| Systemkrav | |
| Understøttede Windows-operativsystemer | Ja |
| Understøttede Linux-operativsystemer | Ja |
| Understøttede Mac-operativsystemer | Ja |
| Andre understøttede operativsystemer | FreeBSD |
| Bæredygtighed | |
| Compliance-certifikater | RoHS |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 50 °C |
| Opbevaringstemperatur (T-T) | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
| Vægt & størrelser | |
| Bredde | 437,2 mm |
| Dybde | 159,8 mm |
| Højde | 44 mm |
| Vægt | 2,32 kg |
| Emballage indhold | |
| Kabler inkluderet | KVM |
| Brugervejledning | Ja |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176200 |
