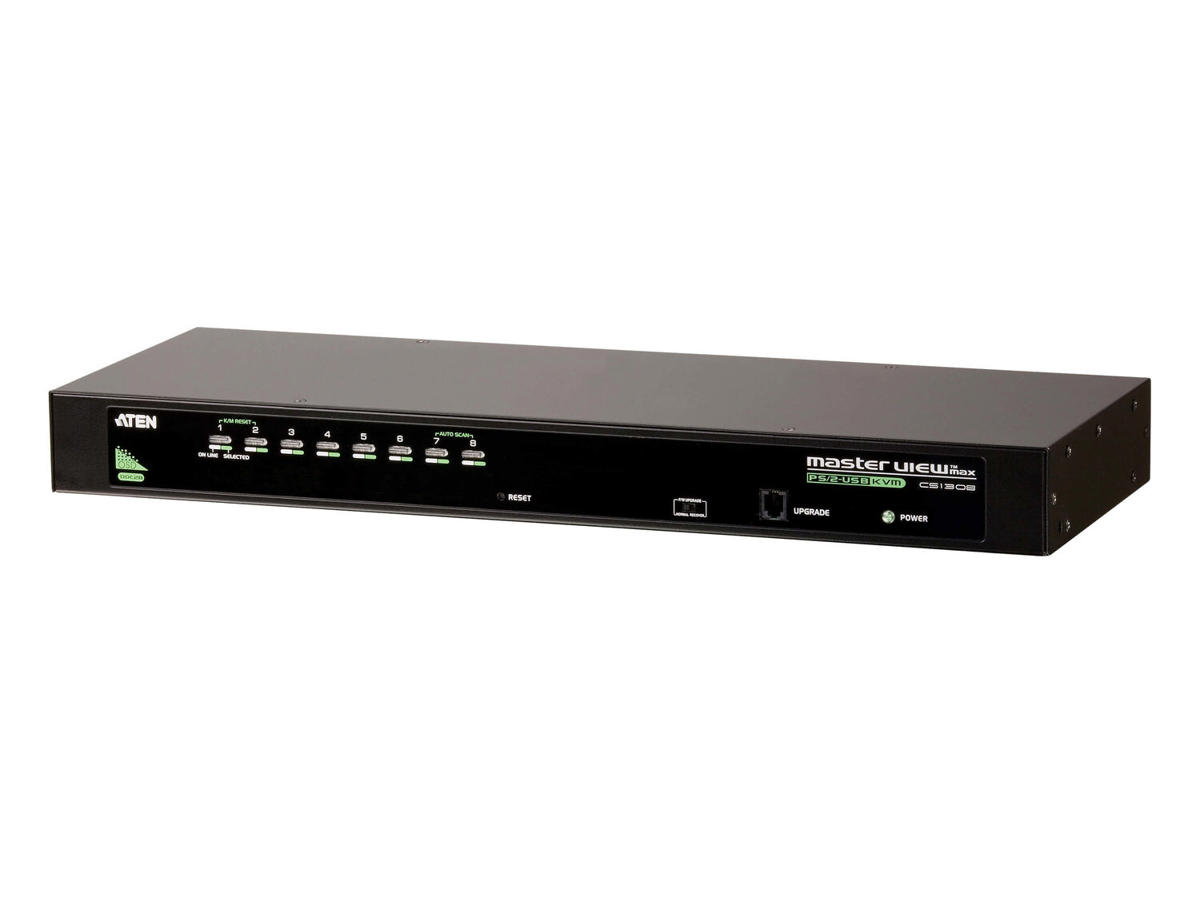

CS1308 KVM-switch ger tillgång och kontroll för upp till 64 datorer från en enda konsol (tangentbord, mus och bildskärm). Så många som 8 extra switchar kan kaskadkopplas* innebär att det totala antalet anslutna datorer till 64 datorer som kan styras från ett enda tangentbord-skärm-mus-konsol. Switchen har stöd för både USB och PS/2 anslutningar för konsolen och datorer. • One USB-PS/2 console controls 8 computers
• Cascade up to 2 levels, which only works with USB KVM cable set connections, control up to 64 computers
• Dual Interface - supports computers with PS/2 or USB keyboards and mice
• Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
• Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
• Supports USB keyboards for PC, Mac and Sun
• Auto PS/2 and USB interface detection
• USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
• Superior video quality - up to 2048 x 1536; DDC2B
• Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
• Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each computer
• Auto Scan feature for monitoring user-selected computers
• Hot pluggable - add or remove computers without having to power down the switch
• Buzzer on/off via hotkey and OSD
• Firmware upgradeable
• No software installation required
• Designed for desktop or rack mount (19" system rack, 1U) -
Porte & Grænseflader Antal kontrollerede computere 8 Tastatur porttype Ingen Mus porttype Ingen Video porttype VGA Antal HDMI-porte 0 Antal DVI-D-porte 0 Antal DVI-I-porte 0 Antal VGA-porte (D-sub) 9 Antal USB 2.0-porte 0 Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte 0 Antal PS/2-porte 0 DC-in-stik Ja Netværk Ethernet LAN Ingen Præstation Maksimal opløsning 2048 x 1536 pixel Skanningsinterval 255 sek./side Design Stativ-montering Ja Produktfarve Sort Rackkapacitet 1U Husmateriale Metal LED-indikatorer Strøm Display Indbygget skærm Ingen Strømstyring Strømforbrug (typisk) 5 W Bæredygtighed Compliance-certifikater RoHS Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 433 mm Dybde 160 mm Højde 44 mm Vægt 1,89 kg Emballage indhold Brugervejledning Ja Andre funktioner Forbindelsesteknologi Ledningsført Kompatible operativsystemer Windows 2000/XP/Vista, Linux, Mac, Sun Effektkrav DC 5.3 V RJ-12 porte, antal 0 I/O-porte 1 x RJ11 Logistik data Harmoniseret systemkode (HS) 85176200
