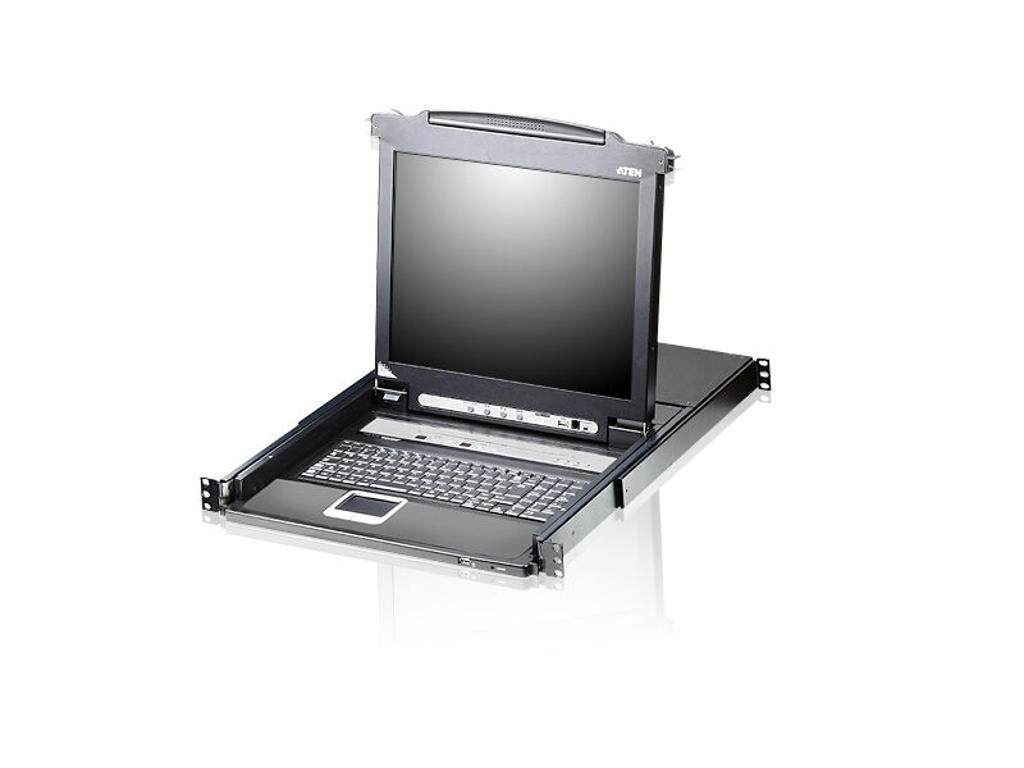

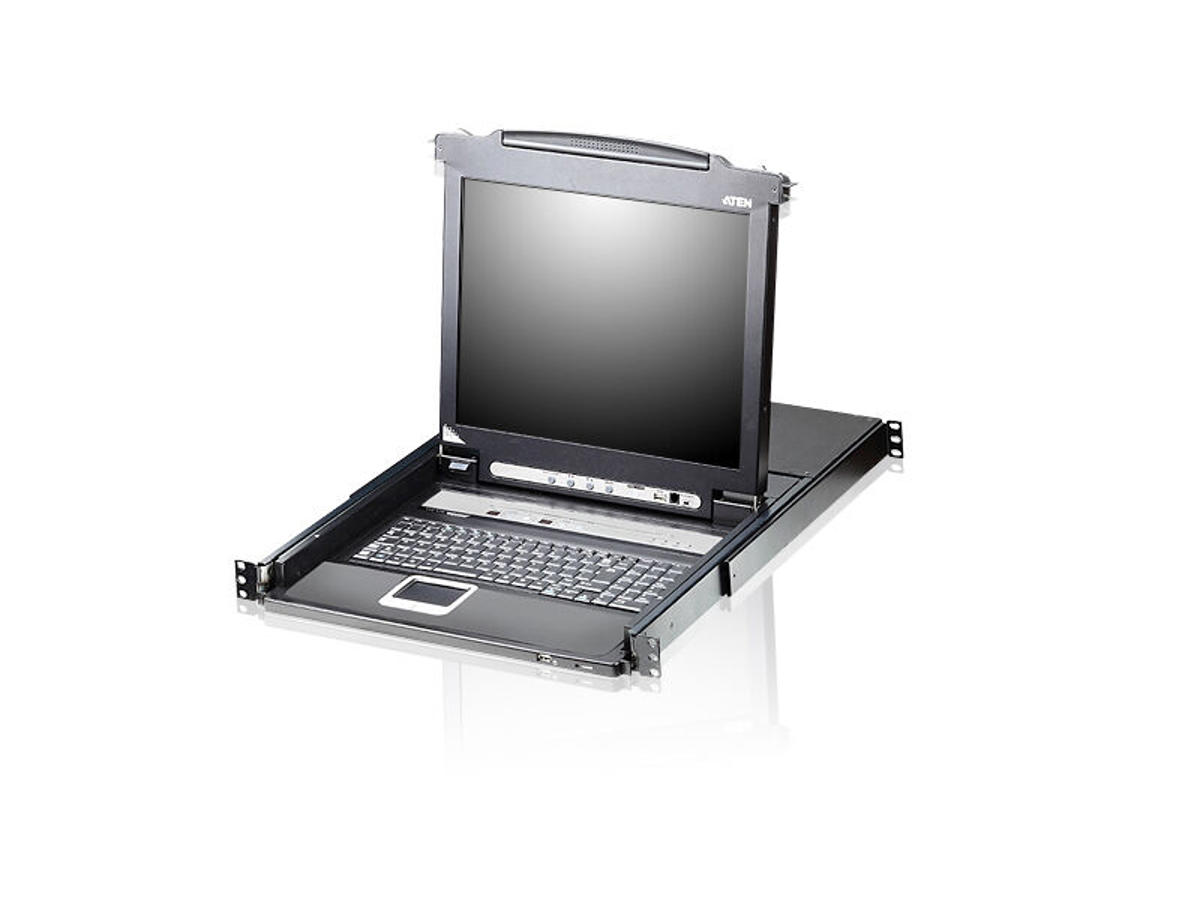

The CL5708 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.
The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17", 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5708 offers the option to use a fingerprint identification system for controlling access to both the CL5708 itself and the servers it commands.
The CL5708 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
Porte & Grænseflader | |
Antal kontrollerede computere | 256 |
Tastatur porttype | SPHD-17 |
Mus porttype | USB |
Video porttype | SPHD-17 |
Konsol porte | SPHD, USB A |
Antal konsol USB porte | 1 |
USB-stik type | USB Type-A |
Antal RJ-11-porte | 1 |
Antal AC-indgange | 1 |
Præstation | |
HD-type | WUXGA |
Maksimal opløsning | 1280 x 1024 pixel |
Maksimal analog opløsning | 1920 x 1200 pixel |
Video båndbredde | 75 Hz |
Skanningsinterval | 1,255 sek./side |
DDC2B support | Ja |
Understøtter hot-plug | Ja |
Daisy kæde | Ja |
Firmware kan opgraderes | Ja |
Design | |
Stativ-montering | Ja |
Produktfarve | Sort |
Rackkapacitet | 1U |
Husmateriale | Metal, Plast |
LED-indikatorer | Ja |
Trykknap | Ja |
Genvejstaster | Ja |
Display | |
Indbygget skærm | Ja |
Skærm | LCD |
Skærm diagonal | 43,2 cm (17") |
Skærmvisning (OSD) | Ja |
Strømstyring | |
Strømkilde | Vekselstrøm |
Indgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50/60 Hz |
Indgangsstrøm | 1 A |
Systemkrav | |
Understøttede Windows-operativsystemer | Ja |
Understøttede Linux-operativsystemer | Ja |
Understøttede Mac-operativsystemer | Ja |
Bæredygtighed | |
Compliance-certifikater | RoHS |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 50 °C |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
Vægt & størrelser | |
Bredde | 642,7 mm |
Dybde | 480 mm |
Højde | 44 mm |
Vægt | 13,5 kg |
Emballage indhold | |
Kabler inkluderet | Vekselstrøm, KVM |
Hurtig installationsvejledning | Ja |
Brugervejledning | Ja |
Rack monteringskit | Ja |
Andre funktioner | |
Output-forbindere | 8x SPHD |
I/O-porte | 1x DB-25 |
