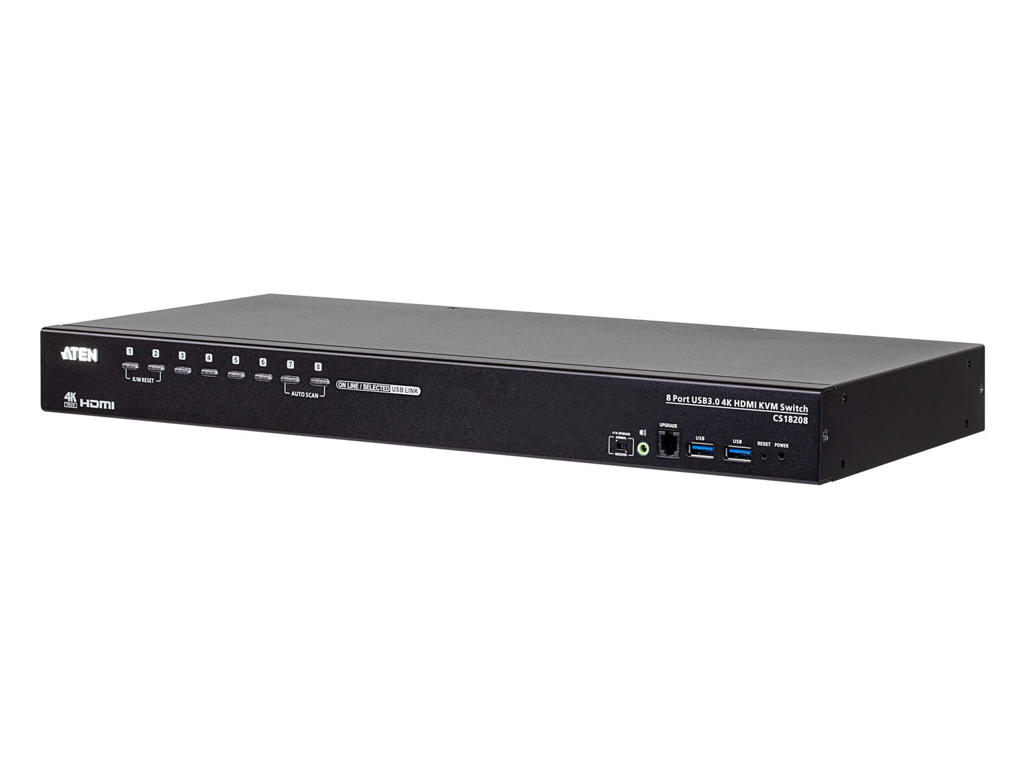

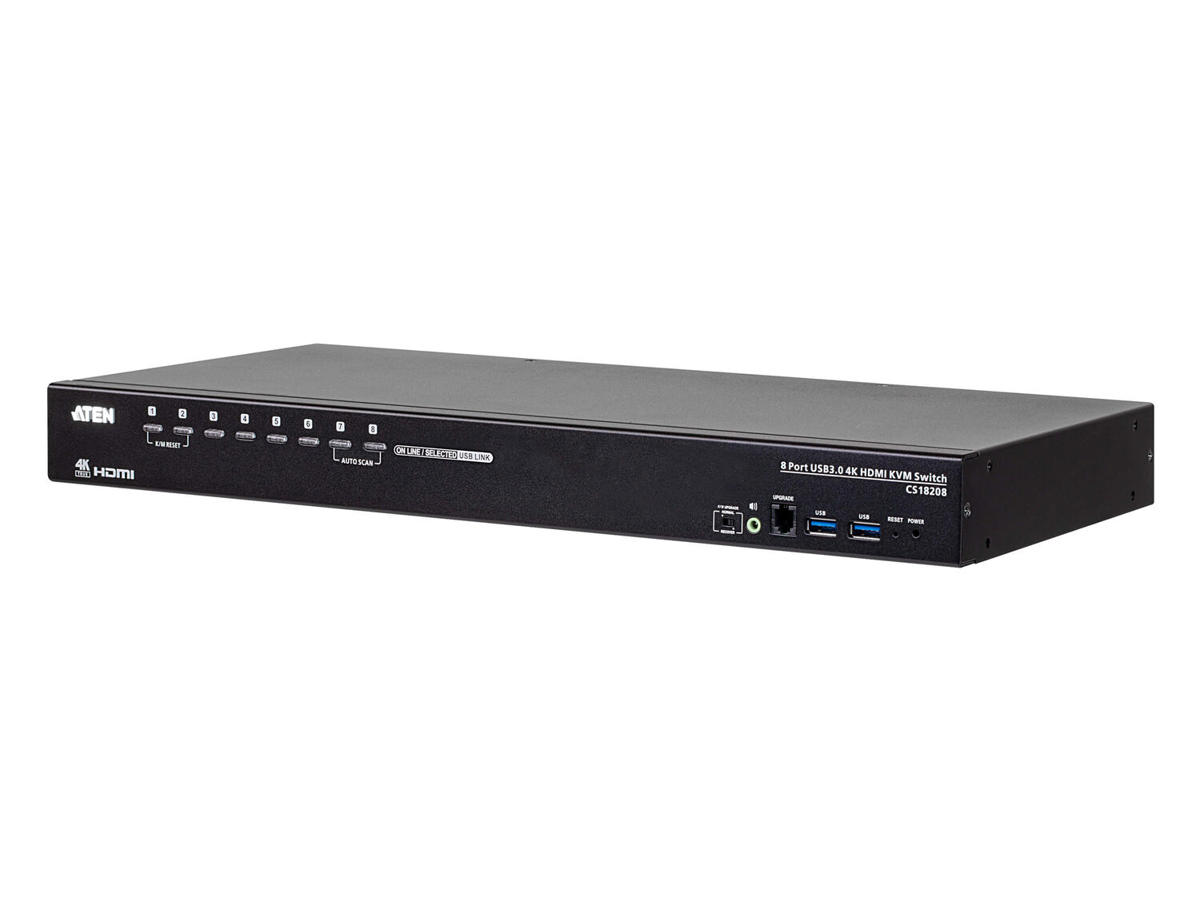

ATEN CS18208-AT-G KVM Switch Sort
Varenummer: CS18208-AT-G
.
DKK 9.125,00 / Stk
DKK 7.300,00 ekskl. moms
  •
ATEN CS18208-AT-G. Tastatur porttype: USB, Mus porttype: USB, Video porttype: HDMI. HD-type: 4K Ultra HD, Maksimal opløsning: 4096 x 2160 pixel, Video båndbredde: 60 Hz. Produktfarve: Sort, Husmateriale: Metal. Strømkilde: DC, DC indgangsspænding: 12 V, Strømforbrug (typisk): 9,77 W. Bredde: 432,4 mm, Dybde: 214,3 mm, Højde: 44 mm


Mere information

  • The ATEN CS18208 8-Port USB 3.0 4K HDMI KVM Switch can effectively access and control up to 8 HDMI computers from a single USB keyboard, USB mouse, and HDMI monitor console. The CS18208 supports high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals. To meet the needs of easy expansion and flexibility, the CS18208 can control up to 512 computers by cascading to three levels for a single console. Furthermore, the CS18208 supports multi-display function by stacking up to eight CS18208 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment. With two patented ATEN technologies – Video DynaSync™ and EDID Expert™, the CS18208 can optimize display resolution, accelerate switching between ports and power up smoothly while eliminating boot-up display problems. Besides, the CS18208 comes with a built-in USB 3.1 Gen 1 hub delivering data transfer rates up to 5 Gbps, allowing users to speed up operations and share USB peripherals instantly. For user-friendly port selection methods, the CS18208 offers pushbuttons, hotkeys, RS-232 commands, and OSD with newly-designed UI, bringing effortless and intuitive operations. To eliminate security concern, a two-level password authorization is available to enhance security protection for accessing and controlling computers. Consolidating these advantageous functionalities, the CS18208 is ideal for server room or computer room management applied in industries with requirements for high-quality images and multitasking, such as enterprise, government, production, telecom, finance, media, content provider, video surveillance, etc. 1x CS18208 8-Port USB 3.0 4K HDMI KVM Switch with Rack Mounting Kit 2x HDMI Cables 2x USB 3.0 Cables 2x Audio Cables 1x Firmware Upgrade Cable 1x Foot Pad Set (4 pcs) 1x Power Adapter 1x User Instructions

  • Porte & Grænseflader
    Antal kontrollerede computere 8
    Tastatur porttype USB
    Mus porttype USB
    Video porttype HDMI
    Konsol porte 3,5 mm hovedtelefon, HDMI, USB A
    Antal HDMI-porte 8
    Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-B porte 8
    Antal konsol USB porte 2
    USB stik Ja
    Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte 2
    USB-stik type USB Type-A, USB Type-B
    Lydforbindelse Ja
    Udgange til hovedtelefoner 9
    Antal mikrofon-indgange 1
    DC-in-stik Ja
    Præstation
    HD-type 4K Ultra HD
    Maksimal opløsning 4096 x 2160 pixel
    Video båndbredde 60 Hz
    Skanningsinterval 1,5,255 sek./side
    Design
    Produktfarve Sort
    Husmateriale Metal
    LED-indikatorer Ja
    Trykknap Ja
    Genvejstaster Ja
    Display
    Indbygget skærm Ingen
    Strømstyring
    Strømkilde DC
    DC indgangsspænding 12 V
    Strømforbrug (typisk) 9,77 W
    Systemkrav
    Understøttede Windows-operativsystemer Ja
    Understøttede Linux-operativsystemer Ja
    Understøttede Mac-operativsystemer Ja
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 40 °C
    Opbevaringstemperatur (T-T) -20 - 60 °C
    Relativ luftfugtighed ved drift (H-H) 0 - 80%
    Relativ luftfugtighed ved opbevaring (H-H) 0 - 80%
    Vægt & størrelser
    Bredde 432,4 mm
    Dybde 214,3 mm
    Højde 44 mm
    Vægt 3,94 kg
    Emballeringsdata
    Pakkebredde 133 mm
    Pakkedybde 499 mm
    Pakkehøjde 324 mm
    Pakkevægt 4,84 kg
    Emballage indhold
    Hurtig installationsvejledning Ja
    Brugervejledning Ja
    Logistik data
    Ydre emballage nettovægt 11,8 kg
    Harmoniseret systemkode (HS) 85176200
    Hovedkassens bredde (udvendigt) 427 mm
    Hovedkassens længde (udvendigt) 519 mm
    Hovedkassen højde (udvendigt) 348 mm
    Hovedkassens bruttovægt (udvendigt) 15,7 kg
    Produkter pr. hovedkasse (udvendigt) 3 stk
