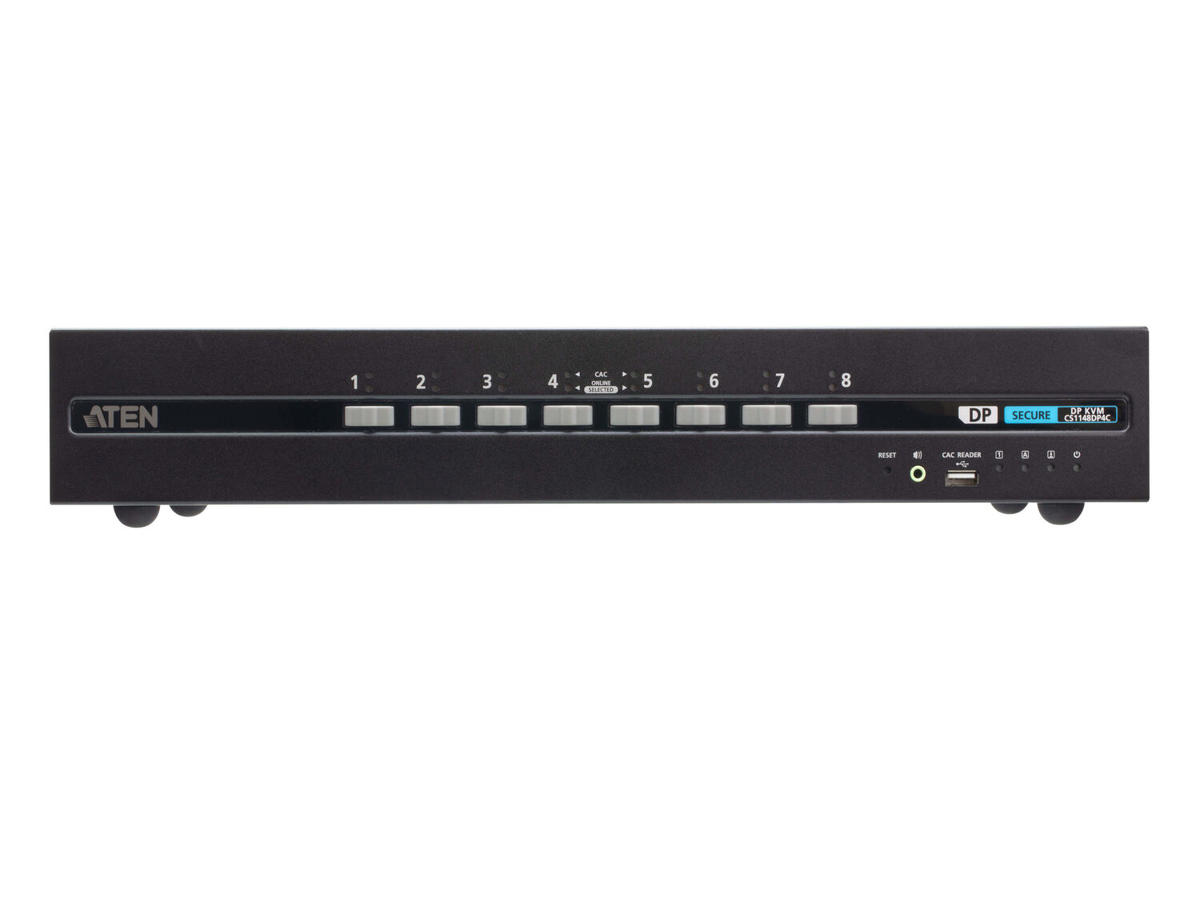

ATEN PSD PP v4.0 Secure KVM Switch CS1148DP4C is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1148DP4C is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).
ATEN PSD PP v4.0 Secure KVM Switch CS1148DP4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1148DP4C only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1. With multi–layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1148DP4C ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks. -
Porte & Grænseflader Antal kontrollerede computere 8 Tastatur porttype USB Mus porttype USB Video porttype DisplayPort Konsol porte 3ˌ5 mm hovedtelefon, DisplayPort, USB A Antal DisplayPorts 16 Antal USB 2.0 Type-B porte 16 Antal konsol USB porte 2 Antal konsol displayporte 2 Lydforbindelse Ja Udgange til hovedtelefoner 8 Antal RJ-11-porte 1 Præstation HD-type 4K Ultra HD Maksimal opløsning 3840 x 2160 pixel Video båndbredde 30 Hz Design Stativ-montering Ingen Produktfarve Sort Husmateriale Metal LED-indikatorer Ja Trykknap Ja Display Indbygget skærm Ingen Strømstyring Strømkilde Vekselstrøm Indgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Indgangsstrøm 1.5 A Strømforbrug (typisk) 24,4 W Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Relativ luftfugtighed ved opbevaring (H-H) 0 - 80% Vægt & størrelser Bredde 204,9 mm Dybde 432,4 mm Højde 65,5 mm Vægt 3,18 kg Emballage indhold Kabler inkluderet Vekselstrøm Brugervejledning Ja Logistik data Oprindelsesland Taiwan
