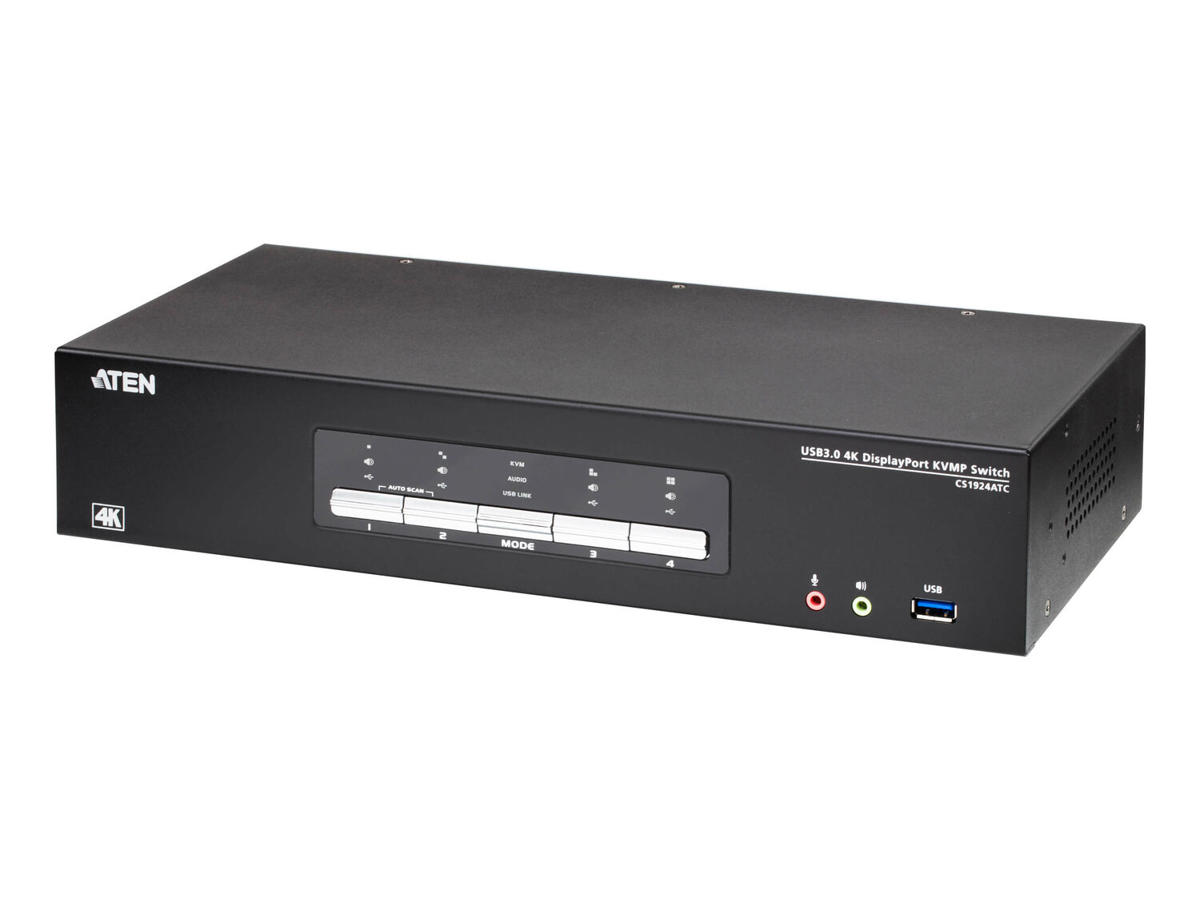

The ATEN CS1924ATC 4 Port USB 3.0 4K DisplayPort KVMP™ Switch for ATC is tailor-made for Air Traffic Control scenarios. It supports 2Kx2K resolution, making it perfect for radar monitoring, and also enables constant monitoring of flight information and mission-critical processes.
The Zero-Second Switch function ensures nearly real-time switching without any black screens, providing air traffic controllers instant access to four USB / DisplayPort-interfaced ATC computers for crucial operations. Port switching is flexible via pushbuttons, hotkeys, mouse, RS-232 commands, or an optional accessory the remote port selector.
With two lockable DC jacks for power redundancy, the CS1924ATC ensures uninterrupted operation and constant availability for mission-critical applications. It aims to greatly minimize or eliminate the risk of downtime.
Patented ATEN technology – Video DynaSync™, and EDID expert™ , combined with DisplayPort 1.2 and video resolutions up to 4K @ 60 Hz, it delivers optimized display resolution with exceptional detail and clarity in all conditions.
The CS1924ATC creates a safer environment and enhanced operational efficiency for Air Traffic Control Towers, Approach Control Rooms, and Area Control Centers, specifically tailored the air traffic control industry. -
Porte & Grænseflader Antal kontrollerede computere 4 Tastatur porttype USB Mus porttype USB Video porttype DisplayPort Konsol porte 3ˌ5 mm hovedtelefon, 3.5mm mic, DisplayPort, USB A, VGA (D-Sub) Antal DisplayPorts 5 Antal konsol USB porte 2 Antal konsol displayporte 1 USB stik Ja Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte 6 USB-stik type Micro-USB, USB Type-A Lydforbindelse Ja Udgange til hovedtelefoner 6 Antal mikrofon-indgange 6 Antal RJ-11-porte 1 DC-in-stik Ja Præstation HD-type 4K Ultra HD Maksimal opløsning 4096 x 2160 pixel Video båndbredde 60 Hz Firmware kan opgraderes Ja Design Produktfarve Sort Husmateriale Metal LED-indikatorer Ja Trykknap Ja Genvejstaster Ja Display Indbygget skærm Ja Strømstyring Strømkilde DC Indgangsspænding 12 V Strømforbrug (typisk) 16,84 W Driftsbetingelser Driftstemperatur (T-T) 0 - 20 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 161 mm Dybde 335 mm Højde 65,5 mm Vægt 1,88 kg Logistik data Oprindelsesland Taiwan
