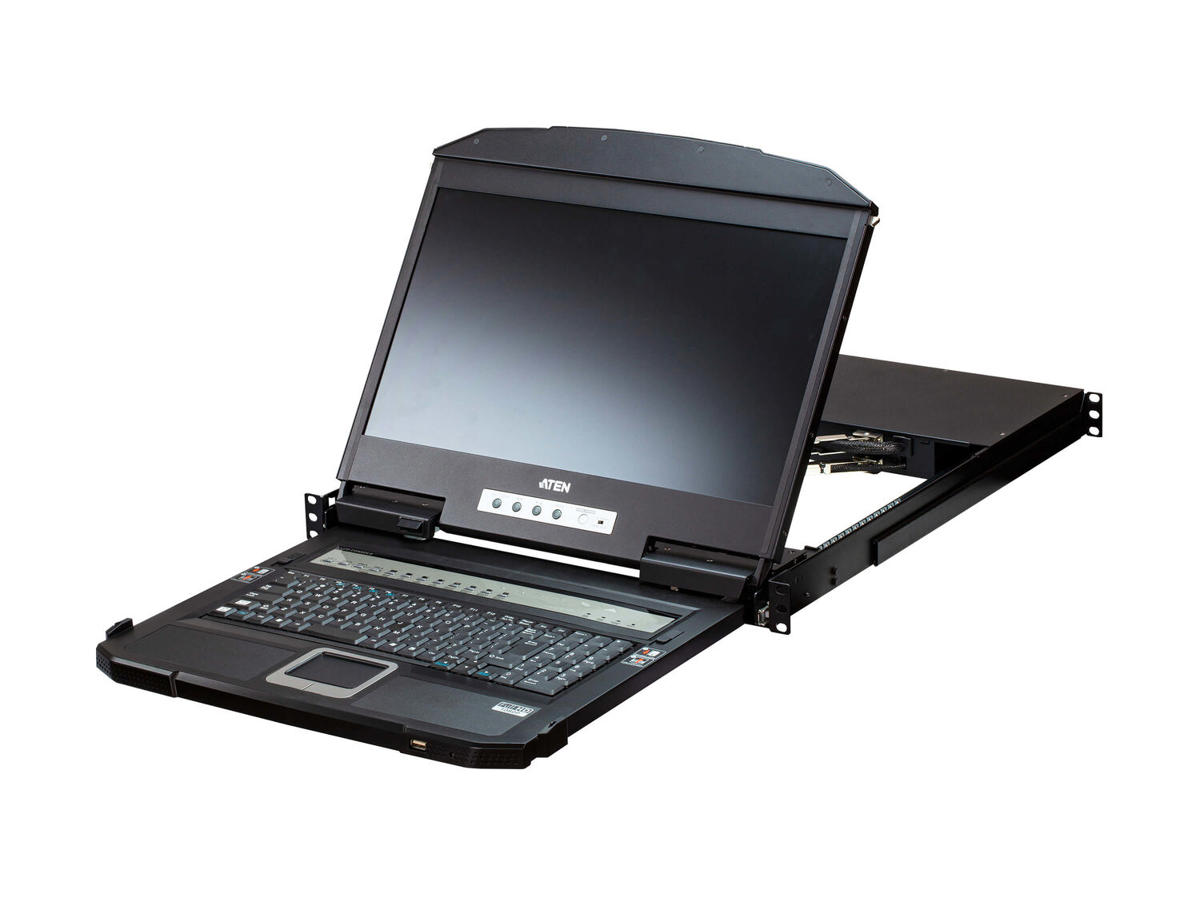

The ATEN CL3884NW LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, a 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable slide housing. The dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the LCD monitor rotates back, flush against the rack, to allow convenient monitoring of computer activity.
The CL3884NW offers dual console outputs that guarantees users real-time monitoring functionality. Users can control both outputs to display the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP). The display modes have different layout options to allow users to customize which sources are being displayed. In addition, being able to cascade up to 2 levels, the CL3884NW can reach up to a maximum of 16 video sources that can be simultaneously displayed and controlled with independent keyboard and mouse.
Featuring Boundless Switching, the CL3884NW allows users to switch control to another computer by simply moving the mouse cursor across a screen border and onto the target computer display without limitations. With patented ATEN technology – Video DynaSync ™, users can enjoy better display resolutions and faster switching between systems. What’s more, the EDID modes are available for smooth power-up, high-quality display that eliminate monitor compatibility issue.
For added convenience, users can choose to manage the computer from an external console. The CL3884NW features a USB peripheral port on the unit’s front panel, ports for the external KVM console (USB keyboard/mouse and HDMI monitor) on the rear panel, and audio ports for connecting audio speakers.
The CL3884NW is a feature-rich LCD KVM switch which exceeds the requirements for control room applications in any industry in terms of its capabilities of optimizing video quality, space utilization, adaptive deployment, and operational versatility.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below. -
Porte & Grænseflader Antal kontrollerede computere 16 Tastatur porttype USB Mus porttype USB Video porttype HDMI Konsol porte 3ˌ5 mm hovedtelefon, HDMI, USB A Antal HDMI-porte 4 Antal USB 2.0 Type-B porte 4 Antal konsol USB porte 2 USB-stik type USB Type-A, USB Type-B Serie porttype RJ-45 Lydforbindelse Ja Udgange til hovedtelefoner 4 Antal AC-indgange 1 Netværk Ethernet LAN Ja Ethernet LAN-porte (RJ-45) 1 Præstation HD-type Full HD+ Maksimal opløsning 1920 x 1200 pixel Maksimal analog opløsning 1920 x 1200 pixel Video båndbredde 60 Hz Skanningsinterval 5,10,15,30,60,90 sek./side Design Stativ-montering Ja Produktfarve Sort Rackkapacitet 1U Husmateriale Metal Cascadable Ja LED-indikatorer Ja Displayknap kontakt Ja Trykknap Ja Genvejstaster Ja Display Indbygget skærm Ja Skærm LCD Skærm diagonal 47 cm (18.5") Skærmvisning (OSD) Ja Strømstyring Strømkilde DC Indgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Indgangsstrøm 1 A Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 85% Relativ luftfugtighed ved opbevaring (H-H) 0 - 85% Vægt & størrelser Bredde 631 mm Dybde 480,6 mm Højde 42,8 mm Vægt 11,2 kg Emballage indhold Kabler inkluderet Vekselstrøm, KVM Hurtig installationsvejledning Ja Brugervejledning Ja Rack monteringskit Ja
