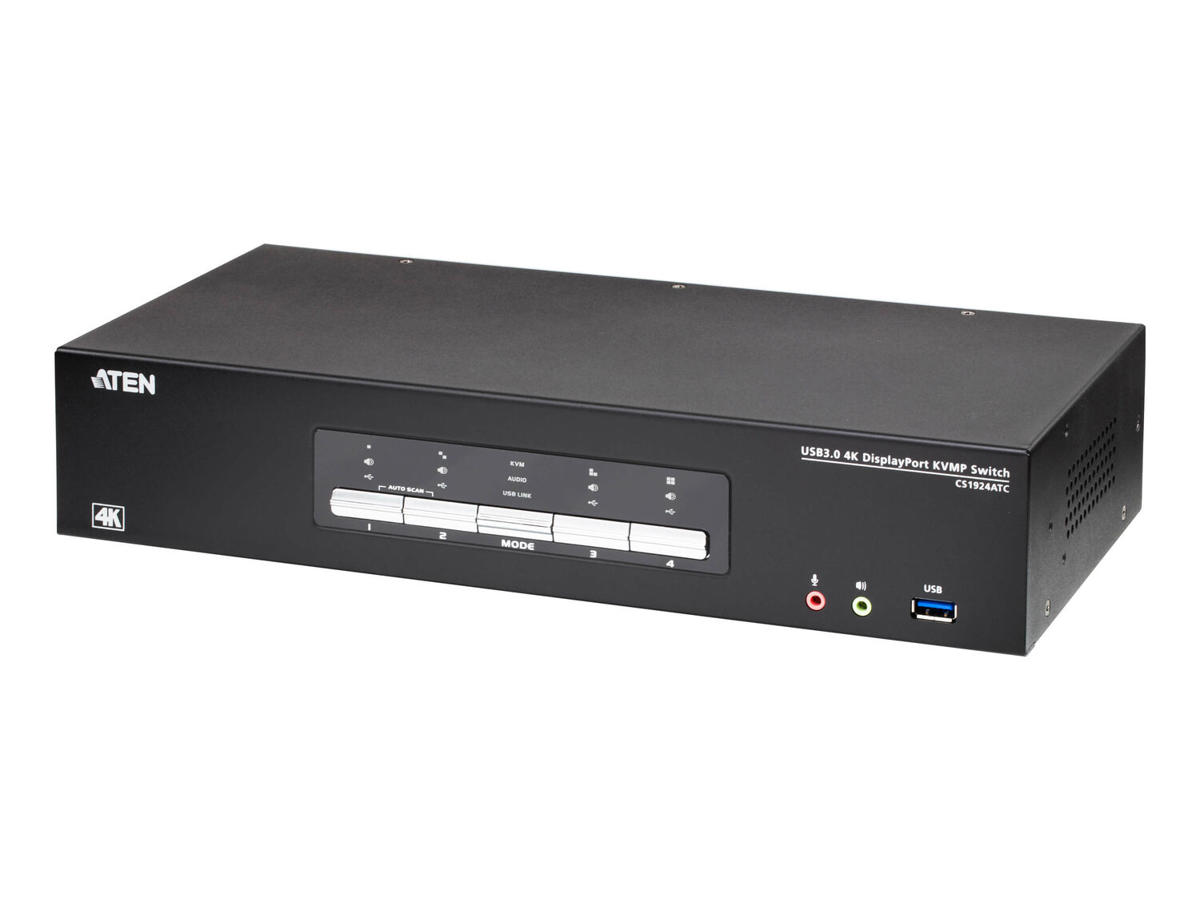

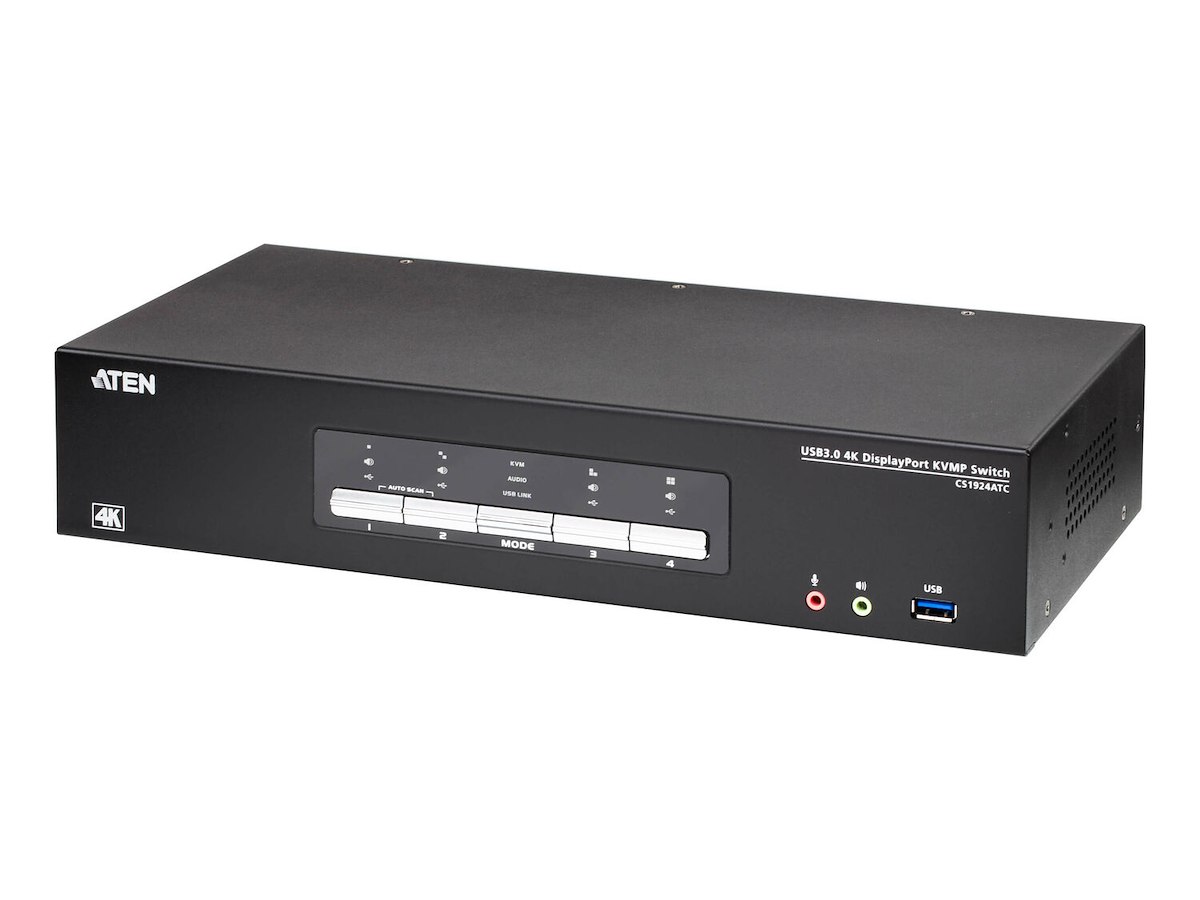

The ATEN CS1924ATC 4 Port USB 3.0 4K DisplayPort KVMP™ Switch for ATC is tailor-made for Air Traffic Control scenarios. It supports 2Kx2K resolution, making it perfect for radar monitoring, and also enables constant monitoring of flight information and mission-critical processes.
The Zero-Second Switch function ensures nearly real-time switching without any black screens, providing air traffic controllers instant access to four USB / DisplayPort-interfaced ATC computers for crucial operations. Port switching is flexible via pushbuttons, hotkeys, mouse, RS-232 commands, or an optional accessory the remote port selector.
With two lockable DC jacks for power redundancy, the CS1924ATC ensures uninterrupted operation and constant availability for mission-critical applications. It aims to greatly minimize or eliminate the risk of downtime.
Patented ATEN technology – Video DynaSync™, and EDID expert™ , combined with DisplayPort 1.2 and video resolutions up to 4K @ 60 Hz, it delivers optimized display resolution with exceptional detail and clarity in all conditions.
The CS1924ATC creates a safer environment and enhanced operational efficiency for Air Traffic Control Towers, Approach Control Rooms, and Area Control Centers, specifically tailored the air traffic control industry.
| Porte & Grænseflader | |
| Antal kontrollerede computere | 4 |
| Tastatur porttype | USB |
| Mus porttype | USB |
| Video porttype | DisplayPort |
| Konsol porte | 3ˌ5 mm hovedtelefon, 3.5mm mic, DisplayPort, USB A, VGA (D-Sub) |
| Antal DisplayPorts | 5 |
| Antal konsol USB porte | 2 |
| Antal konsol displayporte | 1 |
| USB stik | Ja |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte | 6 |
| USB-stik type | Micro-USB, USB Type-A |
| Lydforbindelse | Ja |
| Udgange til hovedtelefoner | 6 |
| Antal mikrofon-indgange | 6 |
| Antal RJ-11-porte | 1 |
| DC-in-stik | Ja |
| Præstation | |
| HD-type | 4K Ultra HD |
| Maksimal opløsning | 4096 x 2160 pixel |
| Video båndbredde | 60 Hz |
| Firmware kan opgraderes | Ja |
| Design | |
| Produktfarve | Sort |
| Husmateriale | Metal |
| LED-indikatorer | Ja |
| Trykknap | Ja |
| Genvejstaster | Ja |
| Display | |
| Indbygget skærm | Ja |
| Strømstyring | |
| Strømkilde | DC |
| Indgangsspænding | 12 V |
| Strømforbrug (typisk) | 16,84 W |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 20 °C |
| Opbevaringstemperatur (T-T) | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
| Vægt & størrelser | |
| Bredde | 161 mm |
| Dybde | 335 mm |
| Højde | 65,5 mm |
| Vægt | 1,88 kg |
| Logistik data | |
| Oprindelsesland | Taiwan |
