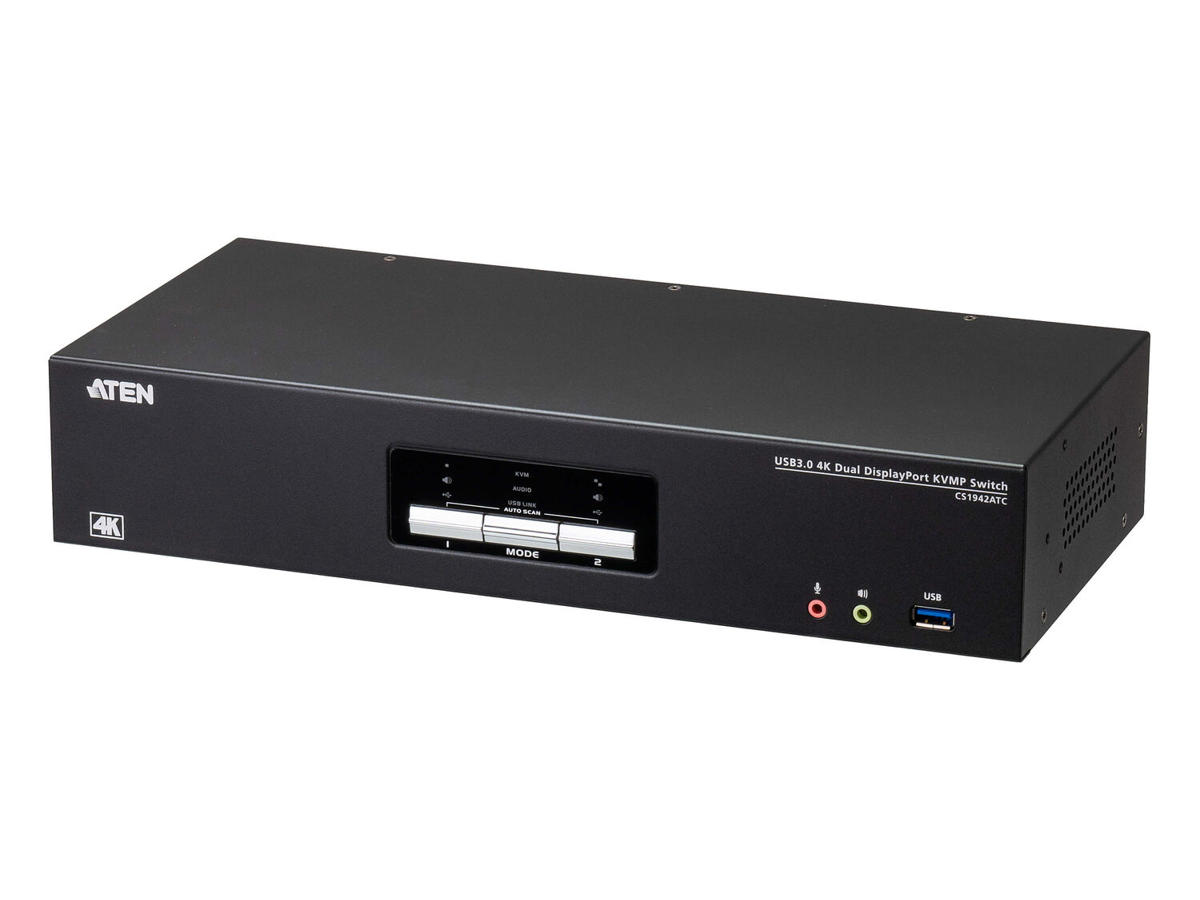

The ATEN CS1942ATC 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch for ATC is tailor-made for Air Traffic Control scenarios. It supports 2Kx2K resolution, making it perfect for radar monitoring, and also enables constant monitoring of flight information and mission-critical processes. Incorporating dual display capability, users can enjoy a wider screen and easy switch between the two DisplayPort systems.
The Zero-Second Switch function ensures nearly real-time switching without any black screens, providing air traffic controllers instant access to two USB / DisplayPort-interfaced dual display ATC computers for crucial operations. Port switching is flexible via pushbuttons, hotkeys, mouse, RS-232 commands, or an optional accessory the remote port selector.
With two lockable DC jacks for power redundancy, the CS1942ATC ensures uninterrupted operation and constant availability for mission-critical applications. It aims to greatly minimize or eliminate the risk of downtime. Patented ATEN technology – Video DynaSync™, and EDID expert™, combined with DisplayPort 1.2 and video resolutions up to 4K @ 60 Hz, it delivers optimized display resolution with exceptional detail and clarity in all conditions.
The CS1942ATC creates a safer environment and enhanced operational efficiency for Air traffic Control Towers, Approach Control Rooms, and Area Control Centers, specifically tailored the air traffic control industry. -
Porte & Grænseflader Antal kontrollerede computere 2 Tastatur porttype USB Mus porttype USB Video porttype DisplayPort Konsol porte 3ˌ5 mm hovedtelefon, 3.5mm mic, DisplayPort, USB A, VGA (D-Sub) Antal VGA-porte (D-sub) 3 Antal DisplayPorts 4 Antal konsol USB porte 2 Antal konsol displayporte 2 USB stik Ja Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte 2 USB-stik type Micro-USB, USB Type-A Lydforbindelse Ja Udgange til hovedtelefoner 2 Antal mikrofon-indgange 2 Antal RJ-11-porte 1 DC-in-stik Ja Præstation HD-type 4K Ultra HD Maksimal opløsning 4096 x 2160 pixel Video båndbredde 60 Hz Firmware kan opgraderes Ja Design Produktfarve Sort Husmateriale Metal LED-indikatorer Ja Trykknap Ja Genvejstaster Ingen Display Indbygget skærm Ja Strømstyring Strømkilde DC Indgangsspænding 12 V Strømforbrug (typisk) 17,8 W Driftsbetingelser Driftstemperatur (T-T) 0 - 20 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 161 mm Dybde 335 mm Højde 65,5 mm Vægt 1,88 kg Emballeringsdata Pakkebredde 133 mm Pakkedybde 499 mm Pakkehøjde 324 mm Pakkevægt 4,21 kg Logistik data Harmoniseret systemkode (HS) 84718000 Hovedkassens bredde (udvendigt) 427 mm Hovedkassens længde (udvendigt) 519 mm Hovedkassen højde (udvendigt) 348 mm Hovedkassens bruttovægt (udvendigt) 13,7 kg Oprindelsesland Taiwan
