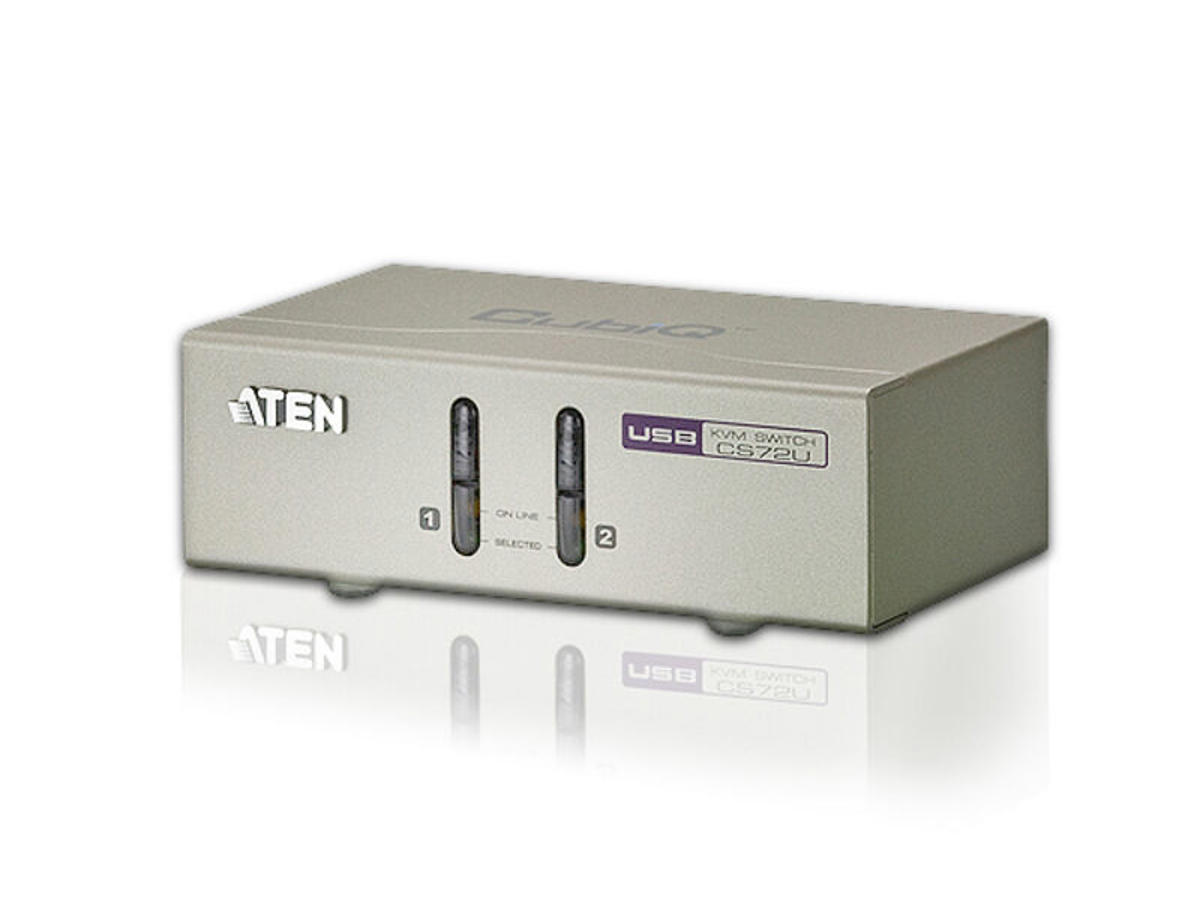

The CS72U 2-Port USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (keyboard and mouse, audio and VGA monitor).
With the CS72U, you can access computers conveniently using port selection pushbuttons located on the unit's front panel.
1x CS72U 2-Port USB KVM Switch
2x Custom KVM Cable sets
1x User Instructions
Note: The provided custom KVM cable set is custom-made to work with CS72U / CS74U, which transmits video, audio, and USB signals from the unit to the connected PC. There are two custom KVM cable sets available for purchase (1.2 m custom KVM cable set: LIN5-23X5-X31G; 1.8 m custom KVM cable set: LIN5-23X5-X32G). To purchase additional custom-made KVM cables, please contact your ATEN dealer for more information.
| Porte & Grænseflader | |
| Antal kontrollerede computere | 2 |
| Tastatur porttype | USB |
| Mus porttype | USB |
| Video porttype | VGA |
| Konsol porte | 3ˌ5 mm hovedtelefon, 3.5mm mic, USB A, VGA (D-Sub) |
| Antal VGA-porte (D-sub) | 2 |
| Antal konsol USB porte | 2 |
| DC-in-stik | Ja |
| Præstation | |
| HD-type | QXGA |
| Maksimal opløsning | 2048 x 1536 pixel |
| Video båndbredde | 60 Hz |
| DDC2B support | Ja |
| Design | |
| Stativ-montering | Ingen |
| Produktfarve | Grå |
| Husmateriale | Metal |
| LED-indikatorer | Ja |
| Trykknap | Ja |
| Display | |
| Indbygget skærm | Ingen |
| Strømstyring | |
| Strømkilde | DC |
| Indgangsspænding | 5 V |
| Strømforbrug (typisk) | 0,142 W |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 50 °C |
| Opbevaringstemperatur (T-T) | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
| Relativ luftfugtighed ved opbevaring (H-H) | 0 - 80% |
| Vægt & størrelser | |
| Bredde | 130 mm |
| Dybde | 76,5 mm |
| Højde | 44 mm |
| Vægt | 804 g |
| Emballeringsdata | |
| Pakkebredde | 59 mm |
| Pakkedybde | 239 mm |
| Pakkehøjde | 160 mm |
| Pakkevægt | 963 g |
| Emballage indhold | |
| Hurtig installationsvejledning | Ja |
| Brugervejledning | Ja |
| Logistik data | |
| Ydre emballage nettovægt | 16,1 kg |
| Harmoniseret systemkode (HS) | 85176200 |
| Hovedkassens bredde (udvendigt) | 315 mm |
| Hovedkassens længde (udvendigt) | 490 mm |
| Hovedkassen højde (udvendigt) | 338 mm |
| Hovedkassens bruttovægt (udvendigt) | 19,9 kg |
| Produkter pr. hovedkasse (udvendigt) | 20 stk |
