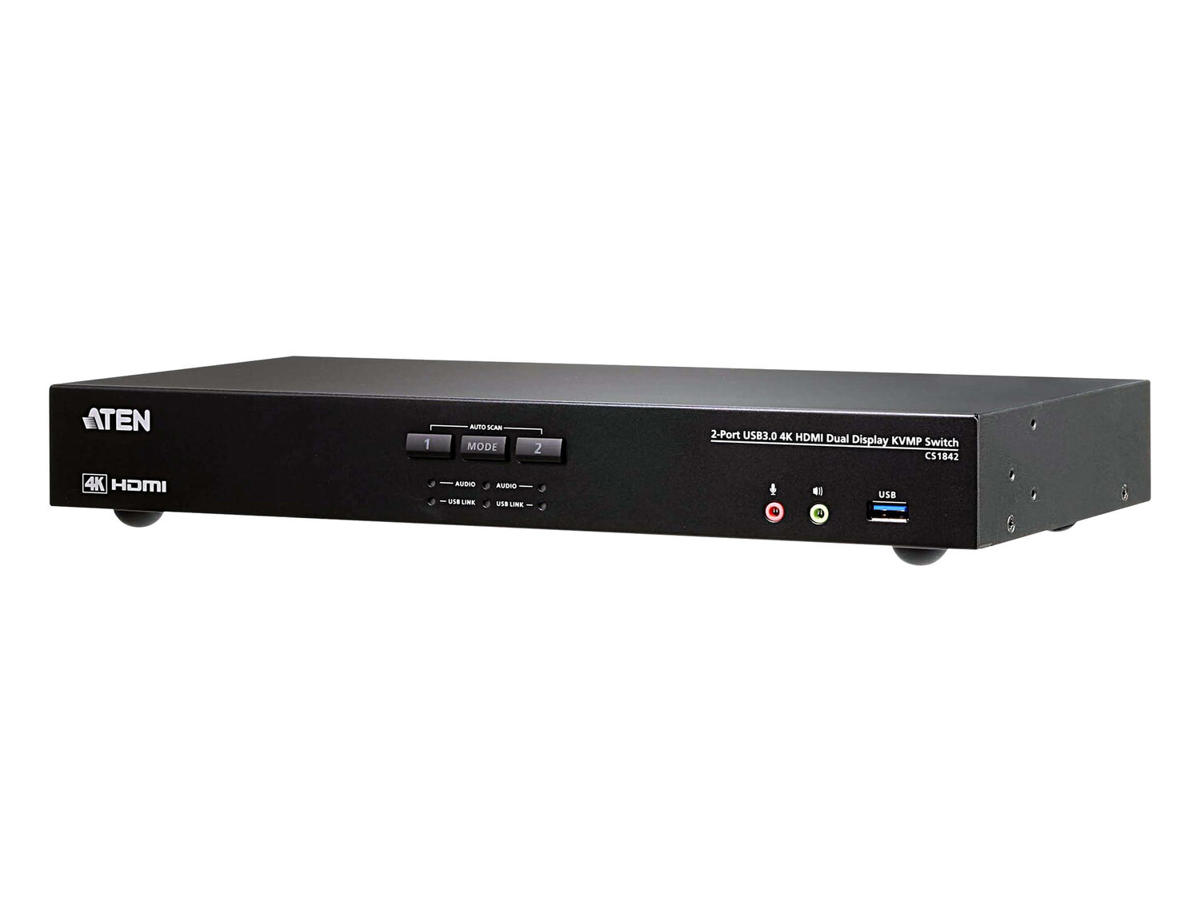

The ATEN CS1842 Dual Display KVMP™ Switch presents a valuable solution for desktop workstation with instant and effortless access to two HDMI interface computers from a single USB keyboard, mouse and two HDMI monitors; to meet users’ needs, the CS1842 is compliant with HDMI 2.0 standard and supports superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), offering the most stunning and vivid visuals.
In addition, with patented ATEN technology – Video DynaSync™, the CS1842 provides optimized display resolution and accelerates switching between systems. Considering immediate data sharing, a built-in USB 3.1 Gen 1 hub delivers data transfer rates up to 5 Gbps, allowing you to speed up operations and share USB peripherals efficiently.
For requirements of more displays to monitor, users can daisy-chain two CS1842 for up to four displays to multitask easily and process tremendous information. Besides, a remote port selector is available for quick and streamlined port selection apart from pushbuttons, hotkeys and mouse port switching.
As a feature-rich KVM switch, the CS1842 is especially suitable for users who need to perform multiple tasks smoothly at CGI work, graphic design, video post production, and CAD engineering.
| Porte & Grænseflader | |
| Antal kontrollerede computere | 2 |
| Tastatur porttype | USB |
| Mus porttype | USB |
| Video porttype | HDMI |
| Konsol porte | 3ˌ5 mm hovedtelefon, 3.5mm mic, HDMI, USB A |
| Antal HDMI-porte | 4 |
| USB stik | Ja |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte | 2 |
| USB-stik type | USB Type-A, USB Type-B |
| Lydforbindelse | Ja |
| DC-in-stik | Ja |
| Præstation | |
| HD-type | 4K Ultra HD |
| Maksimal opløsning | 4096 x 2160 pixel |
| Skanningsinterval | 1,99 sek./side |
| Daisy kæde | Ja |
| Design | |
| Stativ-montering | Ja |
| Produktfarve | Sort |
| Rackkapacitet | 1U |
| LED-indikatorer | Ja |
| Trykknap | Ja |
| Genvejstaster | Ja |
| Display | |
| Indbygget skærm | Ingen |
| Strømstyring | |
| Strømkilde | Vekselstrøm |
| Indgangsspænding | 12 V |
| Strømforbrug (typisk) | 3,17 W |
| Bæredygtighed | |
| Compliance-certifikater | RoHS |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
| Vægt & størrelser | |
| Bredde | 335 mm |
| Dybde | 160,5 mm |
| Højde | 44 mm |
| Vægt | 1,6 kg |
