Mere information
-

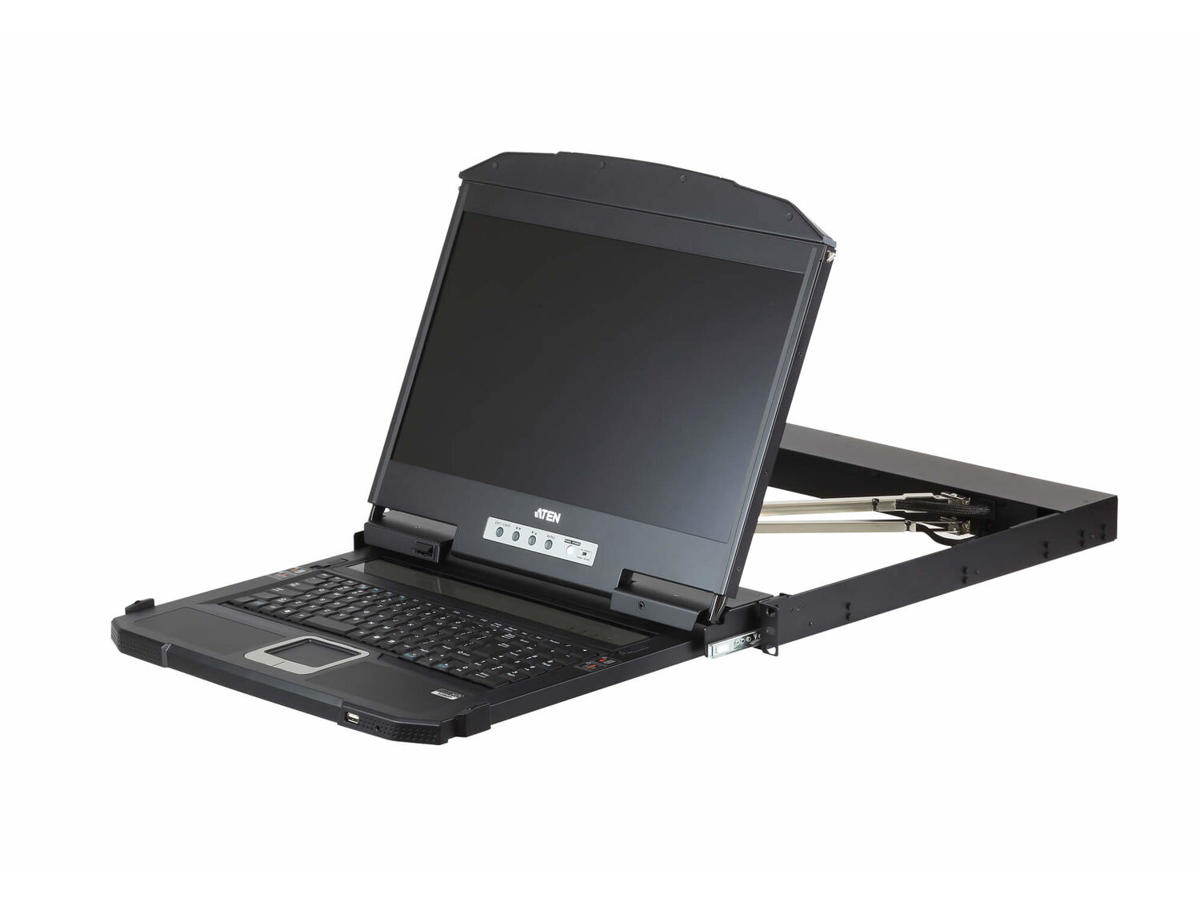

The CL3800 USB HDMI DVI VGA LCD Console is a short depth dual rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. In addition to saving valuable space on the rack, the CL3800 also provides a space-saving solution for special environments, such as outside broadcast vans (OB vans) and compact control rooms.
The CL3800 supports three types of video input – HDMI, DVI, and VGA – and provides the ultimate in installation flexibility by allowing users to connect the console and the computer via any of the three types of video source. The CL3800NW’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area.
Furthermore, the dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the thin profile LCD monitor rotates back, flush against the rack, to allow the convenient monitoring of computer activity.
For added convenience, users can choose to manage the computer from an external console. The CL3800 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI, DVI, or VGA monitor) are provided on the rear panel. The CL3800 also includes two mini stereo ports for connecting audio speakers.
With a rich feature set, the CL3800 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry. -
Porte & Grænseflader Antal kontrollerede computere 1 Tastatur porttype USB Mus porttype USB Video porttype HDMI/DVI-I Konsol porte 3ˌ5 mm hovedtelefon, DVI-D, HDMI, USB A Antal HDMI-porte 2 Antal DVI-D-porte 2 Antal VGA-porte (D-sub) 2 Antal konsol USB porte 2 USB-stik type Mini-USB A Lydforbindelse Ja Præstation HD-type WXGA Maksimal opløsning 1366 x 768 pixel Video båndbredde 60 Hz DDC2B support Ja Firmware kan opgraderes Ja Design Stativ-montering Ja Produktfarve Sort Rackkapacitet 1U Husmateriale Metal, Plast LED-indikatorer Ja Trykknap Ja Genvejstaster Ja Display Indbygget skærm Ja Skærm LCD Skærm diagonal 47 cm (18.5") Strømstyring Strømkilde Vekselstrøm Indgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Indgangsstrøm 1 A Strømforbrug (typisk) 17,8 W Bæredygtighed Compliance-certifikater RoHS Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 467,4 mm Dybde 449,2 mm Højde 42,8 mm Vægt 9,79 kg Emballeringsdata Pakkebredde 612 mm Pakkedybde 658 mm Pakkehøjde 135 mm Pakketype Kasse Emballage indhold Kabler inkluderet Vekselstrøm, KVM Hurtig installationsvejledning Ja Brugervejledning Ja AC-adapter inkluderet Ja Andre funktioner Kapabilitet KN2116VA, KN2132VA, KN4116VA, KN4132VA, KN8132V, KN8164V, CS1798, CS1768, KH1508Ai, CS1308, KH1516Ai, CS1316, CS1708A, CS1716A, KH1508A, KH1516A, KN2124VA, KN2140VA, KN4124VA, KN4140VA, KN1132V, KN1108VA, KN1116VA, KH1532A, CS17916, CS1754, CS1758, 2L-5001U, 2L-7D02U, 2L-5002U, 2L-5003U, 2L-7D03U, 2L-7D05U, 2L-7D02UH, 2L-7D02DH, CE611, 2K-0001, 2K-0002, 2K-0003, 2K-0004, 2X-040G, 2K-0007, 2X-041G, 2X-042G, CN9600, CS19208, CS19216, CS1842, CS1844, RCMDVI101, CS22H, CS18208, CS18216 Logistik data Ydre emballage nettovægt 10,2 kg Harmoniseret systemkode (HS) 85176200 Hovedkassens bredde (udvendigt) 612 mm Hovedkassens længde (udvendigt) 658 mm Hovedkassen højde (udvendigt) 135 mm Hovedkassens bruttovægt (udvendigt) 12,8 kg
