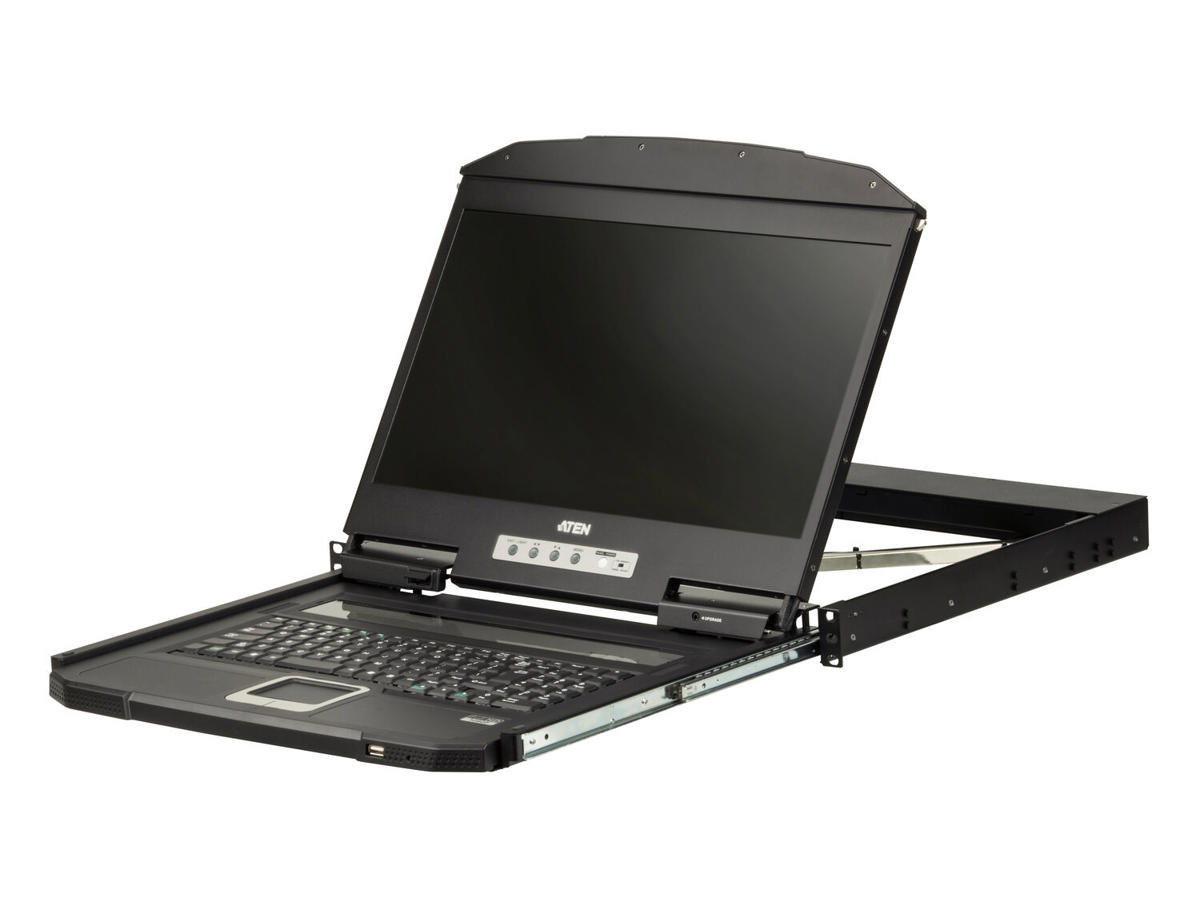

The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.
The CL3100 is a dedicated front end sliding console for compatible VGA KVM switches. For added convenience, users can choose to manage the computer from an external console. The CL3100 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and VGA monitor) are provided on the rear panel. The CL3100 also includes two mini stereo ports for connecting audio speakers.
With a rich feature set, the CL3100 is designed to exceed the requirements for space utility optimization, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below. -
Porte & Grænseflader Antal kontrollerede computere 1 Tastatur porttype USB, PS/2 Mus porttype USB, PS/2 Video porttype VGA Konsol porte SPHD, USB A, VGA (D-Sub) Antal VGA-porte (D-sub) 1 Antal konsol USB porte 2 USB-stik type USB Type-A Lydforbindelse Ja Antal AC-indgange 1 Præstation HD-type HD Maksimal opløsning 1366 x 768 pixel Maksimal analog opløsning 1920 x 1200 pixel Video båndbredde 60 Hz DDC2B support Ja Firmware kan opgraderes Ja Design Stativ-montering Ja Produktfarve Sort Rackkapacitet 1U Husmateriale Metal, Plast LED-indikatorer Ja Displayknap kontakt Ja Genvejstaster Ja Display Indbygget skærm Ja Skærm LCD Skærm diagonal 47 cm (18.5") Strømstyring Strømkilde Vekselstrøm Indgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Indgangsstrøm 1 A Systemkrav Understøttede Windows-operativsystemer Ja Understøttede Linux-operativsystemer Ja Understøttede Mac-operativsystemer Ja Andre understøttede operativsystemer SunOS Bæredygtighed Compliance-certifikater RoHS Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 477 mm Dybde 480,6 mm Højde 42,8 mm Vægt 9,07 kg Emballage indhold Kabler inkluderet Vekselstrøm, KVM Brugervejledning Ja Rack monteringskit Ja Andre funktioner Output-forbindere 1x SPHD I/O-porte 2x 3.5mm Audio Jack
