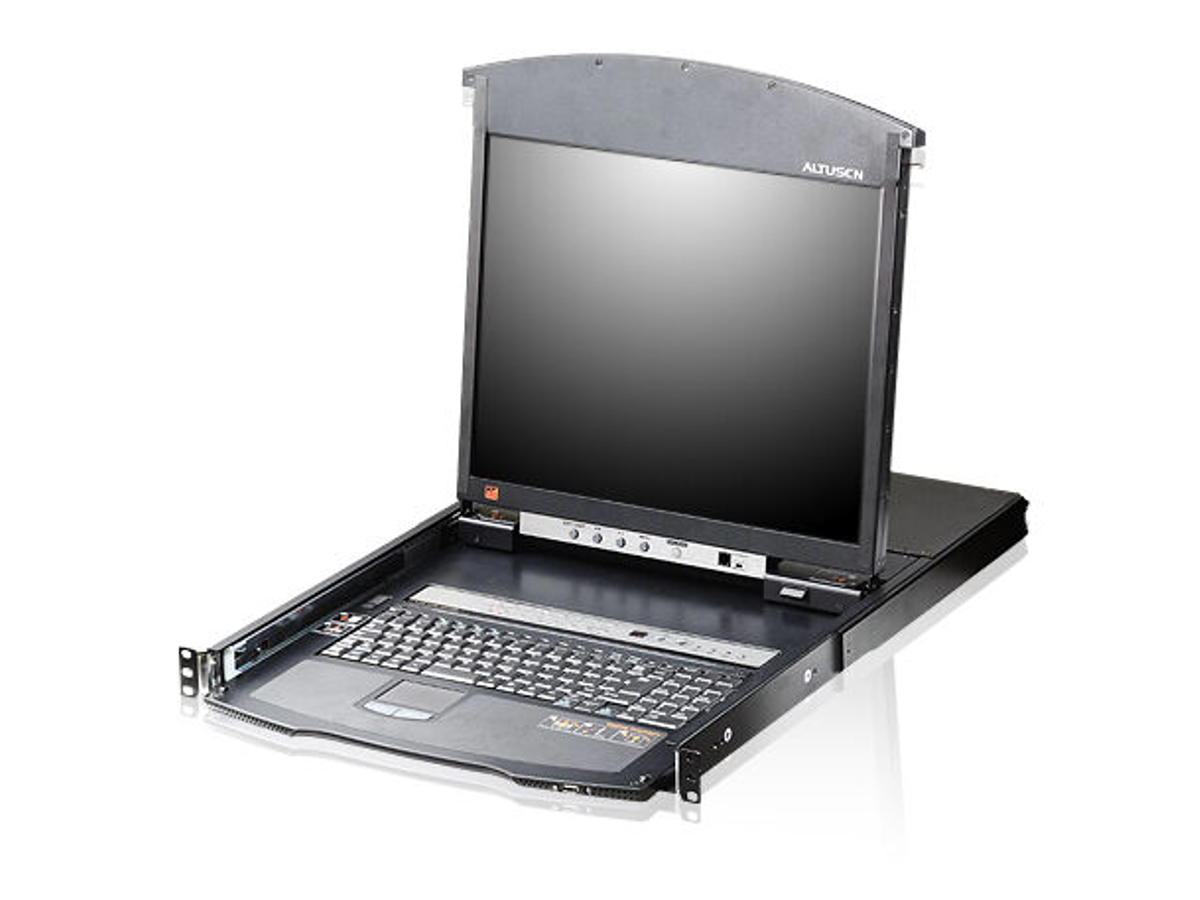

The KL1516Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 16 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing.
The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to “ hide away ” when not in use, while the thin profile LCD monitor rotates back – flush against the rack – allowing convenient monitoring of computer activity.
The KL1516Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1516Ai can be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down the hall, down the street, or halfway around the world.
| Porte & Grænseflader | |
| Antal kontrollerede computere | 16 |
| Tastatur porttype | USB, PS/2 |
| Mus porttype | USB, PS/2 |
| Video porttype | VGA |
| Konsol porte | PS/2, USB A, VGA (D-Sub) |
| Antal VGA-porte (D-sub) | 1 |
| Antal konsol USB porte | 2 |
| USB-stik type | USB Type-A |
| Netværk | |
| Ethernet LAN | Ja |
| Præstation | |
| Maksimal opløsning | 1600 x 1200 pixel |
| Automatisk skift | Ja |
| Skanningsinterval | 1,255 sek./side |
| DDC2B support | Ja |
| Daisy kæde | Ja |
| Design | |
| Stativ-montering | Ja |
| Produktfarve | Sort |
| Rackkapacitet | 1U |
| LED-indikatorer | Ja |
| Tastatursprog | US engelsk |
| Display | |
| Indbygget skærm | Ja |
| Skærm | LCD |
| Skærm diagonal | 48,3 cm (19") |
| Skærmvisning (OSD) | Ja |
| Strømstyring | |
| Indgangsspænding | 100-240 V |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Strømforbrug (typisk) | 27,5 W |
| Systemkrav | |
| Understøttede Windows-operativsystemer | Ja |
| Bæredygtighed | |
| Compliance-certifikater | RoHS |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
| Vægt & størrelser | |
| Bredde | 701,2 mm |
| Dybde | 480 mm |
| Højde | 44 mm |
| Vægt | 15,4 kg |
| Emballage indhold | |
| Brugervejledning | Ja |
