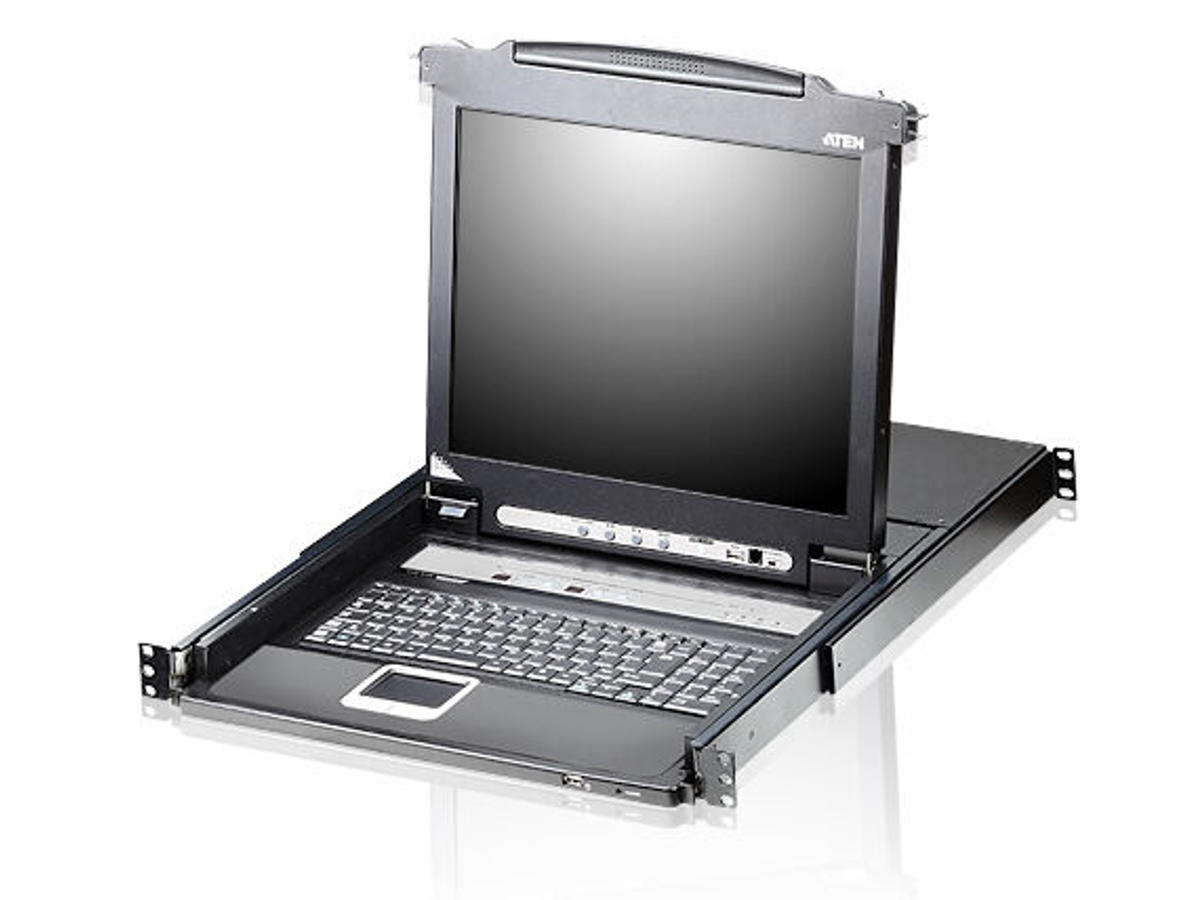

The CL5716 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console.
The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
| Porte & Grænseflader | |
| Antal kontrollerede computere | 16 |
| Mus porttype | USB |
| Præstation | |
| Maksimal opløsning | 1280 x 1024 pixel |
| Skanningsinterval | 1,255 sek./side |
| DDC2B support | Ja |
| Hot-swap | Ja |
| Design | |
| Stativ-montering | Ja |
| Produktfarve | Sort |
| Rackkapacitet | 1U |
| Husmateriale | Metal, Plast |
| LED-indikatorer | Ja |
| Display | |
| Indbygget skærm | Ja |
| Skærm | LCD |
| Skærm diagonal | 43,2 cm (17") |
| Skærmvisning (OSD) | Ja |
| Strømstyring | |
| Indgangsspænding | 100-240 V |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Indgangsstrøm | 1 A |
| Strømforbrug (typisk) | 18 W |
| Systemkrav | |
| Understøttede Windows-operativsystemer | Ja |
| Understøttede Linux-operativsystemer | Ja |
| Understøttede Mac-operativsystemer | Ja |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
| Vægt & størrelser | |
| Bredde | 642,7 mm |
| Dybde | 480 mm |
| Højde | 44 mm |
| Vægt | 13,6 kg |
| Emballage indhold | |
| Brugervejledning | Ja |
