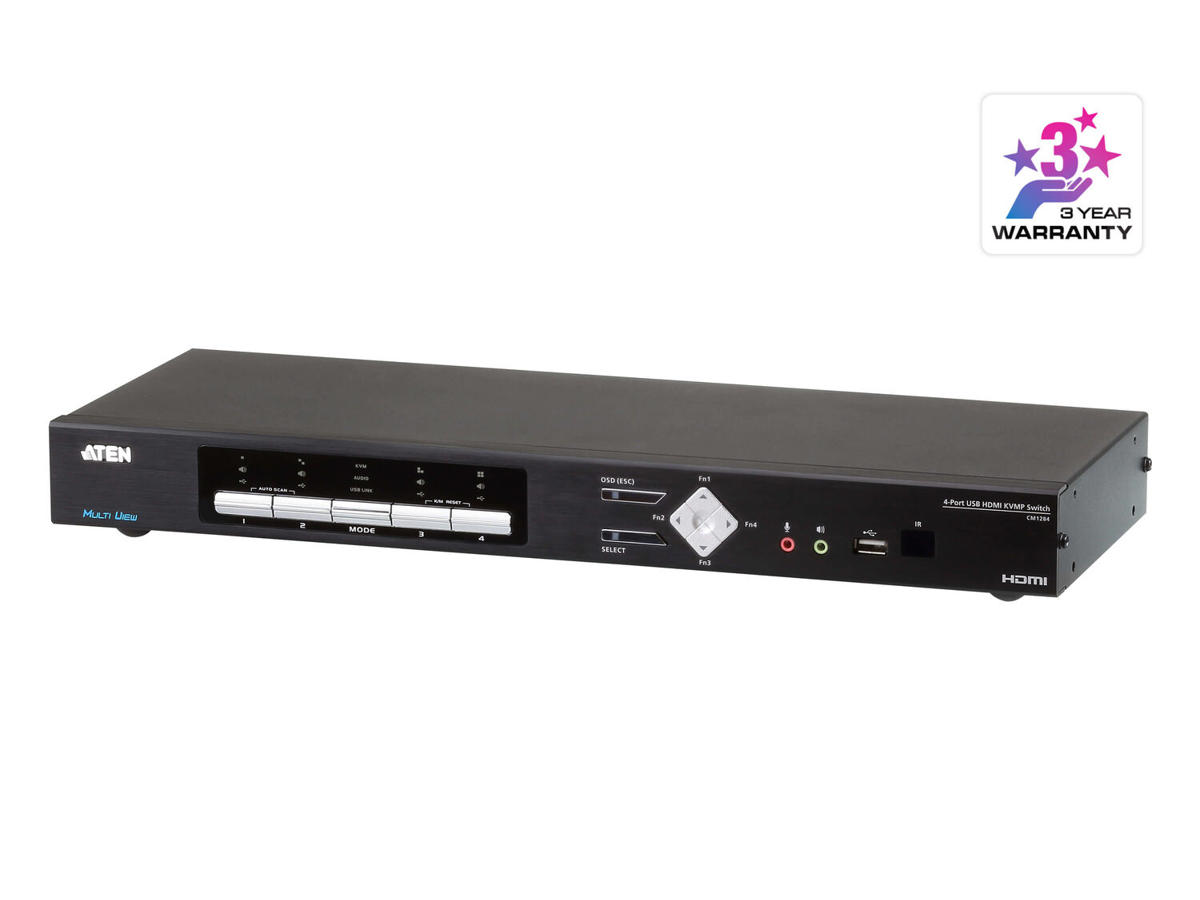

ATEN CM1284 4-Port USB HDMI Multi-View KVMP™ Switch improves the operational efficiency of real-time monitoring. The CM1284 allows users to manage the data more efficiently by allowing multiple sources to be selected, switched, and displayed at the same time with independent keyboard and mouse control. 1x CM1284 4-Port USB HDMI Multi-View KVMP™ Switch 4x LIN5-28V1-V11G USB HDMI Cables 1x LIN2-418K-E12G Power Cord 1x 2XRT-0013G IR Remote Control 1x Rack Mount Kit 1x User Instructions
Porte & Grænseflader | |
Antal kontrollerede computere | 4 |
Tastatur porttype | USB |
Mus porttype | USB |
Video porttype | HDMI |
Konsol porte | 3,5 mm hovedtelefon, HDMI, RJ–45, USB A |
Antal HDMI-porte | 6 |
Antal USB 2.0 Type-B porte | 4 |
Antal konsol USB porte | 2 |
USB stik | Ja |
Antal USB 2.0 type-A hub porte | 2 |
USB-stik type | USB Type-A, USB Type-B |
Lydforbindelse | Ja |
Udgange til hovedtelefoner | 6 |
Antal mikrofon-indgange | 6 |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 2 |
Præstation | |
HD-type | 4K Ultra HD |
Maksimal opløsning | 4096 x 2160 pixel |
Video båndbredde | 30 Hz |
Skanningsinterval | 5,10,15,30,60,90 sek./side |
HDCP | Ja |
Understøtter hot-plug | Ja |
Daisy kæde | Ja |
Firmware kan opgraderes | Ja |
Design | |
Stativ-montering | Ja |
Produktfarve | Sort |
Rackkapacitet | 1U |
Husmateriale | Metal |
Cascadable | Ja |
LED-indikatorer | Ja |
Trykknap | Ja |
Genvejstaster | Ja |
Display | |
Indbygget skærm | Ingen |
Skærmvisning (OSD) | Ja |
Strømstyring | |
Strømkilde | Vekselstrøm |
Vekselstrømsindgangsspænding | 110 - 220 V |
Vekselstrømsindgangsfrekvens | 50/60 Hz |
Indgangsstrøm | 1 A |
Strømforbrug (typisk) | 16 W |
Bæredygtighed | |
Bæredygtighedscertifikater | RoHS |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -10 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
Vægt & størrelser | |
Bredde | 437,2 mm |
Dybde | 164 mm |
Højde | 44 mm |
Vægt | 3,86 kg |
Emballeringsdata | |
Pakkebredde | 131 mm |
Pakkedybde | 540 mm |
Pakkehøjde | 233 mm |
Pakkevægt | 4,26 kg |
Emballage indhold | |
Kabler inkluderet | HDMI, USB |
Brugervejledning | Ja |
AC-adapter inkluderet | Ja |
Rack monteringskit | Ja |
Logistik data | |
Ydre emballage nettovægt | 11,6 kg |
Harmoniseret systemkode (HS) | 85176200 |
Hovedkassens bredde (udvendigt) | 420 mm |
Hovedkassens længde (udvendigt) | 555 mm |
Hovedkassen højde (udvendigt) | 258 mm |
Hovedkassens bruttovægt (udvendigt) | 13,8 kg |
Produkter pr. hovedkasse (udvendigt) | 3 stk |
