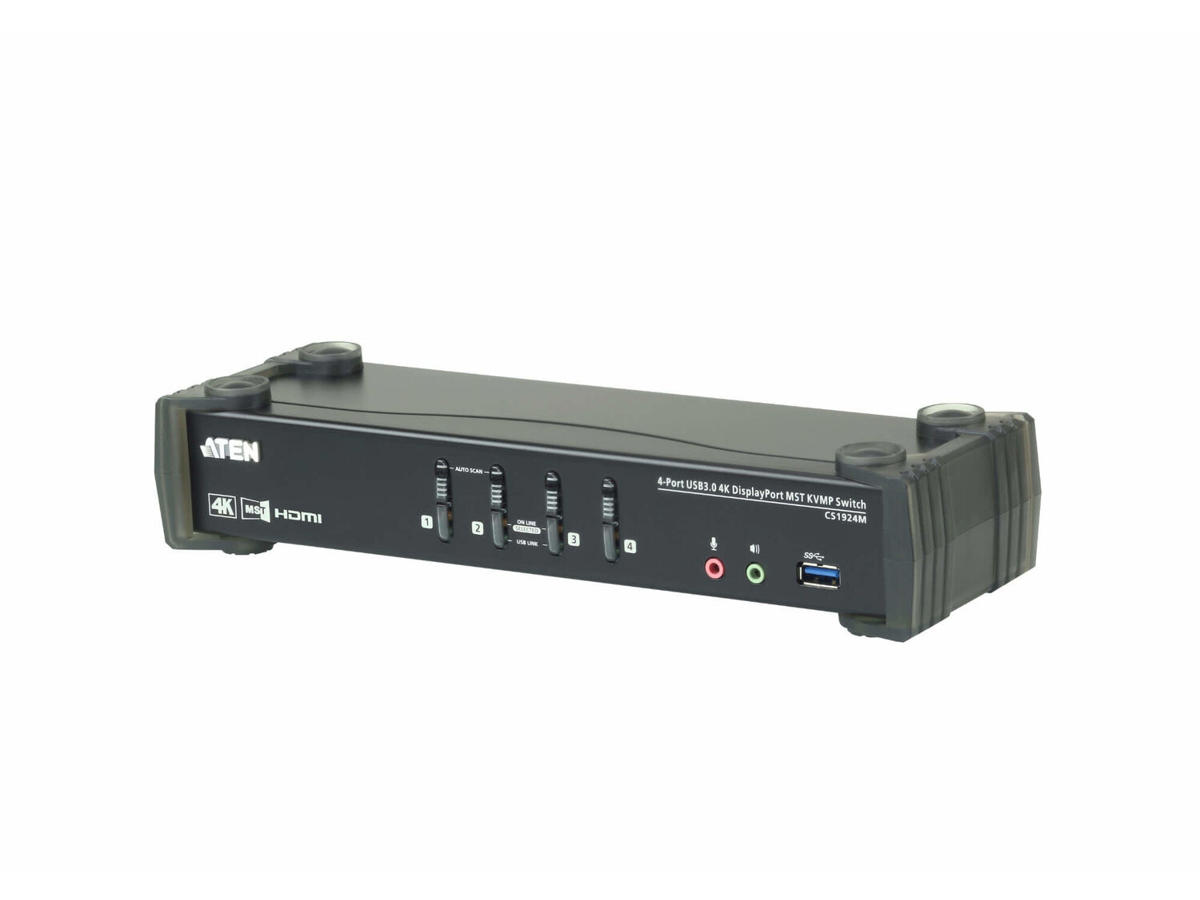

ATEN CS1924M KVM Switch Sort
Varenummer: CS1924M
.
DKK 4.687,50 / Stk
DKK 3.750,00 ekskl. moms
  •
ATEN CS1924M. Tastatur porttype: USB, Mus porttype: USB, Video porttype: HDMI/DisplayPort. HD-type: 4K Ultra HD, Maksimal opløsning: 4096 x 2160 pixel, Video båndbredde: 60 Hz. Produktfarve: Sort, Husmateriale: Metal, Plast. Strømkilde: DC, Udgangsspænding: 5 V, Strømforbrug (typisk): 4,89 W. Bæredygtighedscertifikater: RoHS


Mere information

  • Incorporating the latest Multi-Stream Transport (MST) technology, the CS1924M 4-Port USB 3.0 4K DisplayPort MST KVMP™ Switch is the world’s first DisplayPort KVM switch with a built-in MST hub. The CS1924M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections. To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1924M integrates a USB 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps – allowing you to maximize multitasking operations. The unique independent switching feature allows the KVM switch’s focus to be on one computer while its USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a print server or splitter. Additionally, the switch allows you to share the audio from each of the connected computers and even allows HD audio transmitted through a DisplayPort source. With a rich feature set, the CS1924M is designed to exceed the requirements such as excellent video quality and ultra-fast data transmission speed for gaming, graphic design, animation, and video-editing applications.

  • Porte & Grænseflader
    Antal kontrollerede computere 4
    Tastatur porttype USB
    Mus porttype USB
    Video porttype HDMI/DisplayPort
    Konsol porte 3,5 mm hovedtelefon, 3.5mm mic, DisplayPort, HDMI, USB A
    Antal HDMI-porte 1
    Antal DisplayPorts 5
    DisplayPort-version 1.2
    USB-stik type USB Type-A, USB Type-B
    DC-in-stik Ja
    Præstation
    HD-type 4K Ultra HD
    Maksimal opløsning 4096 x 2160 pixel
    Video båndbredde 60 Hz
    Skanningsinterval 1,99 sek./side
    Design
    Produktfarve Sort
    Husmateriale Metal, Plast
    LED-indikatorer Ja
    Trykknap Ja
    Display
    Indbygget skærm Ingen
    Strømstyring
    Strømkilde DC
    Udgangsspænding 5 V
    Strømforbrug (typisk) 4,89 W
    Bæredygtighed
    Bæredygtighedscertifikater RoHS
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 50 °C
    Opbevaringstemperatur (T-T) -20 - 60 °C
    Relativ luftfugtighed ved drift (H-H) 0 - 80%
    Vægt & størrelser
    Bredde 88 mm
    Dybde 270 mm
    Højde 55,5 mm
    Vægt 920 g
    Emballage indhold
    Kabler inkluderet Lyd (3,5 mm), DisplayPort, USB
    Brugervejledning Ja
    AC-adapter inkluderet Ja
    Logistik data
    Harmoniseret systemkode (HS) 85176200
