Share a mouse, keyboard, USB 5Gbps hub, and 4K 60Hz DisplayPort display between two DisplayPort-enabled computers, featuring EDID Emulation and HDCP engine

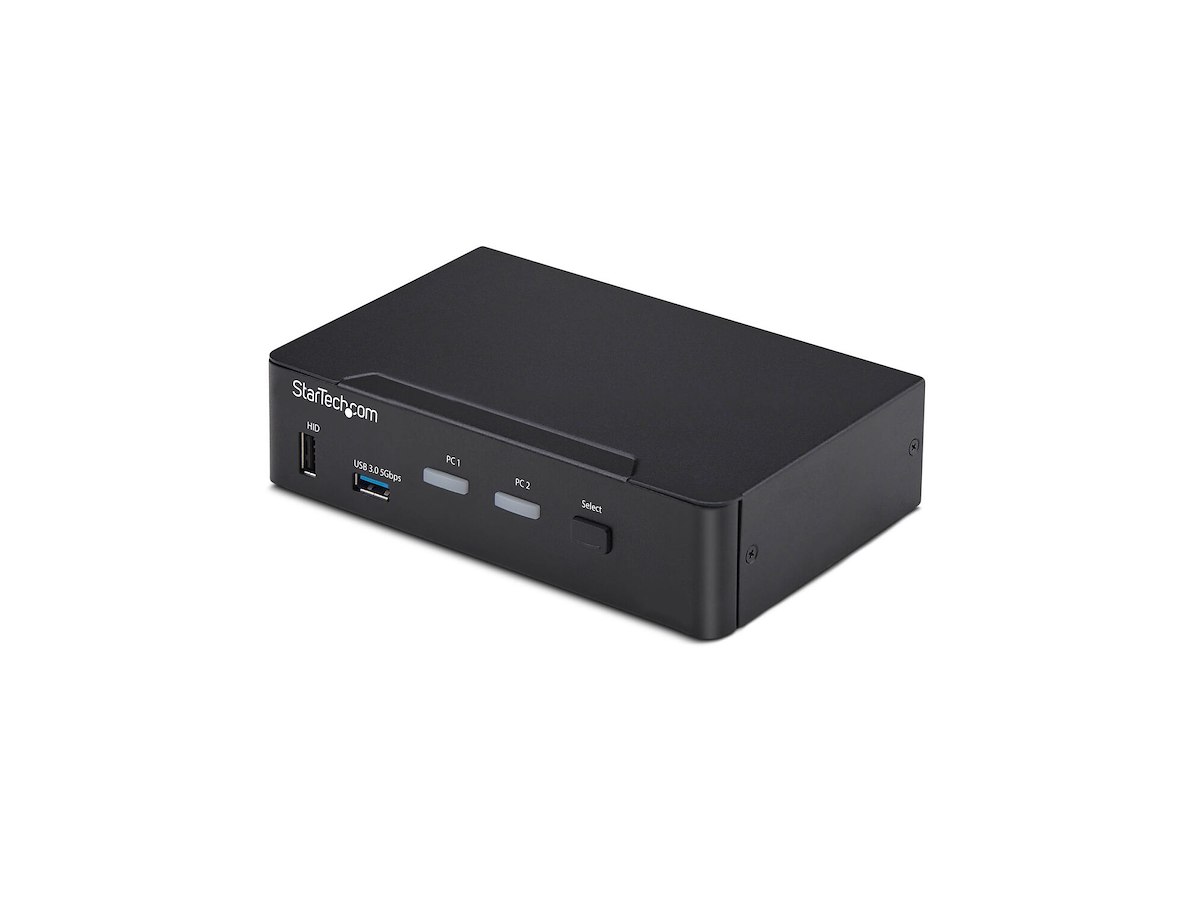

This DisplayPort KVM Switch enables users to switch between two desktops equipped with USB-A and DisplayPort. It allows sharing of a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and two additional USB 2.0 devices.
EDID Control for Display Compatibility
The P2AD122-KVM-SWITCH ensures a frictionless switching experience with 4K 60Hz clarity and HDCP-protected content playback. Advanced EDID management and emulation maintain monitor settings across sources, preventing resolution drops, desktop reshuffling, or blank screens when switching. IT teams save time troubleshooting display mismatches, while end-users enjoy uninterrupted workflows for CAD, content creation, and high-end editing.
Customizable Switching
This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.
No Drivers or Software Required
The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M-Series).
Reliable Performance
The rugged metal case helps prevent electromagnetic interference (EMI). 4kV Air/4kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation. -
Porte & Grænseflader Antal kontrollerede computere 2 Tastatur porttype USB Mus porttype USB Video porttype DisplayPort Konsol porte 3ˌ5 mm hovedtelefon, DisplayPort, USB A Antal DisplayPorts 2 DisplayPort-version 1.2 Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-B porte 2 Antal konsol USB porte 4 Antal konsol displayporte 1 USB stik Ja Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte 2 Lydforbindelse Ja Antal mikrofon-indgange 2 DC-in-stik Ja Præstation HD-type 4K Ultra HD Maksimal opløsning 3840 x 2160 pixel Dataoverførselshastighed (maks.) 5 Gbit/sek. Skanningsinterval 3,8,15,30 sek./side Design Stativ-montering Ingen Produktfarve Sort Husmateriale Stål Maksimal kabellængde 3 m LED-indikatorer Ja Trykknap Ja Genvejstaster Ja Gennemsnitstid mellem fejl (MTBF) 130000 t Display Indbygget skærm Ingen Skærmvisning (OSD) Ingen Strømstyring Strømkilde DC Indgangsspænding 100 - 240 V Indgangsstrøm 1 A Udgangsstrøm 3 A Strømforbrug (typisk) 36 W Strømstiktype Type M Kompatible strømplug typer AU, EU, UK Bæredygtighed Compliance-certifikater Federal Communications Commission (FCC), RoHS, Lov om handelsaftaler (TAA) Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 100 mm Dybde 160 mm Højde 40 mm Vægt 640 g Emballeringsdata Pakkebredde 238 mm Pakkedybde 184 mm Pakkehøjde 89 mm Emballage indhold AC-adapter inkluderet Ja Gummifødder Ja Logistik data Hovedkassens bredde (udvendigt) 397 mm Hovedkassens længde (udvendigt) 257 mm Hovedkassen højde (udvendigt) 300 mm Produkter pr. hovedkasse (udvendigt) 6 stk Andre funktioner IP kontrol Ingen
