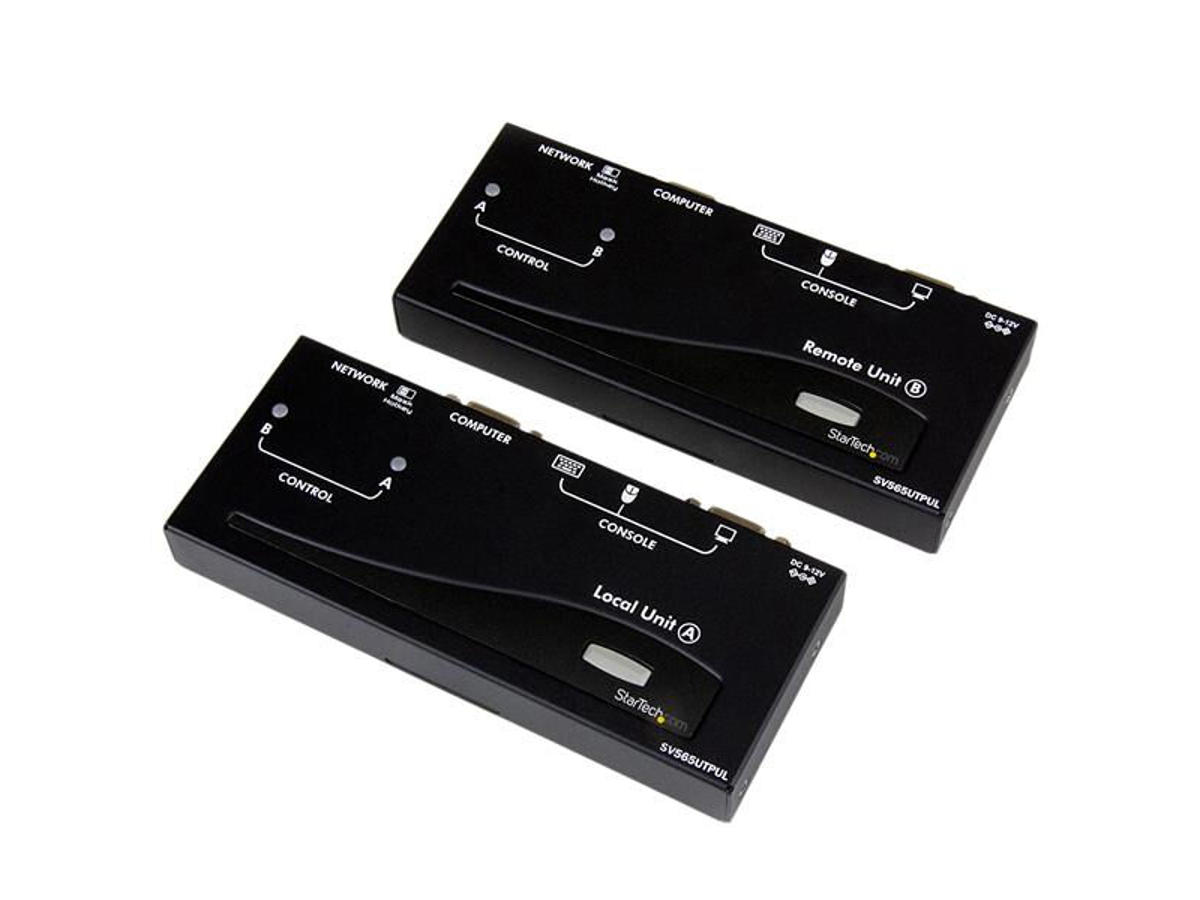

The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away.
You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Great for high definition resolutions, with support of UXGA (1600 x 1200) and WUXGA (1920 x 1200)
- Remote to local switching means that the computer or console being extended can still be accessed locally without the need to unplug/replug any connections
- Backed by a StarTech.com 3 year hardware warranty and lifetime technical support
| Funktioner | |
| Type | Sender & modtager |
| Forbindelsesteknologi | Ledningsført |
| Maksimal overførselsafstand | 300 m |
| Stativ-montering | Ingen |
| Maksimal analog opløsning | 1920 x 1200 pixel |
| KVM port valg | Genvejstaster, Trykknapper |
| Produktfarve | Sort |
| Plug and play | Ja |
| Sender | |
| Sender til video porttype | VGA |
| Sender til lokal tastatur/mus porttype | USB |
| Modtager | |
| Modtager til lokal video porttype | VGA |
| Modtager til lokale tastatur/mus porttype | USB |
| Strømstyring | |
| Vekselstrømsindgangsspænding | 110-240 V |
| Udgangsspænding for vekselstrømsadapter | 12 V |
| Vekselstrømsadapterens udgangsstrøm | 1,5 A |
| Vægt & størrelser | |
| Transmitter bredde | 15,7 cm |
| Transmitter dybde | 7 cm |
| Transmitter højde | 2 cm |
| Transmitter vægt | 1,5 kg |
| Modtager bredde | 15,7 cm |
| Modtager dybde | 7 cm |
| Modtager højde | 2 cm |
| Modtager vægt | 1,5 kg |
| Emballeringsdata | |
| Pakkebredde | 197 mm |
| Pakkedybde | 294 mm |
| Pakkehøjde | 72 mm |
| Pakkevægt | 1,37 kg |
| Emballage indhold | |
| Kabler inkluderet | KVM, USB, VGA |
| Brugervejledning | Ja |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
| Tekniske detaljer | |
| Maksimal opløsning | 1920 x 1200 pixel |
| Vægt | 1,5 kg |
| Logistik data | |
| Harmoniseret systemkode (HS) | 84733080 |
