Varenummer: C15012-USB-EXTENDER
Mere information
-
Connect a remote USB 2.0 device to your computer over long distances
Extend a USB 2.0 connection up to 492 ft (150 m) with this USB Extender Kit. Connect the transmitter to the receiver, using existing Ethernet cabling that is Cat5e or better (e.g., Cat 6, 6a, etc.). No software or configuration is required. Conveniently control remote USB devices in warehouses, classrooms, board rooms, and other long-range application environments.
Overcome Distance Limitations
This USB Extender Kit enables you to exceed the limitations posed by traditional USB cable lengths, to establish long-range USB connections. Use this kit for a wide variety of applications such as remote surveillance and monitoring with a webcam (up to 1080p resolution), controlling machines at a distance, remote printing, connecting retail barcode scanners, and many other applications. In addition, the remote unit is connected to a power source, using the included power adapter, for applications requiring USB bus power.
Rugged Durability

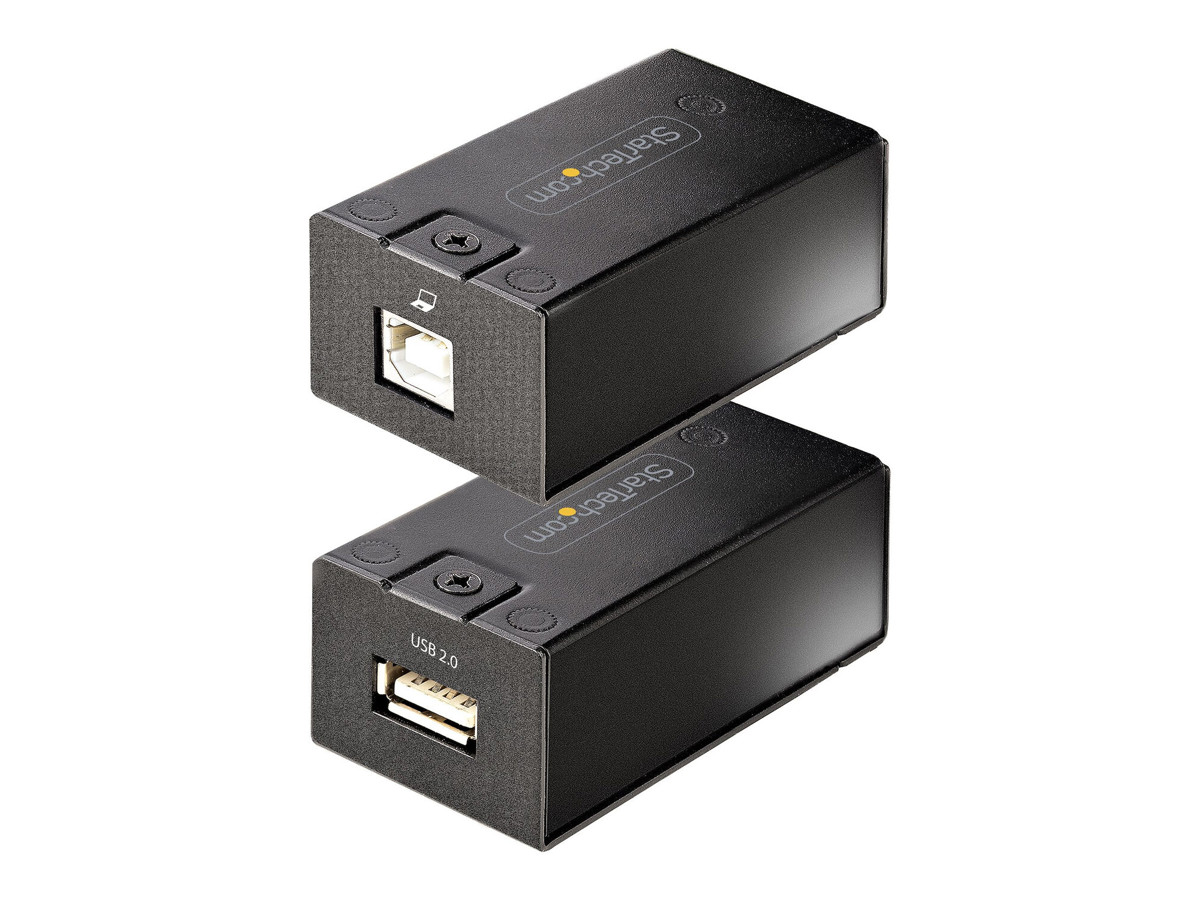

The local and remote units feature a metal exterior for extra protection and longevity in harsher environments. With dimensions of only 1.3 x 1.0 x 2.65 in (32.2 x 25.4 x 67.3 mm), both units are very compact, allowing for installations in tight spaces.
Ease of Use
The USB over Ethernet cable extender kit is compatible with any operating system and does not require any additional software to work. Set up the units by connecting them on a point-to-point connection, using your existing Ethernet cabling (Cat5e or better). This kit is not compatible with network switches and routers. The Extender is compatible with USB 2.0, USB 1.1, and USB 1.0 peripherals.
The C15012-USB-EXTENDER is TAA compliant and backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage -
Tekniske detaljer Type Konsol sender & modtager Dataoverførselshastighed 480 Mbit/s Maksimal overførselsafstand 150 m Produktfarve Sort Husmateriale Metal LED-indikatorer Strøm Understøttede kabeltyper Cat5e, Cat6 Compliance-certifikater CE, RoHS Plug and play Ja Porte & Grænseflader Antal USB 2.0 type-A-porte 1 Antal USB 2.0 Type-B porte 1 Antal RJ-45-porte 2 DC-in-stik Ja Vægt & størrelser Bredde 67 mm Dybde 32 mm Højde 25 mm Vægt 173 g Pakkebredde 220 mm Pakkedybde 194 mm Pakkehøjde 60 mm Pakkevægt 173 g Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Emballage indhold Kabler inkluderet USB Type-A til USB Type-B AC-adapter inkluderet Ja Strømstyring Strømkilde type DC Strømforbrug (typisk) 15 W Indgangsspænding 100 - 240 V Indgangsstrøm 0.6 A Udgangsspænding 5 V Udgangsstrøm 3 A Strømstiktype Type H Logistik data Hovedkassens bredde (udvendigt) 400 mm Hovedkassens længde (udvendigt) 400 mm Hovedkassen højde (udvendigt) 278 mm Produkter pr. hovedkasse (udvendigt) 12 stk
