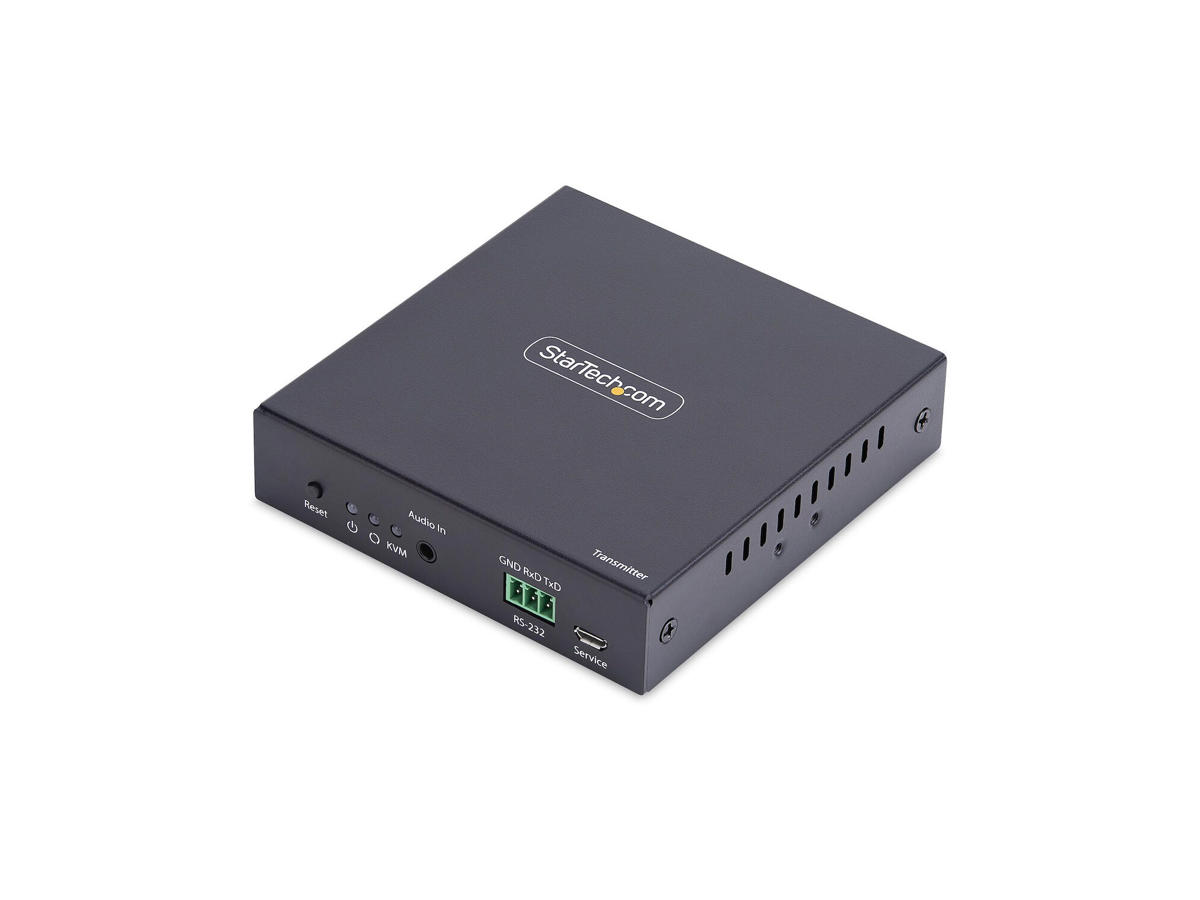

Use this Transmitter unit for the IH2006-KVM-EXTENDER to extend an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio
The AVoIP KVM Transmitter enables remote access to computers over a TCP/IP network using a keyboard, mouse, and 4K 60Hz HDMI monitor when paired with a compatible receiver. Designed as a replacement unit, it ensures continued performance, security, and uptime by protecting systems from unauthorized access and physical damage.
Driver-Free Installation
The plug-and-play design requires no drivers or software, making setup quick and hassle-free. It is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.
Scalable, Flexible, and Future-Proof
Designed to seamlessly integrate with existing IH2006 Series Receivers, this transmitter offers a hassle-free replacement option, keeping your AV infrastructure running smoothly and maximizing uptime.
Professional-Grade Design
The transmitter features a durable metal housing with mounting kit for wall or under-desk installation, along with rubber feet for desktop stability. A local HDMI output allows direct connection to a nearby display, while RS232 and 3.5mm audio passthrough ports enable seamless serial and audio extension.
The StarTech.com Advantage
| Funktioner | |
| Type | Sender |
| Forbindelsesteknologi | Ledningsført |
| Stativ-montering | Ingen |
| Maksimal digital opløsning | 3840 x 2160 pixel |
| Maksimal opdateringshastighed | 60 Hz |
| Produktfarve | Sort |
| Materiale | Metal |
| LED-indikatorer | Ja |
| Sender | |
| Sender til video porttype | HDMI |
| Sender til lokal videoport | Ja |
| Sender til lokal video porttype | HDMI |
| Antal RJ-45 porte (sender) | 1 |
| Sender Micro-USB-porte antal | 1 |
| Porte & Grænseflader | |
| USB porttype | USB Type-C |
| Antal USB 2.0-porte | 1 |
| HDMI-version | 2.0 |
| RS-232-porte | 1 |
| Pc lydindgang | Ja |
| Strømstyring | |
| Strømstiktype | Type M |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Indgangsstrøm | 0.3 A |
| Udgangsspænding for vekselstrømsadapter | 5 V |
| Vekselstrømsadapterens udgangsstrøm | 2 A |
| Strømforbrug (modtager) (maks) | 10 W |
| DC-in-stik | Ja |
| Emballeringsdata | |
| Pakkebredde | 199 mm |
| Pakkedybde | 149 mm |
| Pakkehøjde | 80 mm |
| Pakkevægt | 500 g |
| Emballage indhold | |
| AC-adapter inkluderet | Ja |
| Kabler inkluderet | Nej |
| Monteringsbeslag inkluderet | Ja |
| Inkluderede strømstik typer | ANZ, EU, NA, UK |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -20 - 60 °C |
| Opbevaringstemperatur (T-T) | -30 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 90% |
| Andre funktioner | |
| Compliance-certifikater | Federal Communications Commission (FCC), RoHS |
| Logistik data | |
| Hovedkassens bredde (udvendigt) | 425 mm |
| Hovedkassens længde (udvendigt) | 315 mm |
| Hovedkassen højde (udvendigt) | 420 mm |
| Produkter pr. hovedkasse (udvendigt) | 20 stk |
