Varenummer: IH2006-KVM-EXTENDER
Mere information
-

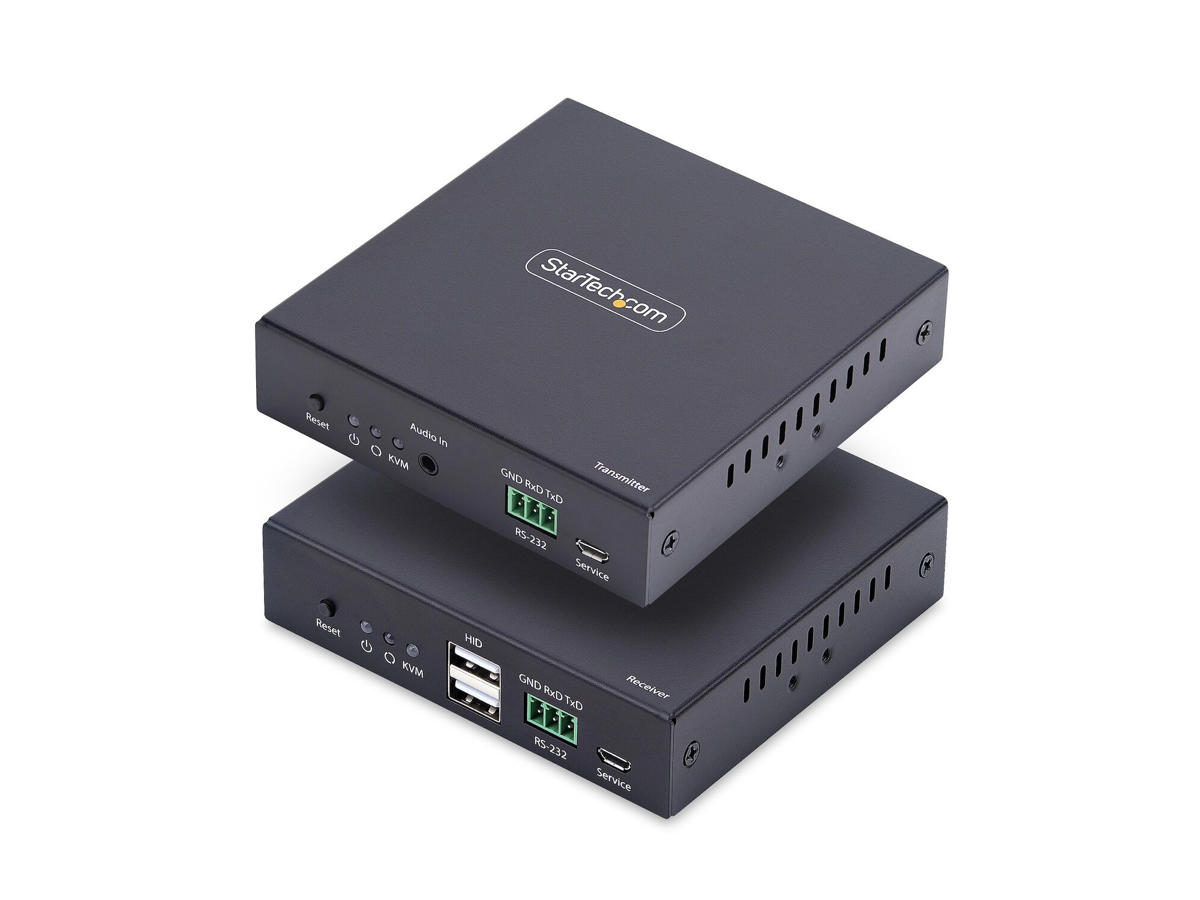

Control an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio
The AVoIP KVM Extender enables remote computer access over a TCP/IP network with a keyboard, mouse, and 4K 60Hz HDMI monitor, keeping systems secure from unauthorized access and physical damage.
Driver-Free Installation
The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.
Scalable, Flexible, and Future-Proof
Designed to grow with your business, the KVM extender supports both one-to-one and one-to-many configurations by adding IP KVM receivers (sold separately), ensuring a flexible and future-ready solution.
Professional-Grade Design
Each unit features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. A local HDMI output on the transmitter allows direct connection to a nearby display, while RS232 and 3.5mm audio passthrough ports enable serial and audio extension.
The StarTech.com Advantage -
Funktioner Type Sender & modtager Forbindelsesteknologi Ledningsført Understøttede kabeltyper Cat6 Stativ-montering Ingen Maksimal digital opløsning 3840 x 2160 pixel Maksimal opdateringshastighed 60 Hz Skærmvisning (OSD) Ingen Produktfarve Sort LED-indikatorer Ja Sender Sender til video porttype HDMI Sender til lokal videoport Ja Sender til lokal video porttype HDMI Antal RJ-45 porte (sender) 1 Sender Micro-USB-porte antal 1 Modtager Modtager til lokal video porttype HDMI Antal RJ-45 porte (modtager) 1 Modtager Micro-USB-porte antal 1 Modtager USB Type-A-porte antal 2 Porte & Grænseflader USB porttype USB Type-C Antal USB 2.0-porte 1 HDMI-version 2.0 RS-232-porte 2 Pc lydindgang Ja PC-lydudgang Ja Strømstyring Strømstiktype Type M Vekselstrømsindgangsspænding 100 - 240 V Indgangsstrøm 0.3 A Udgangsspænding for vekselstrømsadapter 5 V Vekselstrømsadapterens udgangsstrøm 2 A Strømforbrug (sender) (maks) 10 W Strømforbrug (modtager) (maks) 10 W DC-in-stik Ja Emballeringsdata Pakkebredde 240 mm Pakkedybde 176 mm Pakkehøjde 80 mm Pakkevægt 1,1 kg Emballage indhold AC-adapter inkluderet Ja Monteringsbeslag inkluderet Ja Inkluderede strømstik typer ANZ, EU, NA, UK Driftsbetingelser Driftstemperatur (T-T) -20 - 60 °C Opbevaringstemperatur (T-T) -30 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 90% Andre funktioner Gennemsnitstid mellem fejl (MTBF) 10000 t Compliance-certifikater Federal Communications Commission (FCC), RoHS Logistik data Hovedkassens bredde (udvendigt) 380 mm Hovedkassens længde (udvendigt) 270 mm Hovedkassen højde (udvendigt) 420 mm Produkter pr. hovedkasse (udvendigt) 10 stk
