Varenummer: FD121-KVM-EXTENDER
Mere information
-

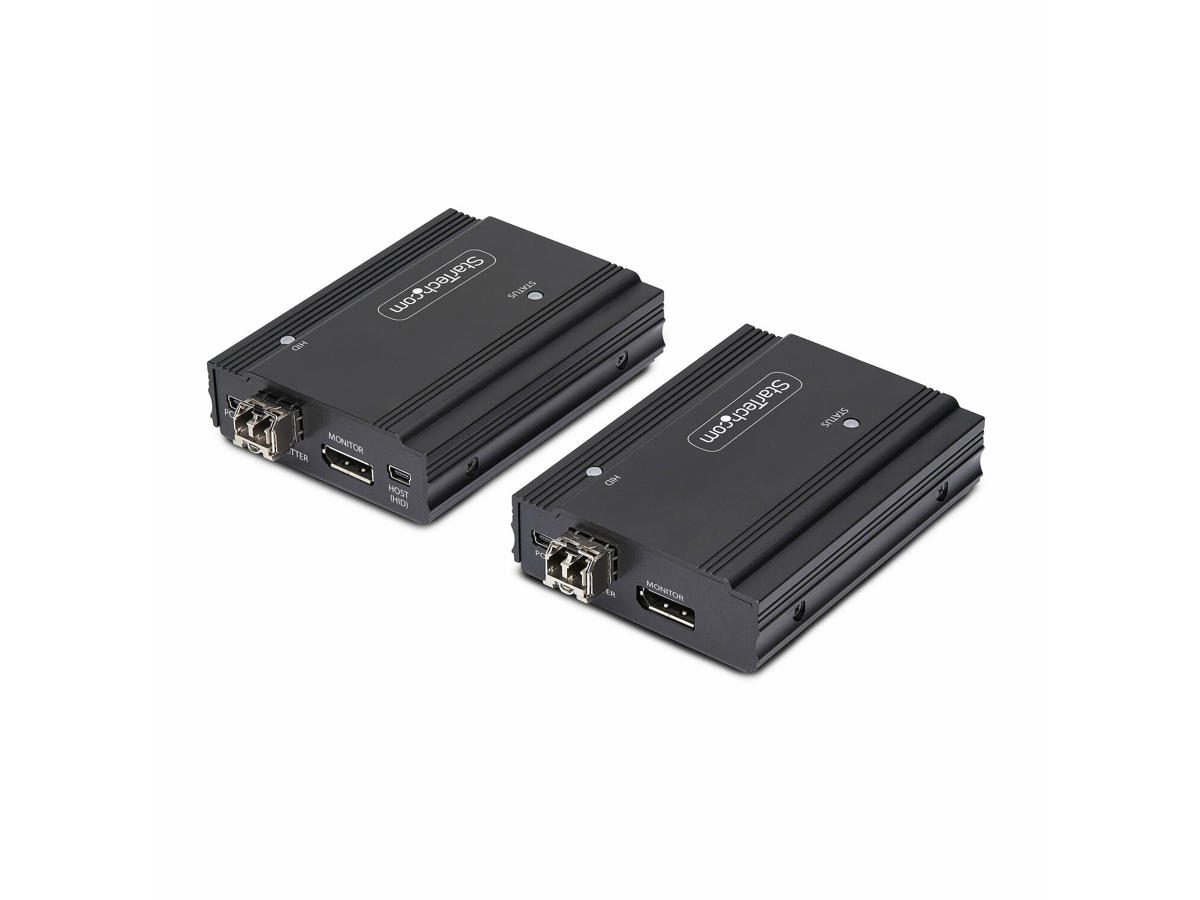

Control a DisplayPort-equipped computer or KVM switch up to 300m (985ft) away over fiber-optic cable
The Fiber Optic KVM Extender allows for control of a KVM switch, console, or PC from a distance of up to 984ft (300m).
4K 60Hz DisplayPort Video
The transmitter/receiver kit extends 4K 60Hz DisplayPort video, supporting UHD resolutions up to 3840x2160 at 60Hz (4:4:4). It is DP 1.2 compliant and includes EDID pass-through for real-time display information, ensuring optimal signal quality and compatibility.
Universal Compatibility
The KVM Console Extender does not require any drivers or software for installation. The point-to-point fiber connection eliminates the need for configuring or managing network settings. The extender is compatible with all operating systems, including Windows, macOS, and Linux. The SFP+ slots support both single and multi-mode MSA-compliant modules.
Built-In USB Hub
Three USB ports allow users to connect peripherals such as a mouse and keyboard, ideal for remote control of source devices, flexible workstation setups, and collaborative multimedia environments.
Durable Design
The extender has a sturdy steel chassis and uses fiber-optic extension to reduce electromagnetic interference (EMI), improving stability and ensuring long-term reliability. Its rugged design makes it suitable for installation in various environments.
The StarTech.com Advantage -
Funktioner Type Sender & modtager Forbindelsesteknologi Ledningsført Maksimal overførselsafstand 300 m Maksimal digital opløsning 4096 x 2160 pixel Maksimal opdateringshastighed 60 Hz Understøttede opløsninger 4096 x 2160 @ 60hz 3840 x 2160 @ 60hz 3440 x 1440 @ 60hz 3200 x 1800 @ 60hz 3072 x 1728 @ 60hz 2560 x 1440 @ 60hz 2048 x 1536 @ 60hz 1920 x 1200 @ 60hz 3840 x 1080 @ 60hz 1920 x 1080 @ 60hz 1760 x 990 @ 60hz 1680 x 1050 @ 60hz 1600 x 1200 @ 60hz 1600 x 900 @ 60hz 1440 x 900 @ 60hz 1366 x 768 @ 60hz 1280 x 1024 @ 60hz 1280 x 720 @ 60hz 1128 x 634 @ 60hz 1024 x 768 @ 60hz 800 x 600 @ 60hz Skærmvisning (OSD) Ingen Produktfarve Sort LED-indikatorer Ja Sender Sender til lokal videoport Ja Sender til lokal video porttype DisplayPort Antal understøttede skærme 1 Sender Micro-USB-porte antal 1 Modtager Modtager til lokal video porttype DisplayPort Modtager Micro-USB-porte antal 2 Porte & Grænseflader Antal installerede SFP+ moduler 2 Antal USB 1.1-porte 3 Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Indgangsstrøm 0.3 A Udgangsspænding for vekselstrømsadapter 5 V Vekselstrømsadapterens udgangsstrøm 2 A Strømforbrug (sender) (maks) 10 W Strømforbrug (modtager) (maks) 10 W Vægt & størrelser Transmitter bredde 7,4 cm Transmitter dybde 10 cm Transmitter højde 2,8 cm Transmitter vægt 235 g Modtager bredde 7,4 cm Modtager dybde 10 cm Modtager højde 2,8 cm Modtager vægt 235 g Emballeringsdata Pakkebredde 306 mm Pakkedybde 175 mm Pakkehøjde 70 mm Emballage indhold Kabler inkluderet Mini-USB Hurtig installationsvejledning Ja Inkluderede strømstik typer ANZ, EU, NA, UK Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -10 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Andre funktioner Udvidet display identifikationsdata (EDID) Ja Gennemsnitstid mellem fejl (MTBF) 156000 t Compliance-certifikater RoHS, Lov om handelsaftaler (TAA) Logistik data Hovedkassens bredde (udvendigt) 410 mm Hovedkassens længde (udvendigt) 323 mm Hovedkassen højde (udvendigt) 275 mm Produkter pr. hovedkasse (udvendigt) 6 stk Bæredygtighed Overholdelse af bæredygtighed Ja
