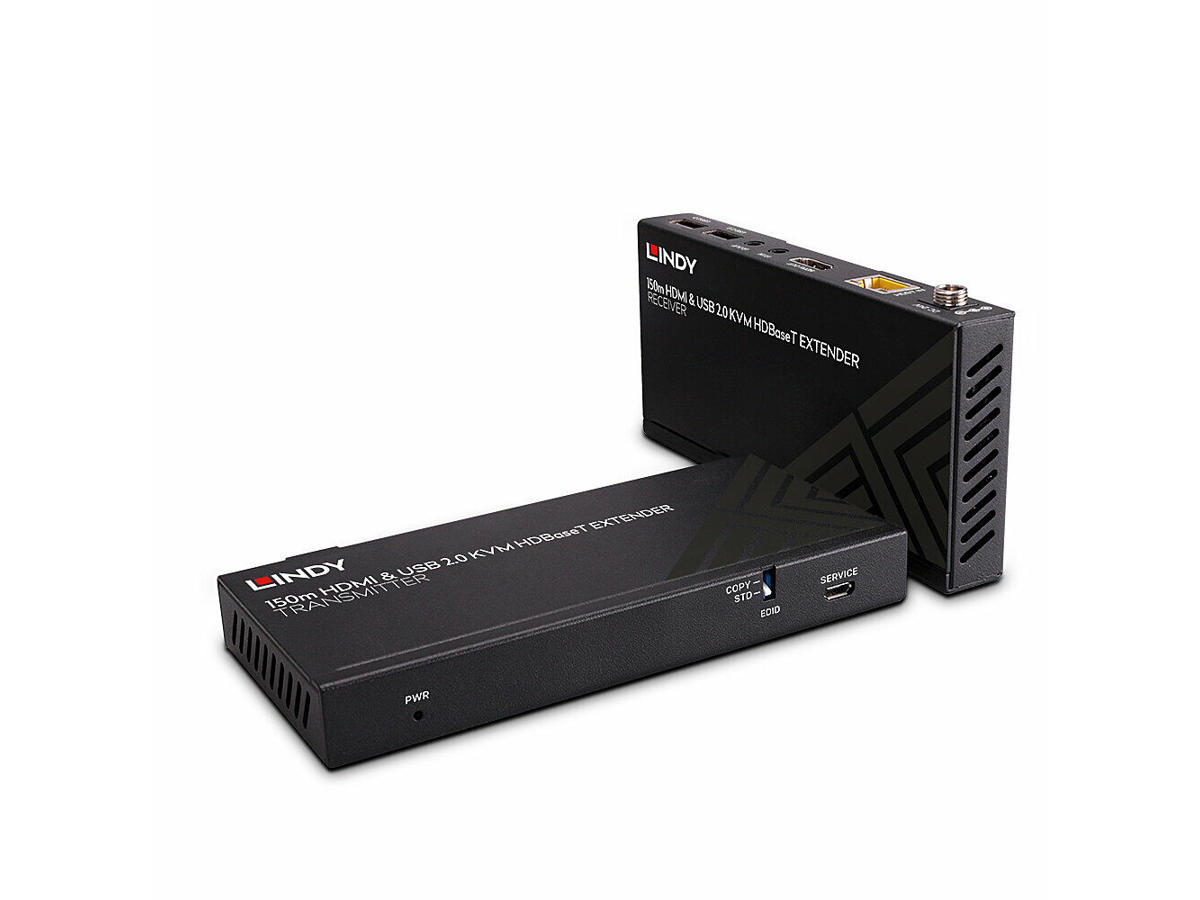

The Lindy 150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
Setting up HDBT mode, this extender supports USB 2.0 devices like mouse, keyboard, and other peripherals to be connected to the receiver to control a source device such as a PC or laptop or for data transfer while in Long Reach mode only USB HID devices are supported. Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT_ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances. -
Funktioner Type Sender & modtager Forbindelsesteknologi Ledningsført Maksimal overførselsafstand 150 m Understøttede kabeltyper Cat6 Maksimal digital opløsning 3840 x 2160 pixel Maksimal opdateringshastighed 60 Hz Farvedybde 12 Bit Understøttede opløsninger 3840 x 2160 1920 x 1080 Produktfarve Sort Materiale Metal Chipsæt VS010-A0 Sender Sender til lokal videoport Ja Sender til lokal video porttype HDMI Antal RJ-45 porte (sender) 1 Sender Micro-USB-porte antal 1 Sender USB Type-B porte antal 1 Modtager Modtager til lokal video porttype HDMI Antal RJ-45 porte (modtager) 1 Modtager Micro-USB-porte antal 1 Modtager USB Type-A-porte antal 2 Porte & Grænseflader HDMI-version 2.0 Fjernbetjening (IR) indgang 2 Fjernbetjening (IR) udgang 2 Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug (sender) (maks) 13,2 W Strømforbrug (modtager) (maks) 13,2 W DC-in-stik Ja Vægt & størrelser Transmitter bredde 14 cm Transmitter dybde 6,5 cm Transmitter højde 1,8 cm Transmitter vægt 790 g Modtager bredde 14 cm Modtager dybde 6,5 cm Modtager højde 1,8 cm Modtager vægt 790 g Emballeringsdata Pakkebredde 245 mm Pakkedybde 185 mm Pakkehøjde 75 mm Pakkevægt 1,02 kg Emballage indhold Kabler inkluderet IR, USB Type-A til USB Type-B Brugervejledning Ja Inkluderede strømstik typer AU, EU, UK, US Skruer inkluderet Ja Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 20 - 90% Andre funktioner HDCP Ja HDCP-version 2.2 Udvidet display identifikationsdata (EDID) Ja Båndbredde 18 Gbit/sek. Infrarødt (IR) frekvens rækkevidde 20 - 60 kHz Compliance-certifikater CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA Bæredygtighed Overholdelse af bæredygtighed Ja
