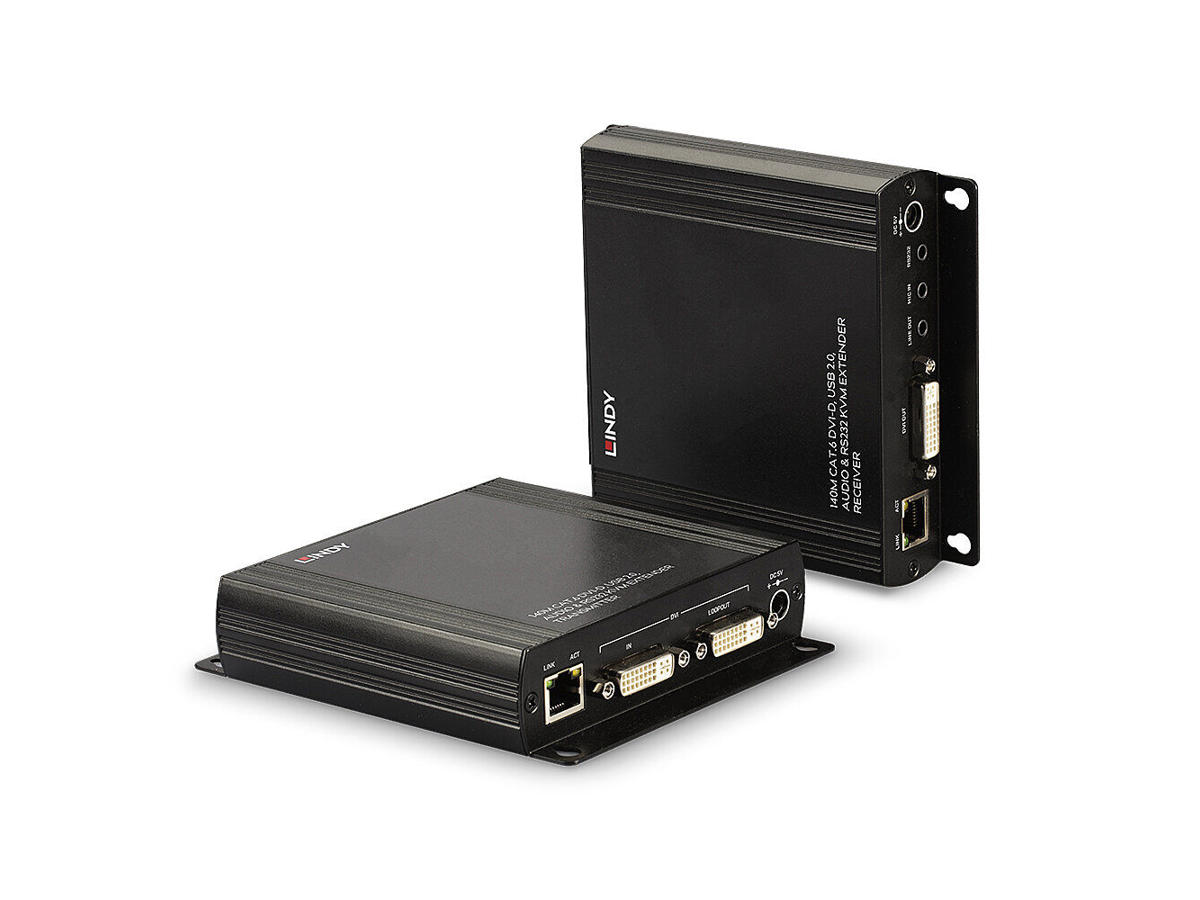

The Lindy Cat.6 DVI-D Single Link, USB, Audio and RS-232 KVM Extender allows users to control a source device such as a PC from a single keyboard, mouse and display up to 140m using a Cat.6 RJ-45 cable. Supports single link resolutions up to 1920x1200 and HDMI signals including Full HD 1080p, 3D and HDCP 1.4. Ideal for KVM applications, the Extender consists of a transmitter and a receiver unit. The transmitter must be connected to a source such as a PC or KVM Switch, while the console with display, keyboard and mouse must be connected to the receiver. It's also possible to connect additional USB 2.0 devices such as storage and hard drives (webcams are not supported).
The extenders built-in EDID function ensures maximum compatibility with the display or projector at the receiver or even at the loop out DVI port on the transmitter, while analogue audio 3.5mm inputs and outputs allow users to connect speakers, microphones and a line-in interface.
RS-232 connections also allow for integration into pre-installed control systems.
This extender provides a simple plug and play installation, with no additional drivers required, great for both professional and first time users. In addition to point-to-point applications, it can be used also via a gigabit network, a rotary switch on both units can pair transmitters with receivers.
Please note: to reach distances longer that 140m, it is possible to add a gigabit network switch or the repeater 42709 inbetween transmitter and receiver (with 42709 the total length supported is up to 280m). -
Funktioner Type Sender & modtager Forbindelsesteknologi Ledningsført Maksimal overførselsafstand 140 m Understøttede kabeltyper Cat6 Maksimal opdateringshastighed 60 Hz Produktfarve Sort Materiale Metal Certificering CE, UKCA, FCC, RoHS, REACH & California Proposition 65 Sender Sender til video porttype DVI-I Antal RJ-45 porte (sender) 1 Modtager Modtager til lokal video porttype DVI-I Antal RJ-45 porte (modtager) 1 Porte & Grænseflader USB porttype USB Type-A/USB Type-B Antal USB 2.0-porte 4 Antal RJ-45-porte 2 Pc lydindgang Ja Vægt & størrelser Transmitter bredde 12,5 cm Transmitter dybde 14 cm Transmitter højde 3 cm Modtager bredde 12,5 cm Modtager dybde 14 cm Modtager højde 3 cm Emballeringsdata Pakkebredde 355 mm Pakkedybde 195 mm Pakkehøjde 60 mm Pakkevægt 1,52 kg Emballage indhold AC-adapter inkluderet Ja Skruetrækker inkluderet Ja Kabler inkluderet Lyd (3ˌ5 mm), RS-232, USB Type-A til USB Type-B Brugervejledning Ja Driftsbetingelser Driftstemperatur (T-T) -20 - 60 °C Opbevaringstemperatur (T-T) -20 - 85 °C Relativ luftfugtighed ved drift (H-H) 0 - 95% Tekniske detaljer Maksimal opløsning 1920 x 1200 pixel Effektkrav 5VDC 2.6A Vægt 1,27 kg Logistik data Harmoniseret systemkode (HS) 84733080
