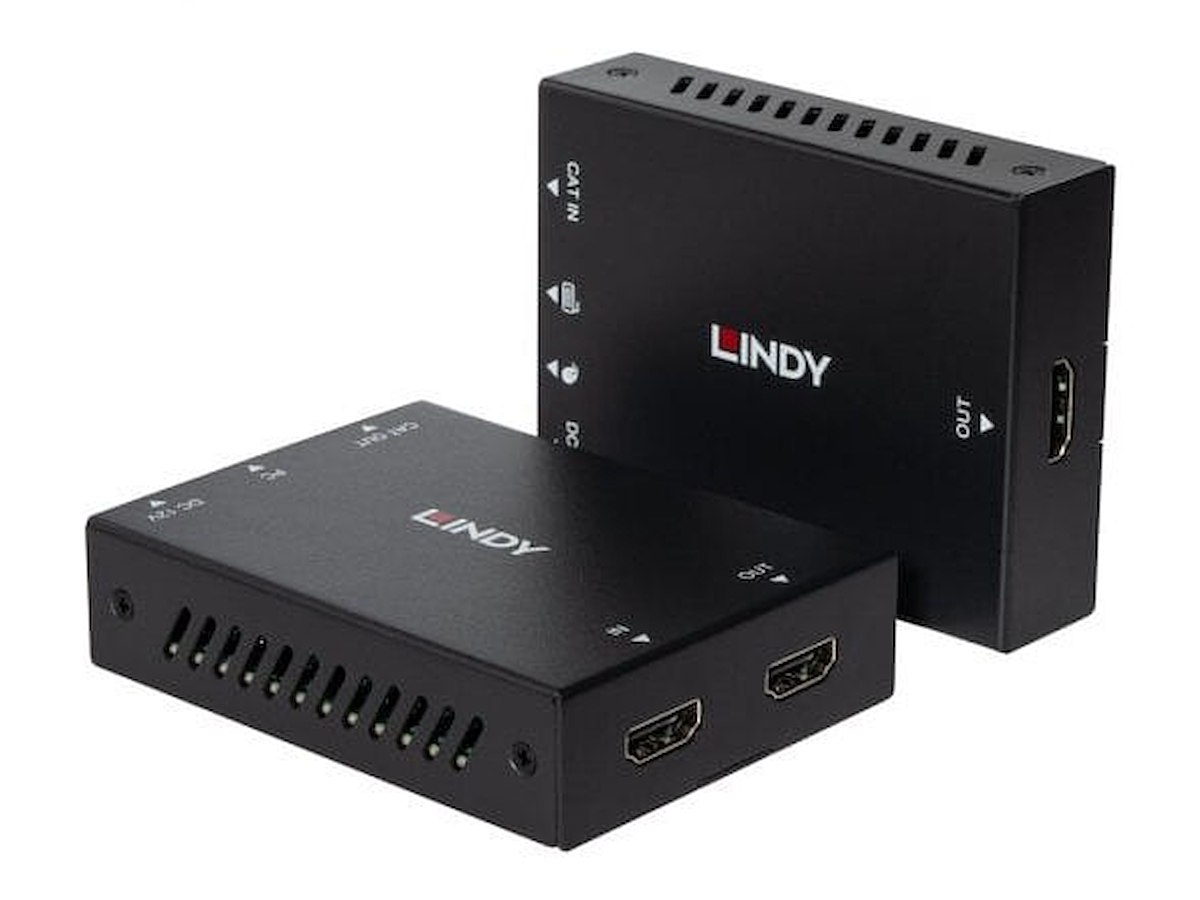

The Lindy Cat.6 HDMI® & USB KVM Extender allow users to control a source device such as a PC from a single keyboard, mouse and display up to 100m using a Cat.6 RJ45 cable.
Supporting resolutions up to Full HD 1920x1080, ideal for high-performance KVM applications and also for creating eye-catching digital signage in retail or engaging setups in larger conference rooms or lectures halls. The transmitter must be connected to a source such as a PC or KVM Switch, the console with display, keyboard and mouse must be connected to the receiver.
The extender features an HDMI® loop-through output on the transmitter which allows for simultaneous viewing using both the local and remote displays.
PoC (Power over Cable) functionality provides additional flexibility; this allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the two units, meaning only a single power supply is required at the transmitter or receiver unit.
Please note that when the PSU is connected to the transmitter to enable the PoC function, the maximum supported distance is 30m for the USB signal and 100m for the video signal; when the PSU is connected to the receiver, the maximum supported distance remains 100m for both USB and video signals.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
This extender provides a simple plug & play installation with no additional drivers required, great for both professional and first time users.
Please note: This product is not designed to be used in conjunction with active network equipment and must only be used in a point to point connection.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. -
Funktioner Type Sender & modtager Forbindelsesteknologi Ledningsført Maksimal overførselsafstand 100 m Understøttede kabeltyper Cat6 Maksimal digital opløsning 1920 x 1080 pixel Maksimal opdateringshastighed 60 Hz Produktfarve Sort Materiale Metal Certificering CE, UKCA, FCC, RoHS, REACH & California Proposition 65 Sender Sender til video porttype HDMI Sender til lokal videoport Ja Sender til lokal video porttype HDMI Antal understøttede skærme 1 Sender til lokal tastatur/mus porttype USB Antal RJ-45 porte (sender) 1 Modtager Modtager til lokal video porttype HDMI Modtager til lokale tastatur/mus porttype USB Antal RJ-45 porte (modtager) 1 Antal lokale videoporte på modtageren 1 Modtager USB Type-A-porte antal 2 Strømstyring Udgangsspænding for vekselstrømsadapter 12 V Vekselstrømsadapterens udgangsstrøm 1 A DC-in-stik Ja Vægt & størrelser Transmitter bredde 9 cm Transmitter dybde 6,8 cm Transmitter højde 2,2 cm Transmitter vægt 550 g Modtager bredde 9 cm Modtager dybde 6,8 cm Modtager højde 2,2 cm Modtager vægt 550 g Emballeringsdata Pakkebredde 215 mm Pakkedybde 135 mm Pakkehøjde 75 mm Pakkevægt 720 g Emballage indhold AC-adapter inkluderet Ja Kabler inkluderet USB Type-A til USB Type-B Brugervejledning Ja Hurtig installationsvejledning Ja Skruer inkluderet Ja Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) -20 - 80% Bæredygtighed Bæredygtighedscertifikater Certified Enviro Cranberries (CEC) Andre funktioner HDCP Ja HDCP-version 1.4 Udvidet display identifikationsdata (EDID) Ja Båndbredde 4,95 Gbit/sek.
