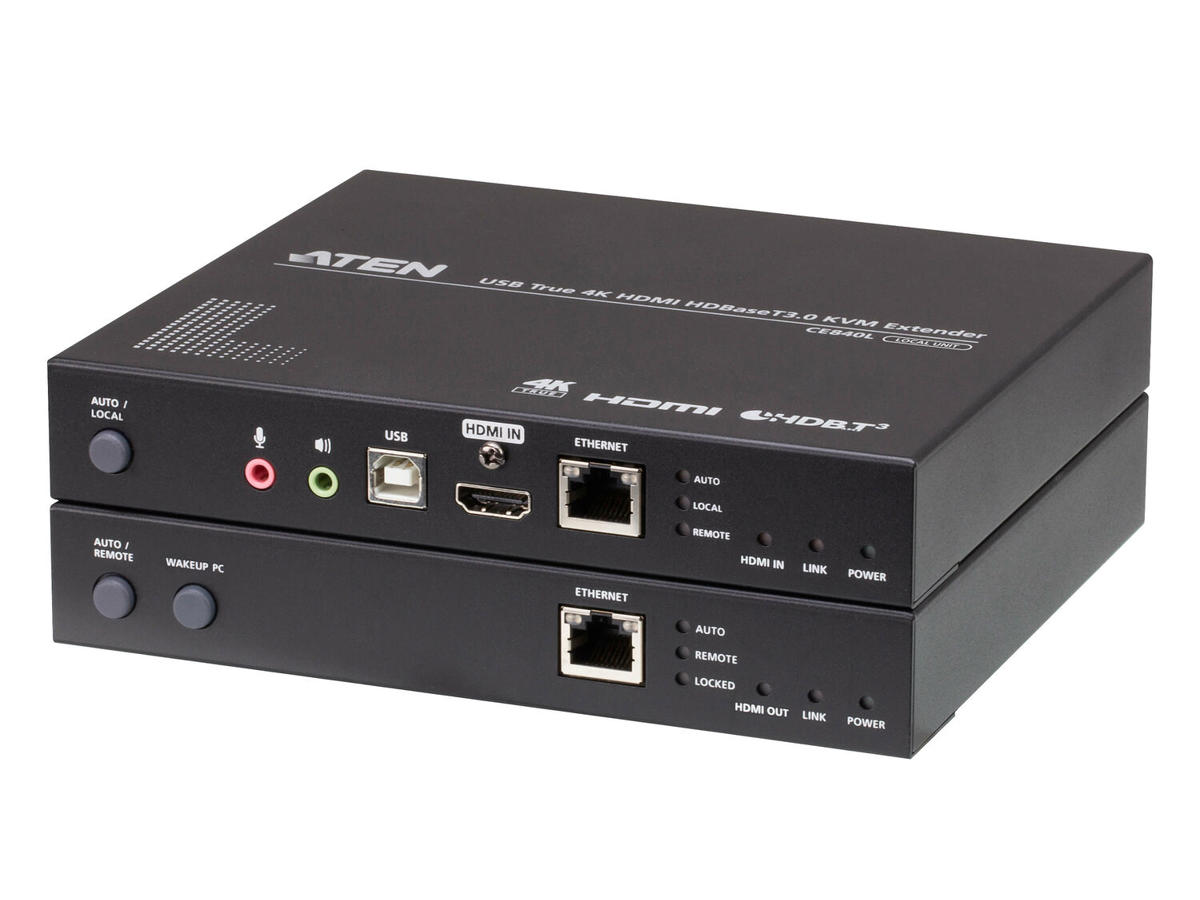

Adopting the latest HDBaseT 3.0 technology, CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender consists of a local unit and a remote unit, enabling uncompressed True 4K HDMI, audio, RS232, Ethernet, and USB signal transmission across 100m over a single Cat 6A cable (ATEN 2L-2920 Cat 6A Cable recommended) or above. Installation is made easy, neat, and cost-efficient with no compromises on high quality distribution of AV content. The CE840 allows for dual console operation via the two USB ports for USB keyboard and mouse connection and the pushbuttons for switching USB control console between the remote and local end. LEDs on the front panel help indicate which USB control mode that is currently on. Moreover, each unit contains an HDMI output port for local control and the other two USB 2.0 ports for USB peripheral connection. Consequently, operators can acquire data and manage equipment in one location, even from a distance.
The CE840 showcases excellent AV performance with no compression and zero latency. In addition to the support for HDR 10+, the extender is also capable of delivering video signals at up to True 4K (3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4) over 100 m. The extender also supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio.
CE840 is an ideal solution for medium to large size applications that require uncompressed AV and control signal extension and remote access and control, including factories, warehouses, data centers, as well as medical and healthcare applications where precise visualization and accurate representation are essential. -
Funktioner Type Sender & modtager Forbindelsesteknologi Ledningsført Maksimal overførselsafstand 100 m Maksimal digital opløsning 4096 x 2160 pixel Understøttede opløsninger 4096 x 2160 3840 x 2160 Produktfarve Sort Materiale Metal LED-indikatorer Ja Sender Sender til video porttype HDMI Sender til lokal videoport Ja Sender til lokal video porttype HDMI Antal RJ-45 porte (sender) 1 Sender USB Type-B porte antal 1 Modtager Modtager til lokal video porttype HDMI Antal RJ-45 porte (modtager) 1 Porte & Grænseflader USB porttype USB Type-B RS-232-porte 1 Strømstyring Strømforbrug (sender) (maks) 7,36 W Strømforbrug (modtager) (maks) 7,37 W DC-in-stik Ja DC spænding 12 V Vægt & størrelser Transmitter bredde 15,6 cm Transmitter dybde 17,8 cm Transmitter højde 2,88 cm Transmitter vægt 820 g Modtager bredde 15,6 cm Modtager dybde 17,8 cm Modtager højde 2,88 cm Modtager vægt 810 g Emballeringsdata Pakkebredde 131 mm Pakkedybde 540 mm Pakkehøjde 233 mm Pakkevægt 2,98 kg Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Andre funktioner HDCP Ja HDCP-version 2.3 Båndbredde 600 MHz, 18 Gbit/sek. Understøttede videotilstande 480p, 600p, 768p, 800p, 900p, 1024p, 1080i, 1080p, 1440p, 2160p Logistik data Oprindelsesland Taiwan Harmoniseret systemkode (HS) 85176200 Hovedkassens bredde (udvendigt) 247 mm Hovedkassens længde (udvendigt) 556 mm Hovedkassen højde (udvendigt) 153 mm Hovedkassens bruttovægt (udvendigt) 3,54 kg
