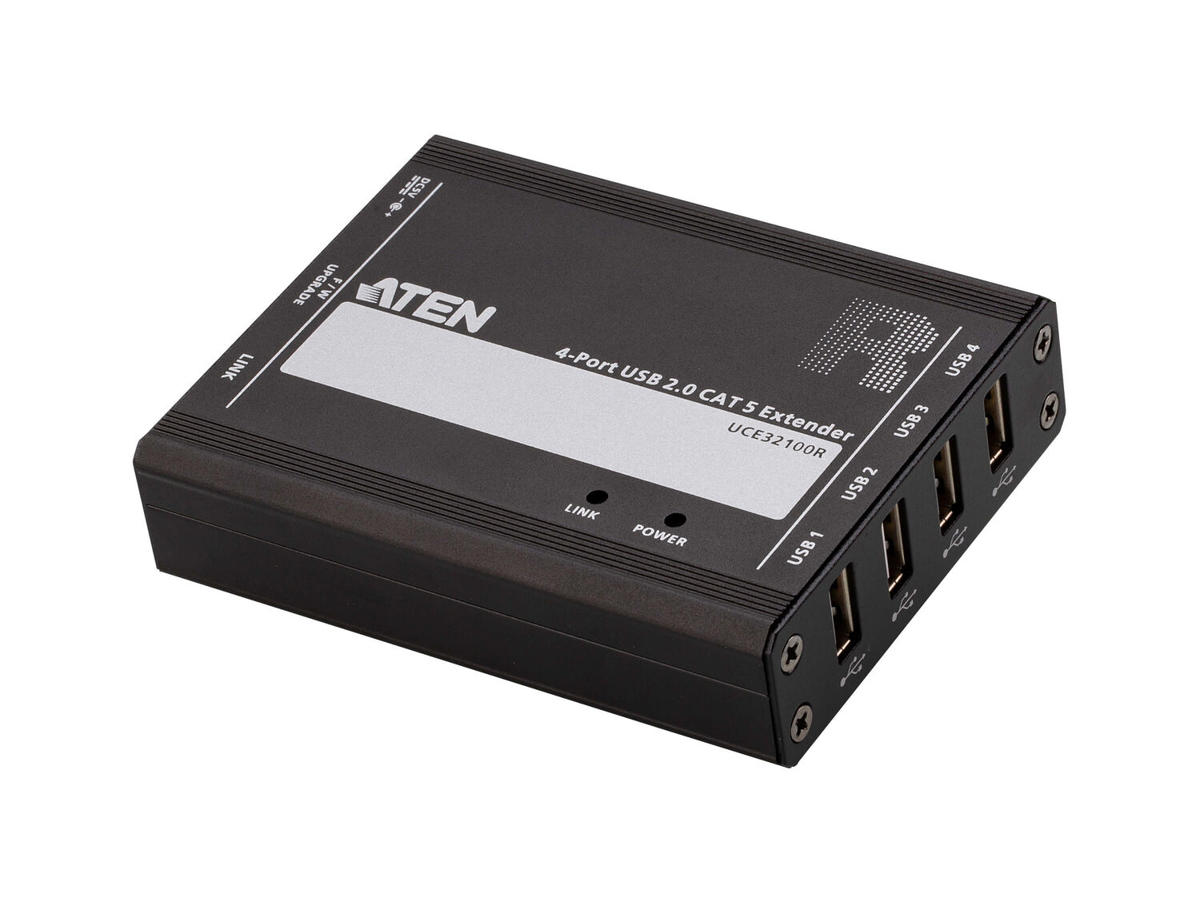

The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.
The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.
A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.
1x UCE32100T USB 2.0 CAT 5 Transmitter
1x UCE32100R USB 2.0 CAT 5 Receiver
1x LIN6-04U1-V1BG USB 2.0 Type-A Male to Type-B Male Cable
1x 0AD8-8005-0MA Power Adapter
1x LIN2-418K-E12G Power Cord
4x Mounting Kit
2x Din Rail
2x DC Jack Lock Kit
2x Rubber Feet Sets
1x User Instructions
| Funktioner | |
| Type | Sender & modtager |
| Forbindelsesteknologi | Ledningsført |
| Maksimal overførselsafstand | 100 m |
| Understøttede kabeltyper | Cat5 |
| Produktfarve | Sort |
| Materiale | Metal |
| LED-indikatorer | Ja |
| Sender | |
| Sender til lokal tastatur/mus porttype | USB |
| Antal RJ-45 porte (sender) | 1 |
| Modtager | |
| Modtager til lokale tastatur/mus porttype | USB |
| Antal RJ-45 porte (modtager) | 1 |
| Emballeringsdata | |
| Pakkebredde | 100 mm |
| Pakkedybde | 283 mm |
| Pakkehøjde | 173 mm |
| Pakkevægt | 1,21 kg |
| Emballage indhold | |
| Brugervejledning | Ja |
| Hurtig installationsvejledning | Ja |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 50 °C |
| Opbevaringstemperatur (T-T) | -20 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
| Relativ luftfugtighed ved opbevaring (H-H) | 0 - 80% |
| Tekniske detaljer | |
| Dimensioner (BxDxH) | 101,5 x 79 x 24,4 mm |
| Vægt | 900 g |
| Logistik data | |
| Ydre emballage nettovægt | 4,5 kg |
| Harmoniseret systemkode (HS) | 84733080 |
| Hovedkassens bredde (udvendigt) | 292 mm |
| Hovedkassens længde (udvendigt) | 517 mm |
| Hovedkassen højde (udvendigt) | 194 mm |
| Hovedkassens bruttovægt (udvendigt) | 6,7 kg |
| Produkter pr. hovedkasse (udvendigt) | 5 stk |
