Varenummer: C10043-USB-EXTENDER
Mere information
-
Extend four USB 3.0 peripherals up to 330ft (100m) over Cat6a/Cat7/Cat8

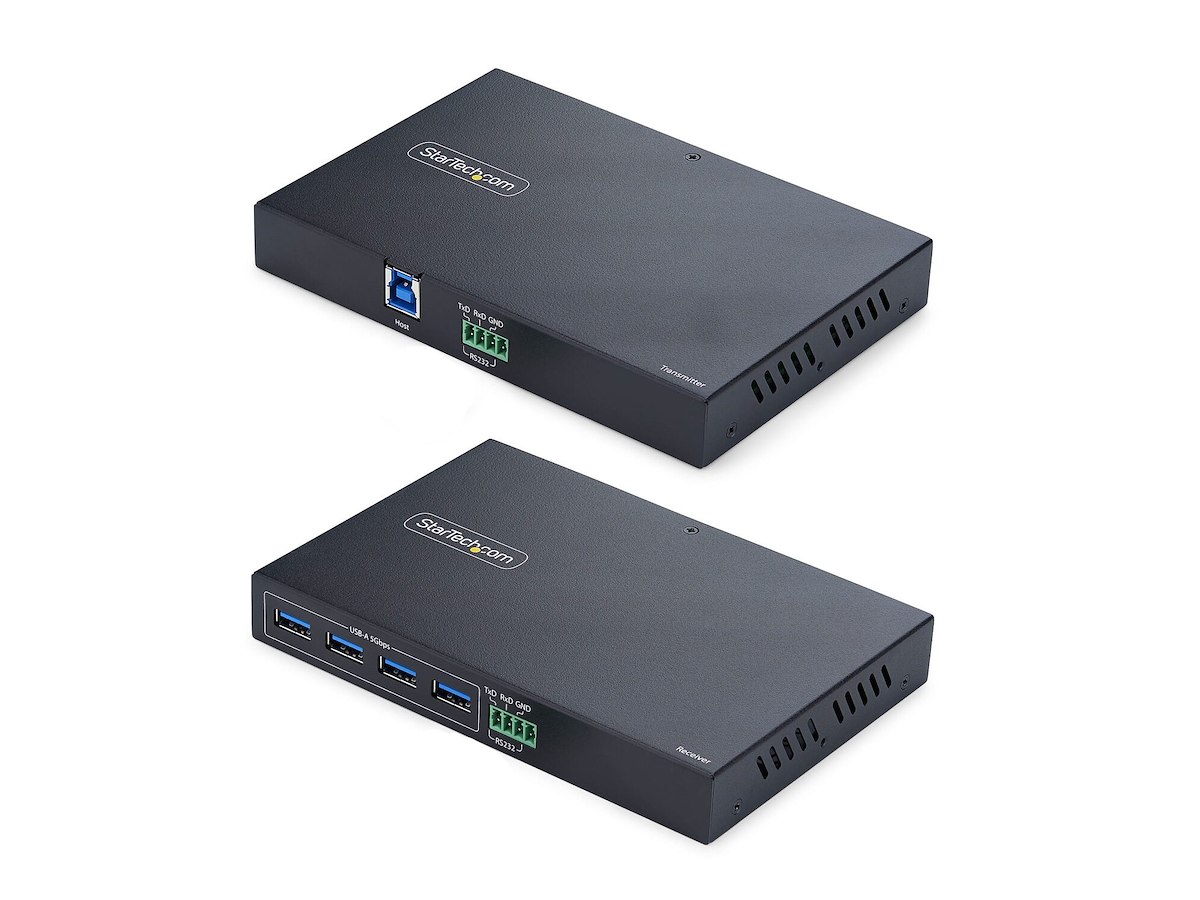

USB 3.0 over Ethernet Extender Kit connects up to four USB peripherals to a host computer up to 330ft (100m) away via a single direct-run Cat6a, Cat7, or Cat8 RJ45 cable.
Overcome USB Distance Limitations
This compact extension adapter kit is ideal for extending the typical reach of USB cables beyond standard lengths. Use it to connect webcams, data acquisition tools, storage devices, and input peripherals in locations such as classrooms, kiosks, industrial workstations, or control rooms. The system supports USB 3.2 Gen 1 (5Gbps) data rates, delivering high-speed performance without sacrificing reliability over long distances.
Flexible Power Over Cable (PoC) Setup
Power either the transmitter or receiver unit with the included power adapter, as both devices share power via the Ethernet cable, simplifying setup and reducing the need for separate power sources at both ends of the link, especially useful in space-constrained or hard-to-access environments.
Support Pro-Grade Integration
Delivers 5Gbps speeds and features RS-232 passthrough for serial control in automation setups. Built with rugged metal housings for enhanced protection and durability.
Driverless and OS-independent, this point-to-point USB extender requires no software and is compatible with Windows, macOS, and Linux. -
Tekniske detaljer Type Konsol sender & modtager Dataoverførselshastighed 5000 Mbit/s Maksimal overførselsafstand 100 m Produktfarve Sort Husmateriale Stål LED-indikatorer Link, Strøm, Host Understøttede kabeltyper Cat6a Compliance-certifikater Lov om handelsaftaler (TAA) Porte & Grænseflader Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 4 Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-B porte 1 Antal mikro-USB-porte 2 RS-232-porte 2 Antal RJ-45-porte 2 DC-in-stik Ja Vægt & størrelser Bredde 100 mm Dybde 150 mm Højde 20,5 mm Vægt 350 g Pakkebredde 250 mm Pakkedybde 170 mm Pakkehøjde 80 mm Pakkevægt 1,2 kg Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Emballage indhold Kabler inkluderet USB Type-A til USB Type-B Monteringssæt Ja Hurtig start guide Ja AC-adapter inkluderet Ja Strømstyring Strømkilde type DC Strømforbrug (typisk) 60 W Indgangsspænding 100 - 240 V Indgangsstrøm 3 A Udgangsspænding 20 V Inkluderede strømstik typer NA, JP, ANZ, UK, EU Klemrække inkluderet Ja Logistik data Hovedkassens bredde (udvendigt) 535 mm Hovedkassens længde (udvendigt) 453 mm Hovedkassen højde (udvendigt) 380 mm Produkter pr. hovedkasse (udvendigt) 10 stk
