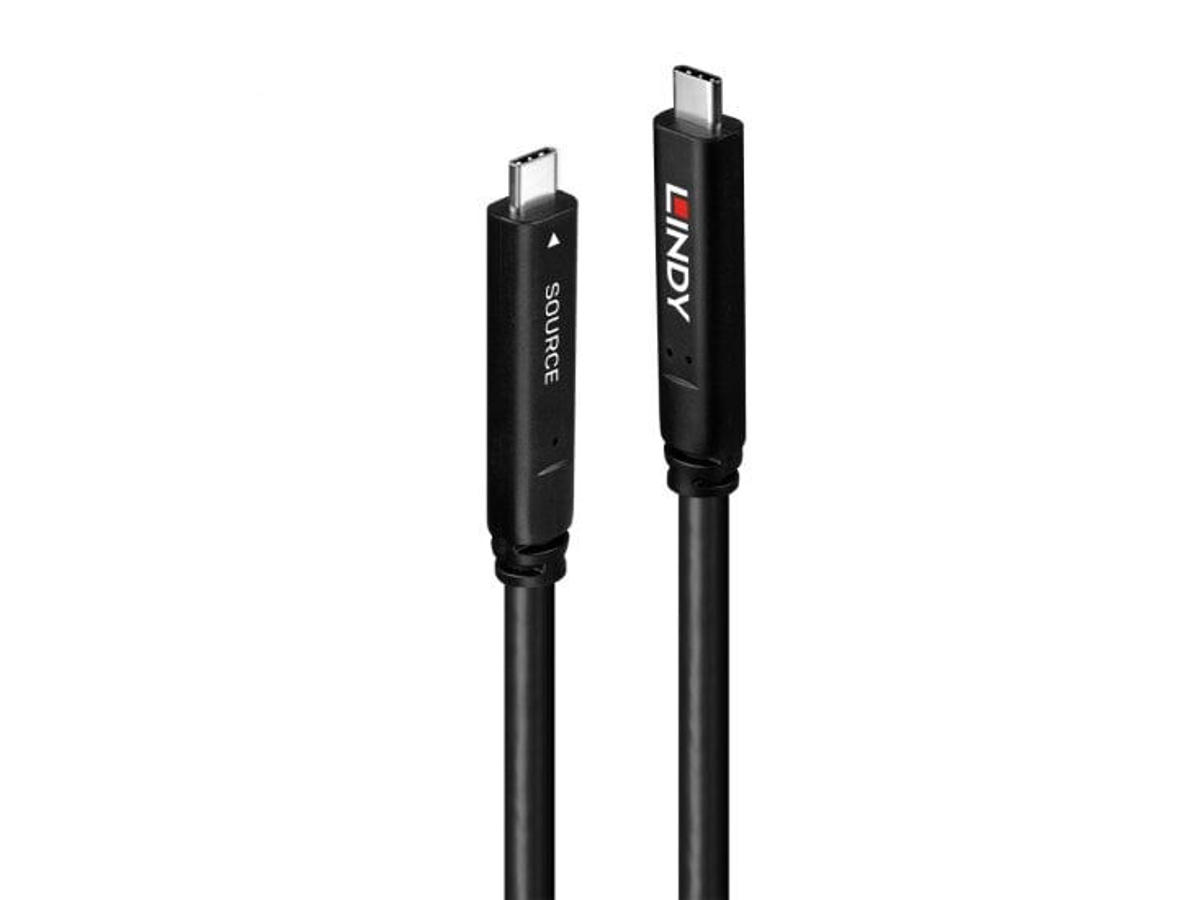

The Lindy USB 3.2 Gen 1 and DP 1.4 Type C Hybrid Cable is a unique solution, which uses optical fiber as high-speed transmission medium to perfectly transmit USB 3.2 as well as DP 1.4 data over a distance of 10m. It combines data, video and USB Power Delivery into a single, high performance cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels. A more flexible construction makes this cable simple to install, with increased resistance to RFI/EMI ensures that the cable can be installed in sensitive environments.
The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.
Please Note:
When using resolutions above 3840x2160@30Hz, USB data transfer rates reduce to 5Gbps, and resolutions above 3840x2160@60Hz transfer rates reduce further to 480Mbps.
USB devices which only support DP signals over 4 lanes might not be compatible.
Displays must have set USB settings to USB 3.0 in order to receive video via Type C.
| Funktioner | |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Stik 1 | USB C |
| Stik 2 | USB C |
| Stik 1 køn | Hanstik |
| Stik 2 køn | Hanstik |
| Produktfarve | Sort |
| Stik 1 formfaktor | Lige |
| Stik 2 formfaktor | Lige |
| AWG-ledningsstørrelse | 21 |
| Kabel kappemateriale | Polyvinylchlorid (PVC) |
| Stik afskærmning | Ja |
| Materiale til stikhus | Plast |
| Kabeltype | Rundt kabel |
| Plug and play | Ja |
| Vægt & størrelser | |
| Kabellængde | 10 m |
| Kabeldiameter | 6,5 mm |
| Vægt | 760 g |
| Emballeringsdata | |
| Pakketype | Kasse |
| Pakkebredde | 240 mm |
| Pakkedybde | 240 mm |
| Pakkehøjde | 65 mm |
| Pakkevægt | 900 g |
| Emballage indhold | |
| Antal pr. pakke | 1 stk |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -10 - 70 °C |
| Opbevaringstemperatur (T-T) | -40 - 85 °C |
| Godkendelser | |
| Certificering | CE, FCC, RoHS & REACH, CP65 |
