Mere information
-

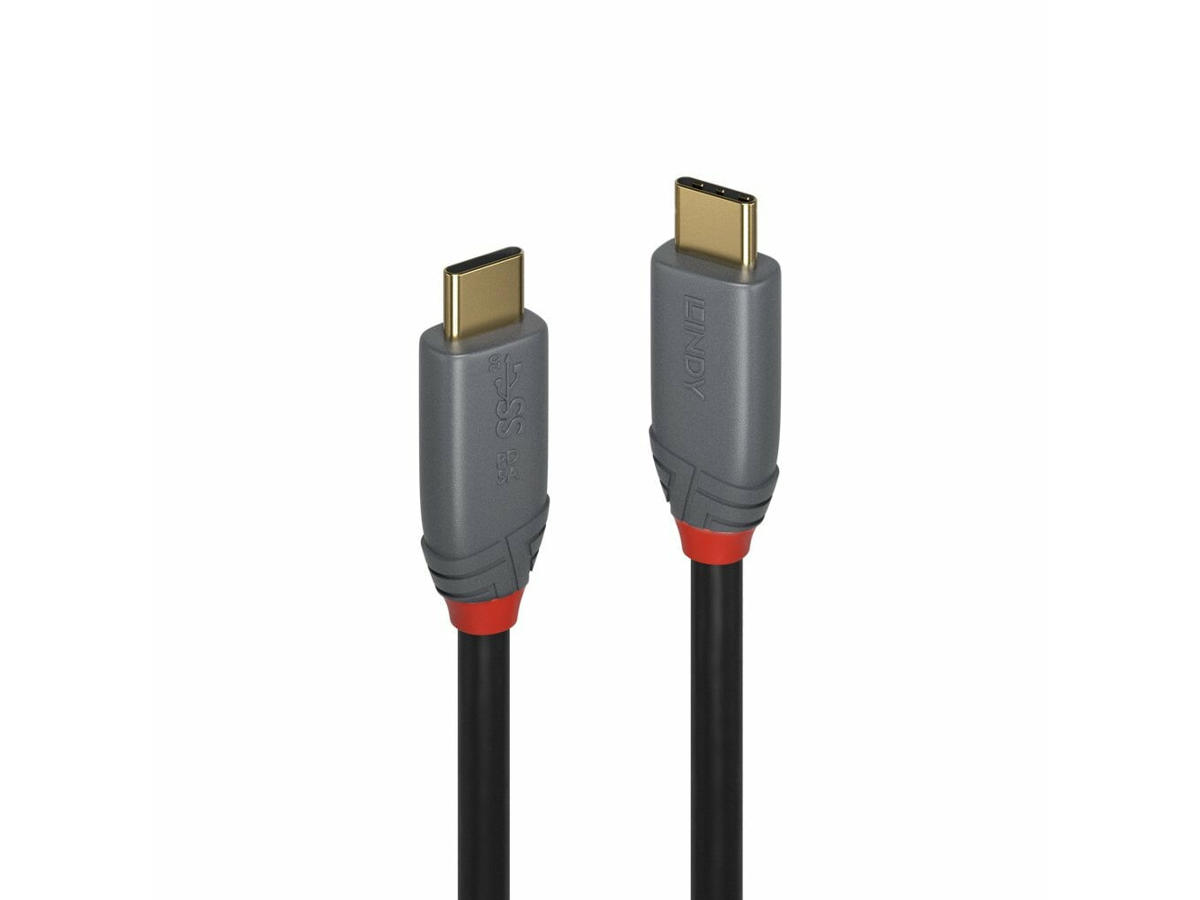

The full-featured Anthra Line USB 3.2 Type C to C, 5A, cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 20Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (20V 5A) of power to devices using the most efficient power delivery profiles. The cable supports DisplayPort Alternate mode at max. 4K 60Hz.
USB Type C features a new reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type C to C, 5A cables are available in the following lengths: 0.5m, 1m, 1.5m and 2m.
We have adapted the naming of our USB 3 cables to follow the updated USB specification.
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps
USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface. -
Funktioner USB version USB 3.2 Gen 2x2 Stik 1 USB C Stik 2 USB C Stik 1 køn Hanstik Stik 2 køn Hanstik Produktfarve Sort Stik 1 formfaktor Lige Stik 2 formfaktor Lige AWG-ledningsstørrelse 32/30/22 Stikforbindelse kontakter plettering Guld Kabel kappemateriale Polyvinylchlorid (PVC) Ledningsmateriale Fortinnet kobber Stik skjold materiale Kobber Maksimal dataoverførselshastighed 10000 Mbit/s, 20 Gbit/sek. Kabelfarve Sort Plug and play Ja USB strømforsyning Ja USB strømforsyning revision 3.0 USB strømforsyning op til 100 W Nominel dæmpning 0.5Mhz-15Ghz?40dB Strømstyring Indgående strøm (maks.) 5 A Udgangsspænding 20 V Udgangsstrøm (maks.) 5 A Vægt & størrelser Kabellængde 2 m Kabeldiameter 5,4 mm Bredde 13 mm Dybde 41 mm Højde 7,75 mm Emballeringsdata Pakketype Polybag Pakkebredde 20 mm Pakkedybde 174 mm Pakkehøjde 194 mm Emballage indhold Antal pr. pakke 1 stk Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Godkendelser Compliance-certifikater REACH, RoHS, UL Certificering RoHS, REACH, California Proposition 65 & UL Tekniske detaljer Husmateriale Termoplastisk elastomer (TPE) Logistik data Produkter pr. hovedkasse (udvendigt) 100 stk Harmoniseret systemkode (HS) 84733080 Garantiperiode 2 År Andre funktioner Stik USB 3.2 C Male to C Male
