Lindy 43376 USB-kabel USB 3.2 Gen 1 (3.1 Gen 1) 10 m USB A USB C 5 Gbit/sek. Sort
Varenummer: 43376
.
DKK 3.350,00 / Stk
DKK 2.680,00 ekskl. moms
  •
Lindy 43376. Kabellængde: 10 m. Stik 1: USB A, Stik 2: USB C, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maksimal dataoverførselshastighed: 5 Gbit/sek., Stikforbindelse kontakter plettering: Nikkel, Produktfarve: Sort


Mere information

Bedst sælgende i Kabler

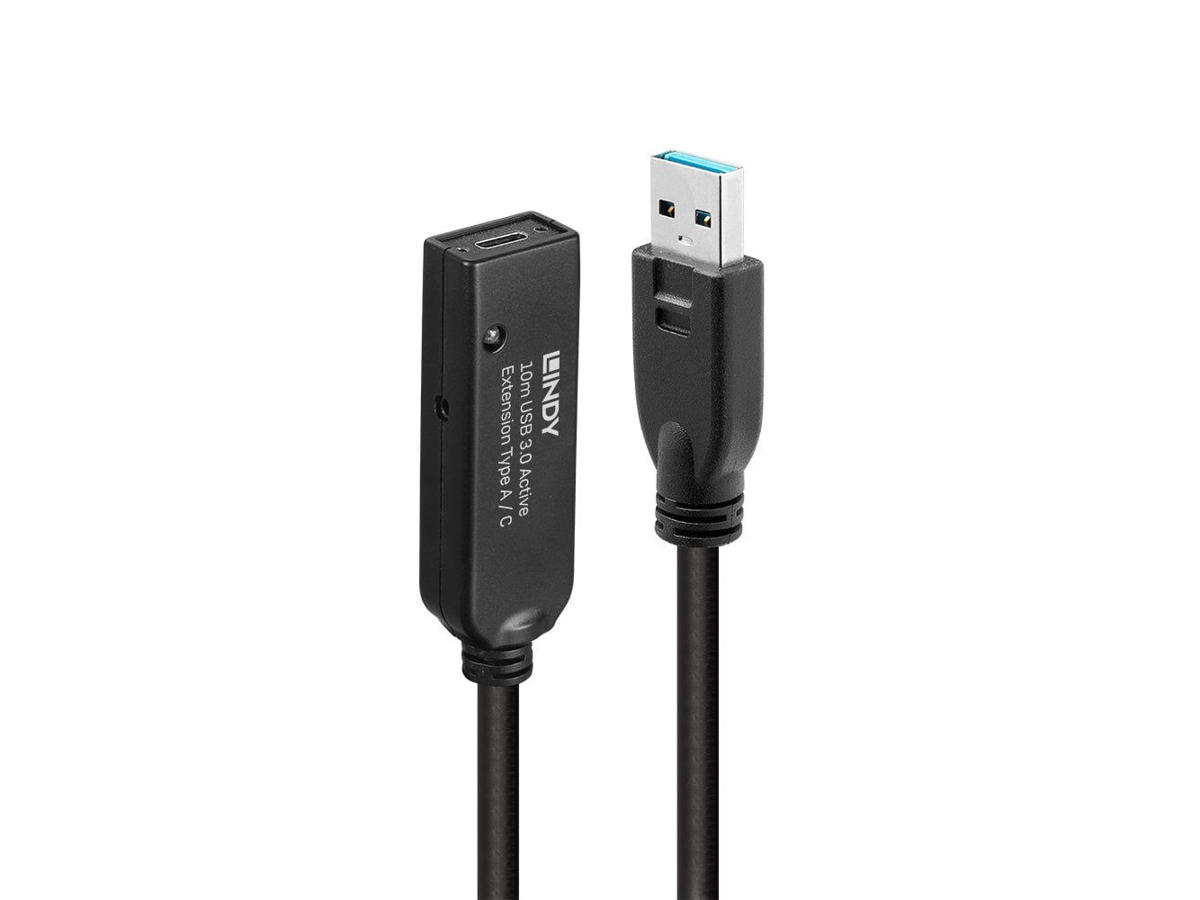

  • This Lindy 10m USB Active Extension Cable is a high performance active cable that allows access to USB Type C peripherals like webcams or storage devices over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably.

    This 10m extension cable can be used standalone or - for distances up to 38m - as part of the Lindy USB 3.0 Active Extension System Pro (No. 43157, 43158, 43229 or 43361). Please note that only No. 43157, 43158, 43229 or 43361 (depending on the maximum required distance) can be connected directly to your computer as first unit. The final part of the extension shall always be the 10m USB Type A to C Active Extension No. 43376.

    A USB to DC adapter cable for power supply is included. Usually a 5V 1A power supply of a smartphone is enough to drive the connected device.For USB devices with high power demands, such as a USB Hub or storage device, it may be necessary to connect a bigger power supply with an output voltage and amperage up to 5V 3A.

    This cable features industry-proven active technology and screw-lock connectors to ensure full signal integrity in the most demanding environments.

    Information about USB 3.0, 3.1 and 3.2

    USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

    USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.

    USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

  • Funktioner
    USB version USB 3.2 Gen 1 (3.1 Gen 1)
    Stik 1 USB A
    Stik 2 USB C
    Stik 1 køn Hanstik
    Stik 2 køn Hunstik
    Produktfarve Sort
    Stik 1 formfaktor Lige
    Stik 2 formfaktor Lige
    AWG-ledningsstørrelse 24/24/20
    Stikforbindelse kontakter plettering Nikkel
    Kabel kappemateriale Polyvinylchlorid (PVC)
    Ledningsmateriale Fortinnet kobber
    Stik afskærmning Ja
    Stik skjold materiale Aluminium
    Materiale til stikhus Plast
    Maksimal dataoverførselshastighed 5000 Mbit/s, 5 Gbit/sek.
    Kabeltype Rundt kabel
    Nominel dæmpning 0.064MHz - <0.08dB0.256MHz - <0.11dB0.512MHz - <0.13dB0.772MHz - <0.15dB1.0MHz - <0.20dB4MHz - <0.39dB8MHz - <0.57dB12MHz - <0.76dB24MHz - <0.95dB48MHz - <1.35dB96MHz - <1.90dB200MHz - <3.20dB400MHz - <5.80dB
    Strømstyring
    Effektnote 2.5/0.7mm DC Connector
    Vægt & størrelser
    Kabellængde 10 m
    Kabeldiameter 7 mm
    Bredde 22 mm
    Dybde 65,6 mm
    Højde 13,7 mm
    Vægt 800 g
    Stik 1 dimensioner (BxDxH) 15 x 49 x 8 mm
    Stik 2 dimensioner (BxDxH) 9,86 x 9,15 x 2,96 mm
    Emballeringsdata
    Pakketype Kasse
    Pakkebredde 65 mm
    Pakkedybde 235 mm
    Pakkehøjde 200 mm
    Pakkevægt 1 kg, 1000 kg
    Emballage indhold
    Antal pr. pakke 1 stk
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 50 °C
    Opbevaringstemperatur (T-T) -20 - 60 °C
    Godkendelser
    Compliance-certifikater CE, Federal Communications Commission (FCC), REACH, RoHS, TAA
    Certificering California Proposition 65
    Tekniske detaljer
    Husmateriale Plast
    Logistik data
    Produkter pr. hovedkasse (udvendigt) 10 stk
    Garantiperiode 2 År
