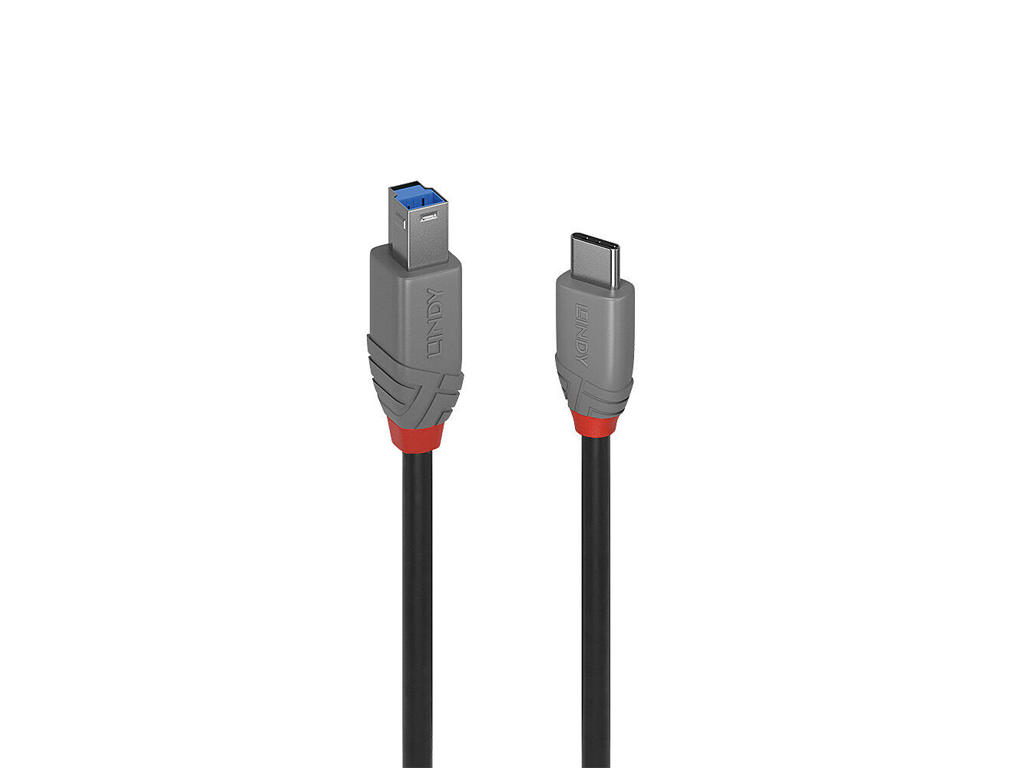

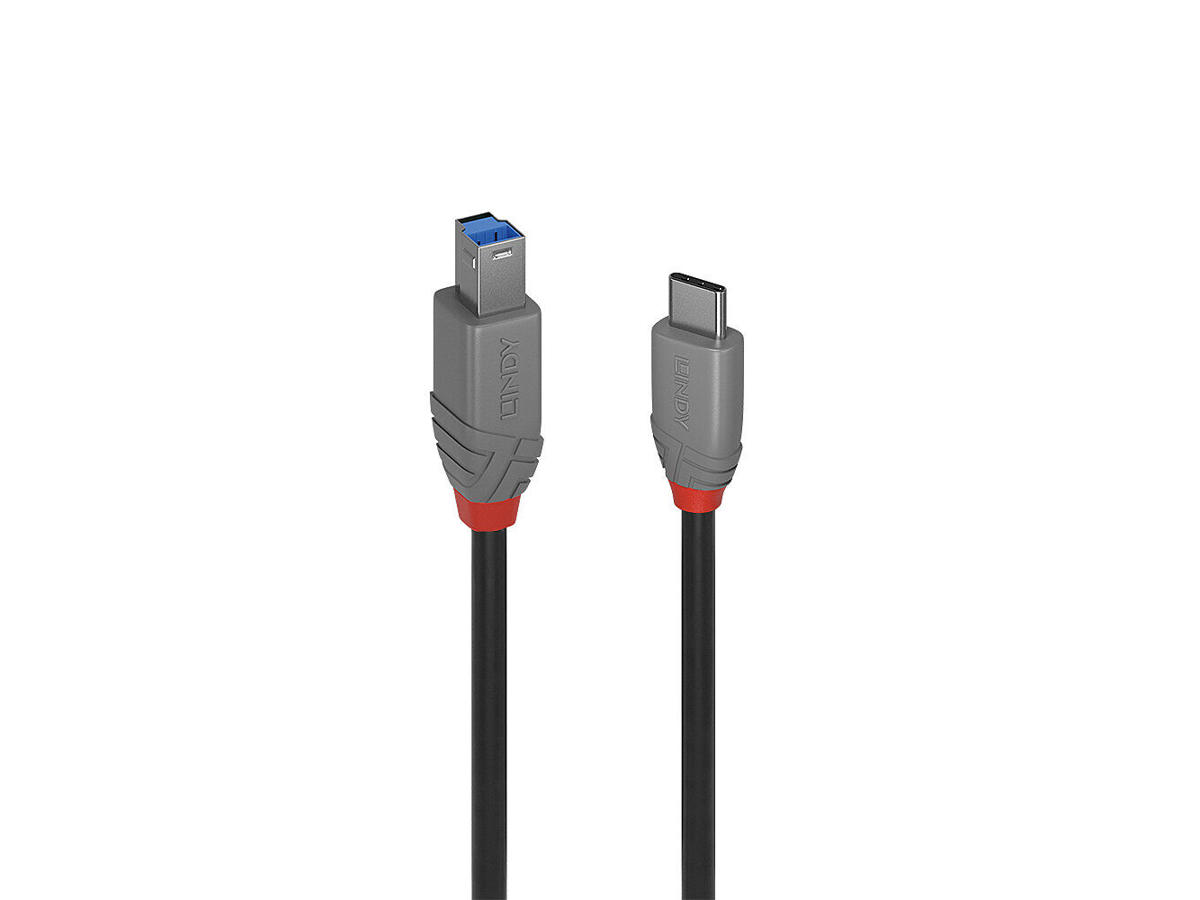

Lindy 36665 USB-kabel USB 3.2 Gen 1 (3.1 Gen 1) 0,5 m USB C USB B 5 Gbit/sek. 4,5 W Sort
Varenummer: 36665
.
DKK 136,25 / Stk
DKK 109,00 ekskl. moms
  •
Lindy 36665. Kabellængde: 0,5 m. Stik 1: USB C, Stik 2: USB B, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maksimal dataoverførselshastighed: 5 Gbit/sek., Stikforbindelse kontakter plettering: Nikkel, Produktfarve: Sort


Mere information

Bedst sælgende i Kabler
  • The Anthra Line USB 3.2 Type C to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

    They are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.

    USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.

    USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

    Anthra Line USB 3.2 Type C to B cables are available in the following lengths: 0.5m, 1m, 2m and 3m.

    Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

    USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

  • Funktioner
    USB version USB 3.2 Gen 1 (3.1 Gen 1)
    Stik 1 USB C
    Stik 2 USB B
    Stik 1 køn Hanstik
    Stik 2 køn Hanstik
    Produktfarve Sort
    Stik 1 formfaktor Lige
    Stik 2 formfaktor Lige
    AWG-ledningsstørrelse 22/30
    Stikforbindelse kontakter plettering Nikkel
    Kabel kappemateriale Nylon/polyvinylchlorid (PVC)
    Ledningsmateriale Fortinnet kobber
    Stik afskærmning Ja
    Stik skjold materiale Kobber
    Maksimal dataoverførselshastighed 500 Mbit/s, 5 Gbit/sek.
    Kabeltype Rundt kabel
    USB strømforsyning op til 4,5 W
    Nominel dæmpning 100-2500MHz < 20dB
    Strømstyring
    Udgangsspænding 5 V
    Udgangsstrøm (maks.) 0,9 A
    Vægt & størrelser
    Kabellængde 0,5 m
    Kabeldiameter 4,3 mm
    Bredde 12,2 mm
    Dybde 46 mm
    Højde 10 mm
    Bøjningsradius (min) 2,5 cm
    Stik 1 dimensioner (BxDxH) 10,8 x 32 x 7,8 mm
    Stik 2 dimensioner (BxDxH) 12,2 x 46 x 10 mm
    Emballeringsdata
    Pakketype Polybag
    Pakkebredde 144 mm
    Pakkedybde 133 mm
    Pakkehøjde 13 mm
    Emballage indhold
    Antal pr. pakke 1 stk
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 40 °C
    Opbevaringstemperatur (T-T) 0 - 70 °C
    Godkendelser
    Compliance-certifikater REACH, RoHS, UL
    Certificering RoHS, REACH, California Proposition 65, UL
    Tekniske detaljer
    Husmateriale Polyvinylchlorid (PVC)
    Logistik data
    Produkter pr. hovedkasse (udvendigt) 250 stk
    Andre funktioner
    Stik USB 3.2 C Male to B Male
