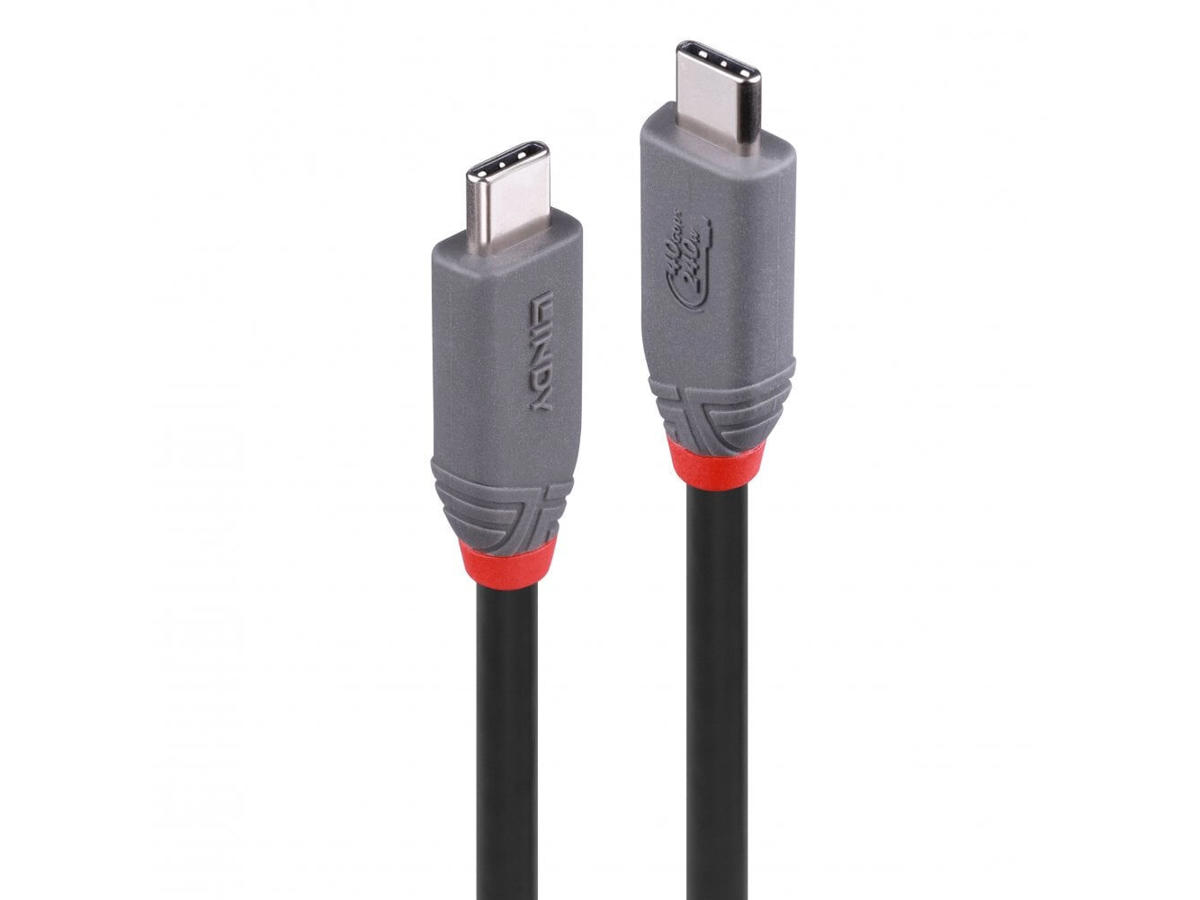

The fully-featured Anthra Line USB 4 Type C to C cable from Lindy's Cable Lines concept is the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 4 cables are premium connections that feature triple shielded construction with silver plated copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation. -
Funktioner USB version USB4 Gen 3x2 Stik 1 USB C Stik 2 USB C Stik 1 køn Hanstik Stik 2 køn Hanstik Produktfarve Sort Stik 1 formfaktor Lige Stik 2 formfaktor Lige AWG-ledningsstørrelse 23/30/34 Tilslutningsmateriale Nikkel Stikforbindelse kontakter plettering Guld Kabel kappemateriale Termoplastisk elastomer (TPE) Ledningsmateriale Kobber Stik afskærmning Ja Stik skjold materiale Kobber Maksimal dataoverførselshastighed 40000 Mbit/s, 40 Gbit/sek. Kabeltype Rundt kabel Plug and play Ja USB strømforsyning Ja USB strømforsyning revision 3.1 USB strømforsyning op til 240 W Maksimal opløsning 3840 x 2160 pixel Maksimal opdateringshastighed 60 Hz Vægt & størrelser Kabellængde 1,5 m Kabeldiameter 4,8 mm Bøjningsradius (min) 2,88 cm Stik 1 dimensioner (BxDxH) 30 x 12,4 x 6,5 mm Stik 2 dimensioner (BxDxH) 30 x 12,4 x 6,5 mm Emballage indhold Antal pr. pakke 1 stk Bæredygtighed Bæredygtighedscertifikater UL ECOLOGO Overholdelse af bæredygtighed Ja Driftsbetingelser Driftstemperatur (T-T) -20 - 40 °C Opbevaringstemperatur (T-T) -40 - 80 °C Godkendelser FN-nummer ` Compliance-certifikater REACH, RoHS Certificering RoHS, REACH, California Proposition 65 & UL Logistik data Garantiperiode 2 År
