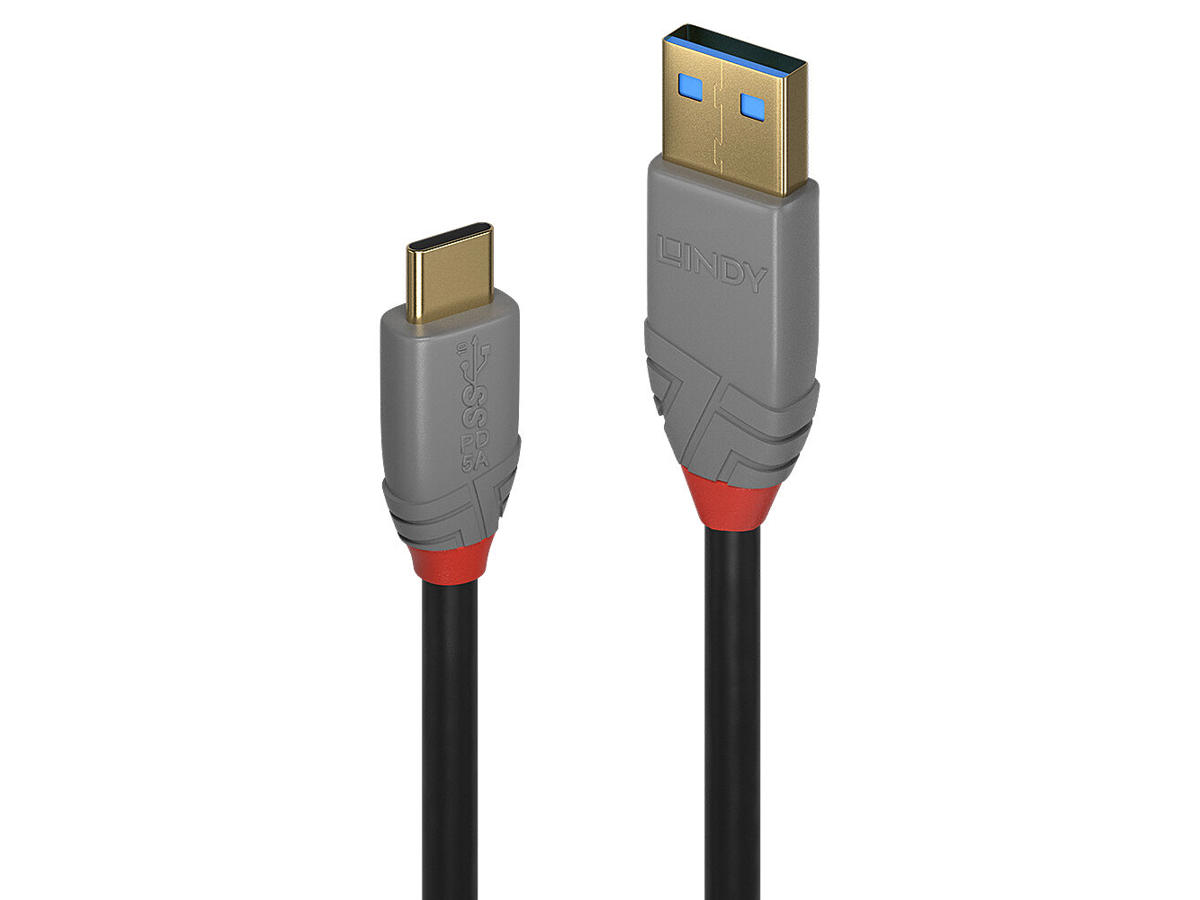

The Anthra Line USB 3.2 Type A to C, 5A, cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (5A) of power to devices using the most efficient power delivery profiles.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type A to C, 5A cables are available in the following lengths: 0.5m, 1m and 1.5m.
Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface. -
Funktioner USB version USB 3.2 Gen 2 (3.1 Gen 2) Stik 1 USB C Stik 2 USB A Stik 1 køn Hanstik Stik 2 køn Hanstik Produktfarve Sort, Grå Stik 1 formfaktor Lige Stik 2 formfaktor Lige AWG-ledningsstørrelse 24/30/32 Tilslutningsmateriale Guld Kontaktmateriale Fosforbronze Stikforbindelse kontakter plettering Guld Magnetisk afskærmet Ja Kabel kappemateriale Polyvinylchlorid (PVC) Ledningsmateriale Fortinnet kobber Stik afskærmning Ja Stik skjold materiale Kobber Materiale til stikhus Polyvinylchlorid (PVC) Maksimal dataoverførselshastighed 10000 Mbit/s, 10 Gbit/sek. Kabeltype Rundt kabel Nominel dæmpning 0.5Mhz €“ 15Ghz 40db Vægt & størrelser Kabellængde 1,5 m Kabeldiameter 4,5 mm Bøjningsradius (min) 4,5 cm Stik 1 dimensioner (BxDxH) 15,5 x 35 x 7,8 mm Stik 2 dimensioner (BxDxH) 12,7 x 30,8 x 7,3 mm Emballeringsdata Pakketype Polybag Emballage indhold Antal pr. pakke 1 stk Driftsbetingelser Driftstemperatur (T-T) -20 - 80 °C Opbevaringstemperatur (T-T) -25 - 85 °C Godkendelser Certificering RoHS, REACH, UL Logistik data Harmoniseret systemkode (HS) 84733080
