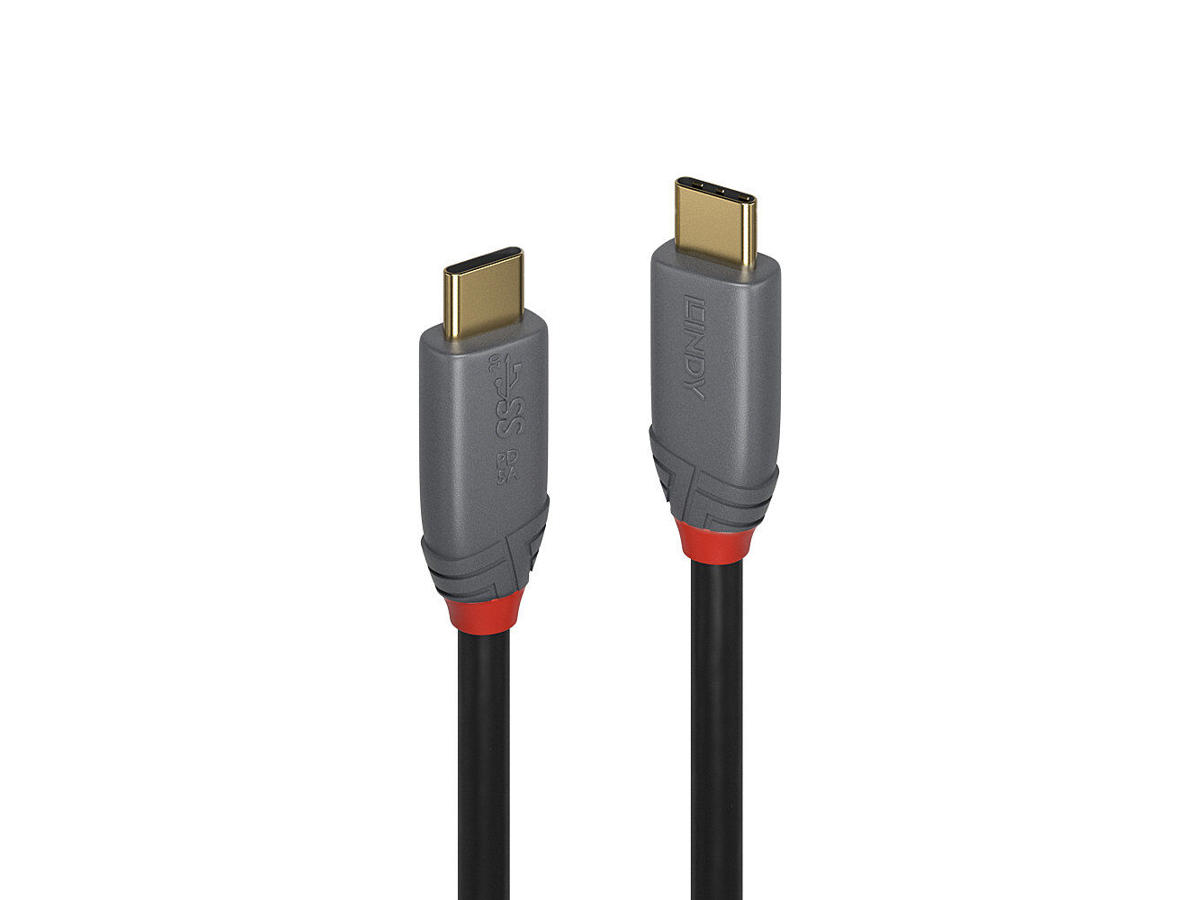

Lindy 36900 USB-kabel USB 3.2 Gen 2x2 0,5 m USB C 20 Gbit/sek. 100 W Sort
Varenummer: 36900
.
DKK 400,00 / Stk
DKK 320,00 ekskl. moms
  •
Lindy 36900. Kabellængde: 0,5 m. Stik 1: USB C, Stik 2: USB C, USB version: USB 3.2 Gen 2x2, Maksimal dataoverførselshastighed: 20 Gbit/sek., Stikforbindelse kontakter plettering: Guld, Produktfarve: Sort


Mere information

Bedst sælgende i Kabler
  • The Anthra Line USB 3.2 Type C to C, 5A, cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

    Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

    USB bandwidths up to 20Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (5A) of power to devices using the most efficient power delivery profiles. The cable supports DisplayPort Alternate mode at max. 4K 60Hz.

    USB Type C features a new reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

    Anthra Line USB 3.2 Type C to C, 5A cables are available in the following lengths: 0.5m, 1m and 1.5m.

    Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

    USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

  • Funktioner
    USB version USB 3.2 Gen 2x2
    Stik 1 USB C
    Stik 2 USB C
    Stik 1 køn Hanstik
    Stik 2 køn Hanstik
    Produktfarve Sort
    Stik 1 formfaktor Lige
    Stik 2 formfaktor Lige
    AWG-ledningsstørrelse 24/30/32
    Stikforbindelse kontakter plettering Guld
    Kabel kappemateriale Polyvinylchlorid (PVC)
    Ledningsmateriale Fortinnet kobber
    Stik skjold materiale Kobber
    Maksimal dataoverførselshastighed 10000 Mbit/s, 20 Gbit/sek.
    Kabelfarve Sort
    USB strømforsyning Ja
    USB strømforsyning revision 3.0
    USB strømforsyning op til 100 W
    Nominel dæmpning 0.5Mhz-15Ghz < 40dB
    Strømstyring
    Udgangsspænding 20 V
    Udgangsstrøm (maks.) 5 A
    Vægt & størrelser
    Kabellængde 0,5 m
    Kabeldiameter 4,8 mm
    Bredde 12,7 mm
    Dybde 30,8 mm
    Højde 7,3 mm
    Emballeringsdata
    Pakketype Polybag
    Pakkebredde 144 mm
    Pakkedybde 133 mm
    Pakkehøjde 10 mm
    Emballage indhold
    Antal pr. pakke 1 stk
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 40 °C
    Opbevaringstemperatur (T-T) 0 - 70 °C
    Godkendelser
    Compliance-certifikater REACH, RoHS, UL
    Certificering REACH, UL
    Tekniske detaljer
    Husmateriale Polyvinylchlorid (PVC)
    Replacement item number 41900
    Logistik data
    Produkter pr. hovedkasse (udvendigt) 100 stk
    Harmoniseret systemkode (HS) 84733080
    Andre funktioner
    Stik USB 3.2 C Male to C Male
