Driving Up Capacity and Driving Down TCO for Cloud and Hyperscale Data Centers

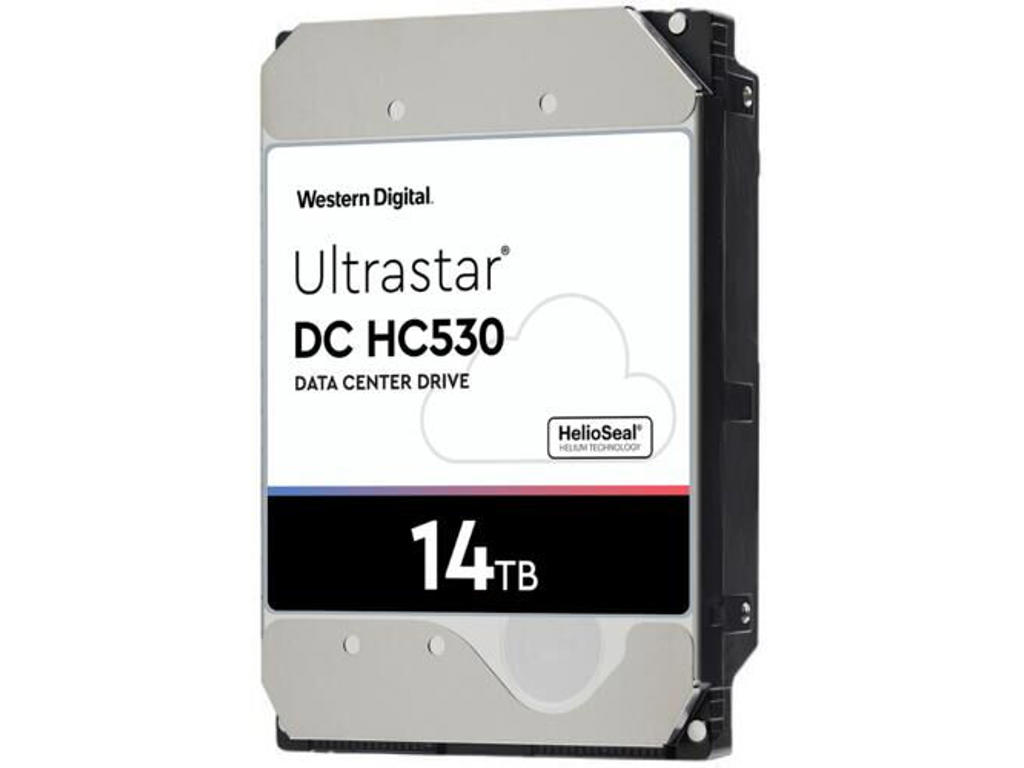

The breadth and depth of Big Data is driving the universal need for higher capacities across a broad spectrum of applications and workloads. Laying the foundation for a worry-free data center, Western Digital delivers the capacity to conquer the data explosion with the Ultrastar DC HC500 series of hard drives. Built using HelioSeal technology, the industry’s only fifth-generation helium platform, the DC HC500 series is designed for public and private cloud environments, where storage density, Watts/TB and $/TB are critical for creating the most cost-efficient infrastructure. HelioSeal technology is key to achieving higher drive capacities, greater reliability ratings and extreme power efficiency. The result is a lower Total Cost of Ownership (TCO) for our cloud and enterprise customers.
High Capacity
Up to 14TB HDDs, drop-in ready for Big Data workloads
Low Power
Up to 58% lower idle W/TB than 8TB Ultrastar air-filled drives
More Reliable
25% higher MTBF rating than air-filled HDDs
| Funktioner | |
| HDD kapacitet | 14 TB |
| HDD hastighed | 7200 rpm |
| HDD-størrelse | 3.5" |
| Grænseflade | Serial ATA III |
| Type | HDD |
| Komponent til | Server/arbejdsplads |
| Lagringsdrev buffer størrelse | 512 MB |
| Overførselshastighed for HDD-grænseflade | 6 Gbit/sek. |
| HDD vedvarende overførselshastighed | 255 MiB/s |
| Harddiskens gennemsnitlig overførselshastighed | 600 MB/s |
| Gennemsnitlig ventetid | 4,16 ms |
| 24/7 drift | Ja |
| Start/stop-cyklusser | 600000 |
| Gennemsnitstid mellem fejl (MTBF) | 2500000 t |
| Strømstyring | |
| Strømforbrug (typisk) | 6 W |
| Strømforbrug (inaktiv) | 5,5 W |
| Driftsspænding | 5 / 12 V |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 5 - 60 °C |
| Opbevaringstemperatur (T-T) | -40 - 70 °C |
| Driftsvibrationer | 0,67 G |
| Ikke-drift vibration | 1,04 G |
| Stød under drift | 70 G |
| Ikke-drift stød | 300 G |
| Emballage indhold | |
| Lagerdisk adapter inkluderet | Ingen |
| Vægt & størrelser | |
| Bredde | 101,6 mm |
| Højde | 26,1 mm |
| Dybde | 147 mm |
| Vægt | 690 g |
| Emballeringsdata | |
| Antal pr. pakke | 1 stk |
| Logistik data | |
| Harmoniseret systemkode (HS) | 84717050 |
