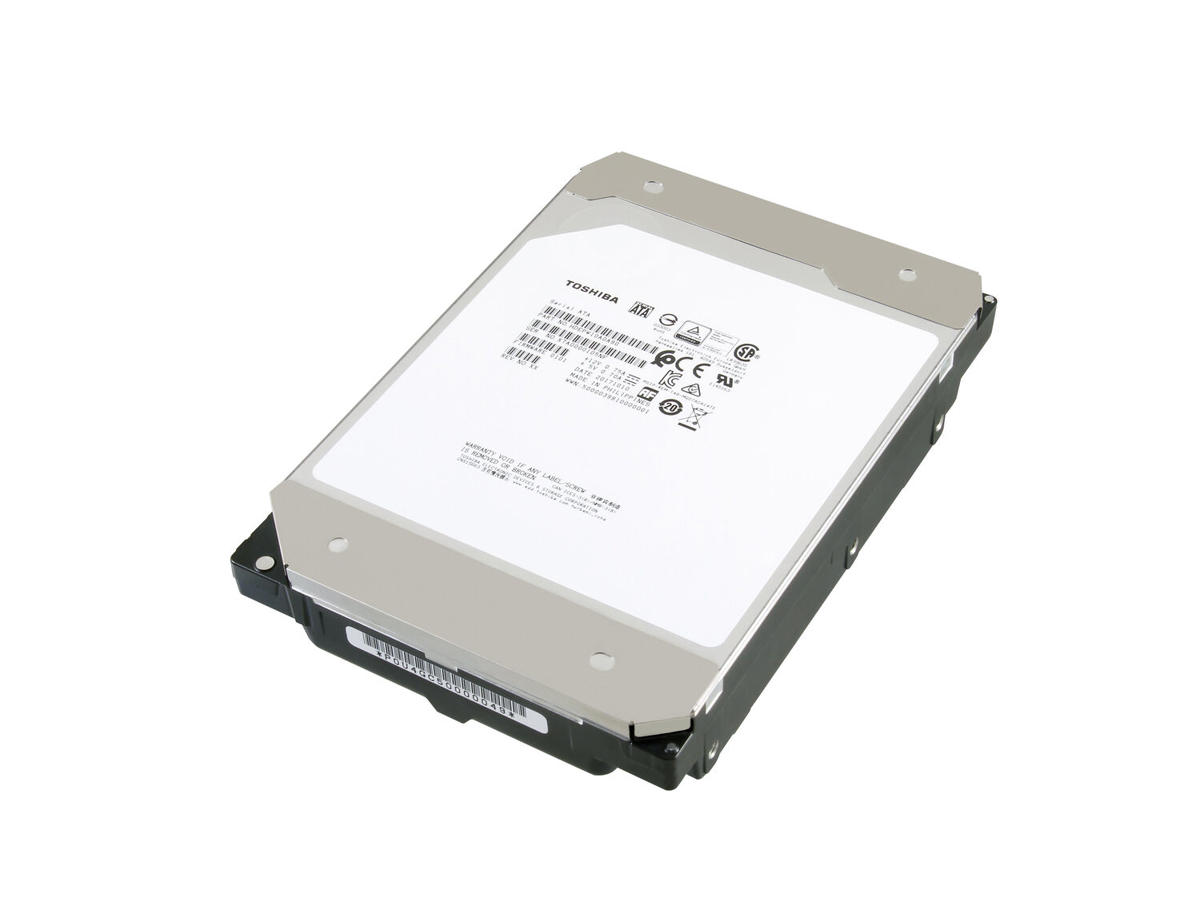

Using the world’s first 9-disk Helium-sealed design, the MG07ACA Enterprise Capacity SATA HDD provides up to 14TB of conventional magnetic recording (CMR) capacity and 7,200 rpm performance. The industry-standard 3.5-inch form-factor integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.
The MG07ACA Series utilizes Toshiba precision laser welding technology to seal helium inside the 9-disk mechanics for the life of the drive. The helium-sealed design reduces aerodynamic drag to deliver a lower operational power profile, helping to achieve TCO objectives for cloud-scale and software-defined data center infrastructure.
The massive 14TB and 12TB model capacity is delivered using proven CMR/PRM recording technologies providing optimum compatibility and data reliability. Equipped with SATA 6.0 Gbit/s interface, the MG07ACA models integrate easily into standard 3.5-inch SATA drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, and business critical servers and storage systems.
| Funktioner | |
| HDD kapacitet | 14 TB |
| HDD hastighed | 7200 rpm |
| HDD-størrelse | 3.5" |
| Grænseflade | SATA |
| Type | HDD |
| Lagringsdrev buffer størrelse | 256 MB |
| Overførselshastighed for HDD-grænseflade | 6 Gbit/sek. |
| HDD vedvarende overførselshastighed | 248 MiB/s |
| Arbejdsbelastningsgrænse | 550 TB/år |
| Gennemsnitstid mellem fejl (MTBF) | 2500000 t |
| Strømstyring | |
| Strømforbrug (typisk) | 4,22 W |
| Strømforbrug (læse) | 7,8 W |
| Driftsspænding | 5 / 12 V |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 5 - 55 °C |
| Opbevaringstemperatur (T-T) | -40 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 - 90% |
| Relativ luftfugtighed ved opbevaring (H-H) | 5 - 95% |
| Driftsvibrationer | 0,75 G |
| Ikke-drift vibration | 3 G |
| Driftshøjde | -305 - 3048 m |
| Ikke-drift højde | -305 - 12192 m |
| Stød under drift | 70 G |
| Ikke-drift stød | 250 G |
| Vægt & størrelser | |
| Bredde | 101,8 mm |
| Højde | 26,1 mm |
| Dybde | 147 mm |
| Vægt | 720 g |
| Logistik data | |
| Harmoniseret systemkode (HS) | 84717050 |
